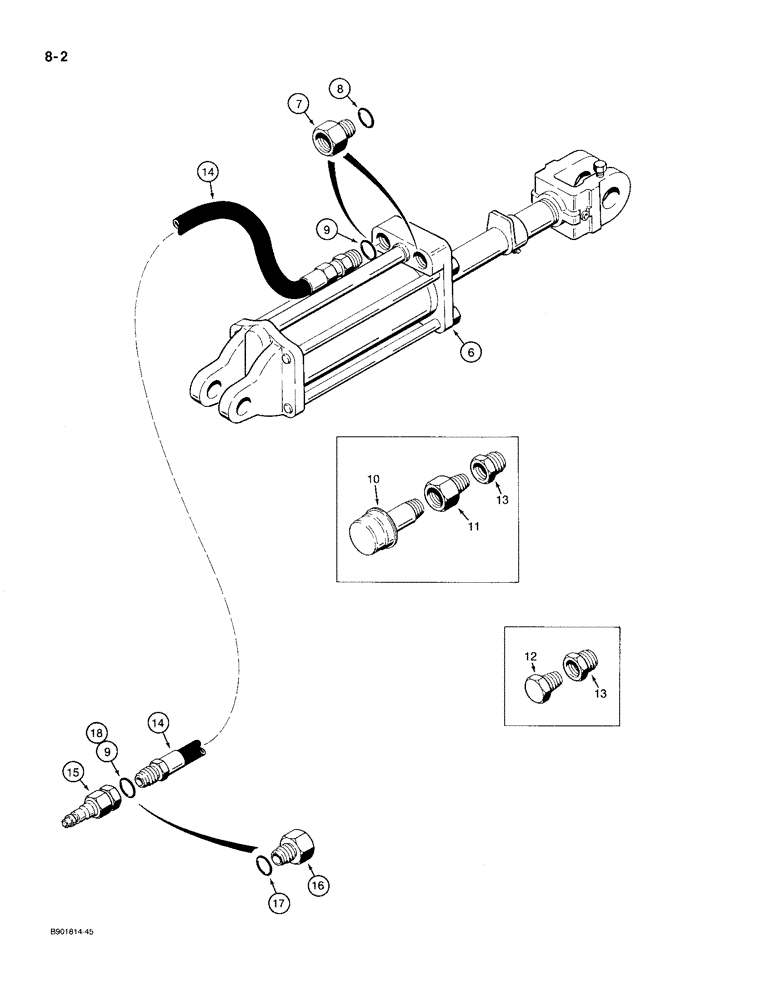

Запчасти Case IH 1100 (8-02) - HYDRAULIC EQUIPMENT, HYDRAULIC CYLINDERS AND COUPLERS, 1100 MOWER (08) - HYDRAULICS

1

381832R93

CYLINDER BLOCK

CYLINDER ASSEMBLY - 2 ID x 8 inch stroke, 7/8-14 inch port, welded single acting, not shown, see parts list page 8-5

1шт.

2

381833R93

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2 ID x 8 inch stroke, 7/8-14 inch port, welded double acting, not shown, see parts list page 8-7

1шт.

Either Ref. 10 breather or Ref. 12 short pressure relief valve may be used with Ref. 2 through 6 double acting cylinders.

1шт.

3

371291R97

CYLINDER

ASSEMBLY - 2-1/2 ID x 8 inch stroke, 7/8-14 inch port, not shown, see parts list page 8-9, no longer available, order item 4, 145353C91, cylinder, (2) item 7, 1252129C1, adapters, and (2) item 8, 237-6008, O-rings

1шт.

Either Ref. 10 breather or Ref. 12 short pressure relief valve may be used with Ref. 2 through 6 double acting cylinders.

1шт.

4

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 2-1/2 ID x 8 inch stroke, 3/4-16 inch port, not shown, see parts list page 8-11

1шт.

Either Ref. 10 breather or Ref. 12 short pressure relief valve may be used with Ref. 2 through 6 double acting cylinders.

1шт.

5

371292R95

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke, 7/8-14 inch port, not shown, see parts list page 8-13, no longer available, order item 6, 1263474C91, cylinder, (2) item 7, 1252129C1, adapters, and (2) item 8, 237-6008, O-rings

1шт.

Either Ref. 10 breather or Ref. 12 short pressure relief valve may be used with Ref. 2 through 6 double acting cylinders.

1шт.

6

1263474C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2 ID x 8 inch stroke, 3/4-16 inch port, parts list page 8-15

1шт.

Either Ref. 10 breather or Ref. 12 short pressure relief valve may be used with Ref. 2 through 6 double acting cylinders.

1шт.

7

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - 3/4-16 male x 7/8-14 inch female O-ring boss, use on cylinders with 3/4-16 inch ports

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, If used

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

3шт.

10

60836H

BREATHER

- cylinder, requires items 11 and 13 adapters, if used

1шт.

11

217-5

ADAPTER,1/4"-18 Fem NPTF x 1/8"-27 NPTF Male

- straight, 1/4 PT x 1/8 inch PT

1шт.

12

106671

LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief

VALVE - relief, short pressure, requires item 13 adapter, if used

1шт.

13

1272850C1

ADAPTER

- special, straight, 1/8 PT x 7/8-14 inch O-ring

1шт.

14

461166R91

HOSE ASSY.

HOSE - 100 inch long

1шт.

15

395149R1

QUICK MALE COUPLING

COUPLER - male, 7/8-14 inch thread, poppet type

1шт.

The male hydraulic couplers and adapter, Ref. 15 and 16, are available to match female couplers on the tractor.

1шт.

15

1341843C1

QUICK MALE COUPLING

COUPLER - male, 7/8-14 inch thread

1шт.

The male hydraulic couplers and adapter, Ref. 15 and 16, are available to match female couplers on the tractor.

1шт.

15

544787R91

COUPLING, BREAK AWAY

COUPLER - male, 7/8-14 inch thread, self sealing

1шт.

The male hydraulic couplers and adapter, Ref. 15 and 16, are available to match female couplers on the tractor.

1шт.

15

1272399C2

QUICK MALE COUPLING

COUPLER - male, 7/8-14 inch thread, self sealing (ISO Standard)

1шт.

The male hydraulic couplers and adapter, Ref. 15 and 16, are available to match female couplers on the tractor.

1шт.

15

1285718C2

QUICK MALE COUPLING

COUPLER - male, 3/4-16 inch thread, self sealing (ISO Standard), uses item 16 adapter

1шт.

The male hydraulic couplers and adapter, Ref. 15 and 16, are available to match female couplers on the tractor.

1шт.

16

218-5262

ELEC CONNECTOR

ADAPTER - straight, 3/4-16 O-ring x 7/8-14 inch fem O-ring, if used

1шт.

The male hydraulic couplers and adapter, Ref. 15 and 16, are available to match female couplers on the tractor.

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
