Запчасти Case IH 1100 (9-76) - DECALS (09) - CHASSIS/ATTACHMENTS

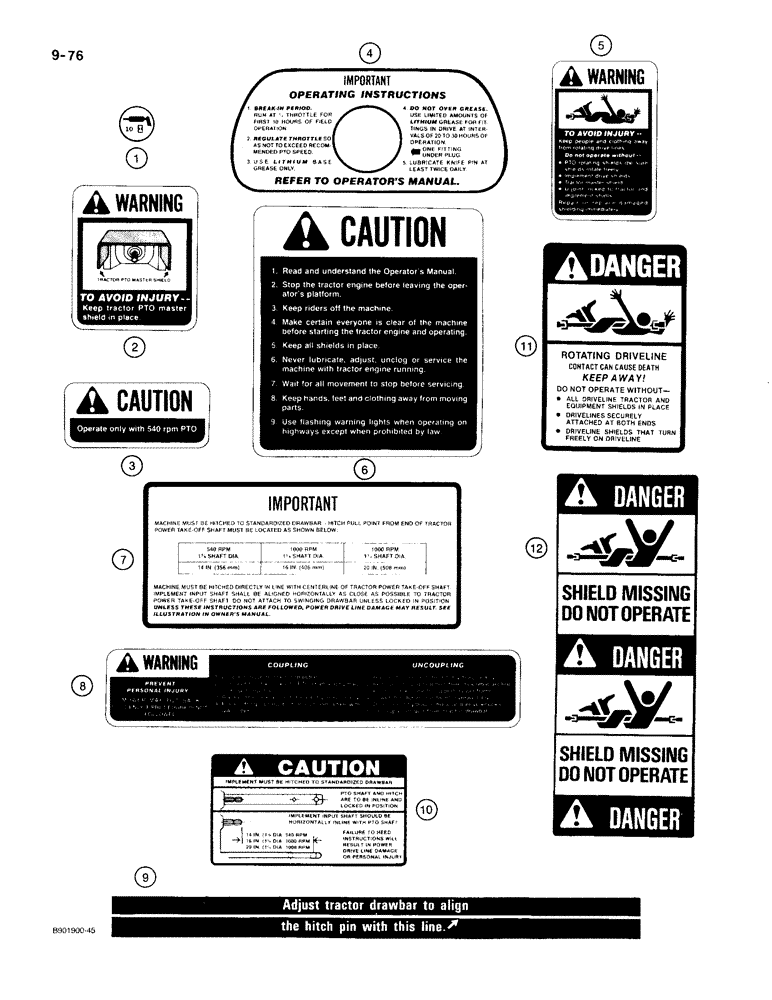

Схема запчастей Case IH 1100 - (9-76) - DECALS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1265857C91

PACKAGE

KIT - decal, hitch instructions, replaces 489632R94 and 489633R92 decal kit

1шт.

1

1960563C1

DECAL

- grease instructions

1шт.

2

96335C1

PRODUCT GRAPHIC

DECAL - Warning, to avoid injury keep tractor PTO

1шт.

3

ZA14839

DECAL

- Caution, operate only with 540 RPM PTO

1шт.

4

2750687R3

DECAL

- Important, operating instructions

1шт.

5

1336832C1

PRODUCT GRAPHIC

DECAL - Warning, to avoid injury keep people and clothing

1шт.

6

96327C1

PRODUCT GRAPHIC

DECAL - Caution, read and understand

1шт.

7

NSS

NOT SOLD SEPARAT

DECAL - Important, machine must be hitched

1шт.

8

1251044C2

PRODUCT GRAPHIC

DECAL - Warning, coupling, prevent personal injury, 1100 mower

1шт.

9

1253795C1

DECAL

- Adjust tractor drawbar

1шт.

10

202913C1

PRODUCT GRAPHIC

DECAL - Caution, implement must be hitched

1шт.

11

700707960

DECAL

- Danger, rotating driveline

1шт.

12

1326528C1

DECAL

- Danger, shield missing

1-2шт.

13

1334065C91

KIT - decal, French, not shown

1шт.

Выбрано товаров: 14
