Запчасти Case IH 1100 (9-68) - TRANSPORT, 9 FOOT CUTTER BAR (09) - CHASSIS/ATTACHMENTS

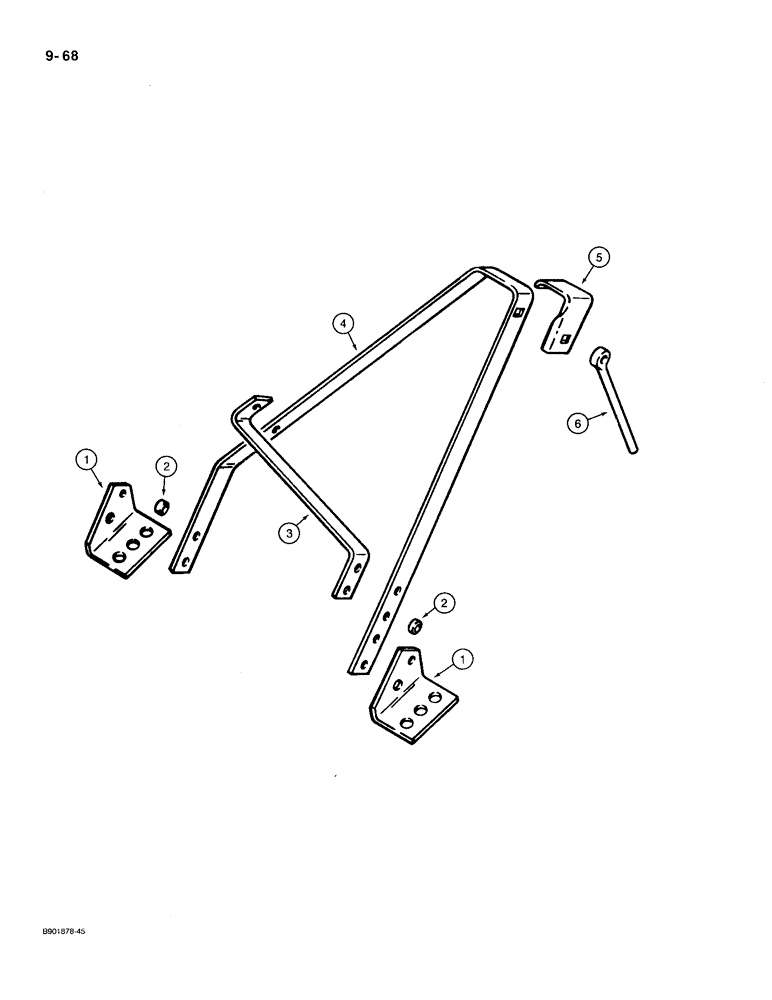

Схема запчастей Case IH 1100 - (9-68) - TRANSPORT, 9 FOOT CUTTER BAR (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

463186R2

SUPPORT

BRACKET - transport stand

2шт.

495-81176

WASHER,21/32" x 1" x .060"

- flat, 21/32 x 1 x 3/64 inch

2шт.

2

950019R1

SPACER

- transport stand

2шт.

3

463187R1

SUPPORT

BRACE - transport stand

1шт.

4

463185R1

STAND

- transport

1шт.

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

- hex, 1/2 NC x 1-3/8 inch

2шт.

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1 x 7/64 inch

2шт.

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

4шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

492-11038

LOCK WASHER,3/8"

3шт.

425-106

NUT,3/8"-16, Cl 5

3шт.

22443R1

BOLT,Sq Nk, 1/2" - 13 x 1 1/2"

- hex, 1/2 NC x 1-1/2 inch

1шт.

22073R1

PIN - clevis, 1/2 x 7/8 inch 1/2" x 7/8"

1шт.

586591R1

COTTER PIN

PIN - hair, 1/8 inch

1шт.

5

463188R1

SUPPORT

CLIP - transport stand

1шт.

6

463189R1

ROD

HANDLE - support

1шт.

Выбрано товаров: 16
