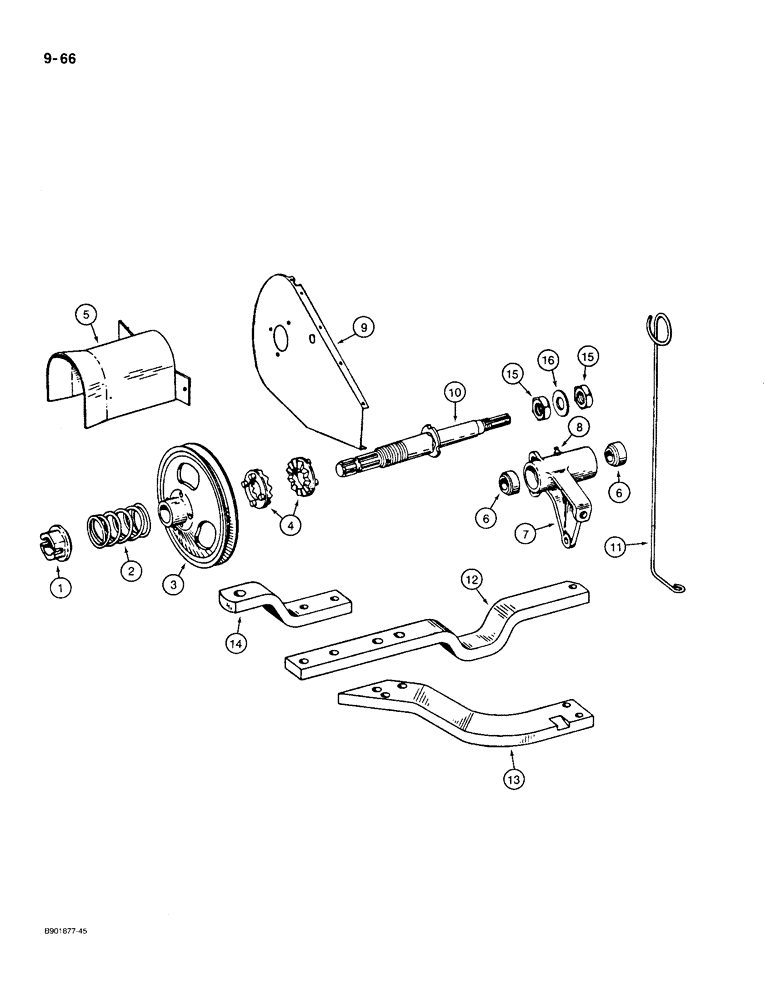

Запчасти Case IH 1100 (9-66) - HITCH PARTS, FOR USE WITH HAY CONDITIONER, 1100 MOWER (09) - CHASSIS/ATTACHMENTS

1

M2574

NUT

- slip clutch

1шт.

2

M32816

SPRING

- slip clutch

1шт.

3

M2571

PULLEY

- slip clutch drive

1шт.

4

B12170

RATCHET,Clutch Slip, 94.49mm

- slip clutch

2шт.

5

489835R1

SHIELD

- conditioner drive

1шт.

137952

SUPPORT

SCREW - machine, slotted truss head, 1/4 NC x 3/8 inch

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

6

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

- cone and seal, drive shaft roller

2шт.

7

462836R3

HUB

HOUSING - drive shaft

1шт.

8

219-30

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

9

489491R1

SHIELD

COVER - drive shield

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

10

471945R11

SHAFT

- conditioner drive

1шт.

22963R1

HEADED PIN,5/16" x 2 1/4"

PIN - clevis, 5/16 x 2-1/4 inch

1шт.

138-2029

PIN,7.92mm OD x 63.5mm L, Coiled

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

PO27165

WASHER - flat, 1-9/32 x 1-23/32 x 1/8 inch

1шт.

11

464962R1

SUPPORT

- hydraulic hose

1шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

1шт.

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

20511R1

WASHER - lock, 5/8 inch

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

12

464958R1

DRAWBAR - hitch

1шт.

414-1072

BOLT,Hex, 5/8" - 18 x 4-1/2", Gr 5

- hex, 5/8 NF x 4-1/2 inch

1шт.

144423H

LOCK NUT,5/8" - 18, GC

NUT, LOCK, 5/8"-18, GC

1шт.

131-13

LOCK NUT,5/8"-18, GB

NUT - hex light, self-locking, 5/8 inch NF

1шт.

13

462835R1

SUPPORT - drawbar

1шт.

414-1252

BOLT - hex, 3/4 NF x 3-1/4 inch

1шт.

21101R1

WASHER - 25/32 x 2-1/4 inch x 11 gauge

2шт.

131-225

LOCK NUT,3/4"-16

NUT - hex, self-locking, 3/4 inch NF

1шт.

14

464959R1

BRACKET - drawbar

1шт.

414-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- hex, 5/8 NF x 3 inch

2шт.

144423H

LOCK NUT,5/8" - 18, GC

NUT, LOCK, 5/8"-18, GC

2шт.

131-13

LOCK NUT,5/8"-18, GB

NUT - hex light, self-locking, 5/8 inch NF

2шт.

15

133613H

NUT

- hex, 1-1/4 inch NF

2шт.

16

471946R1

WASHER

- flat, 1-1/32 x 1-9/32 x 2-1/2 inch

1шт.
