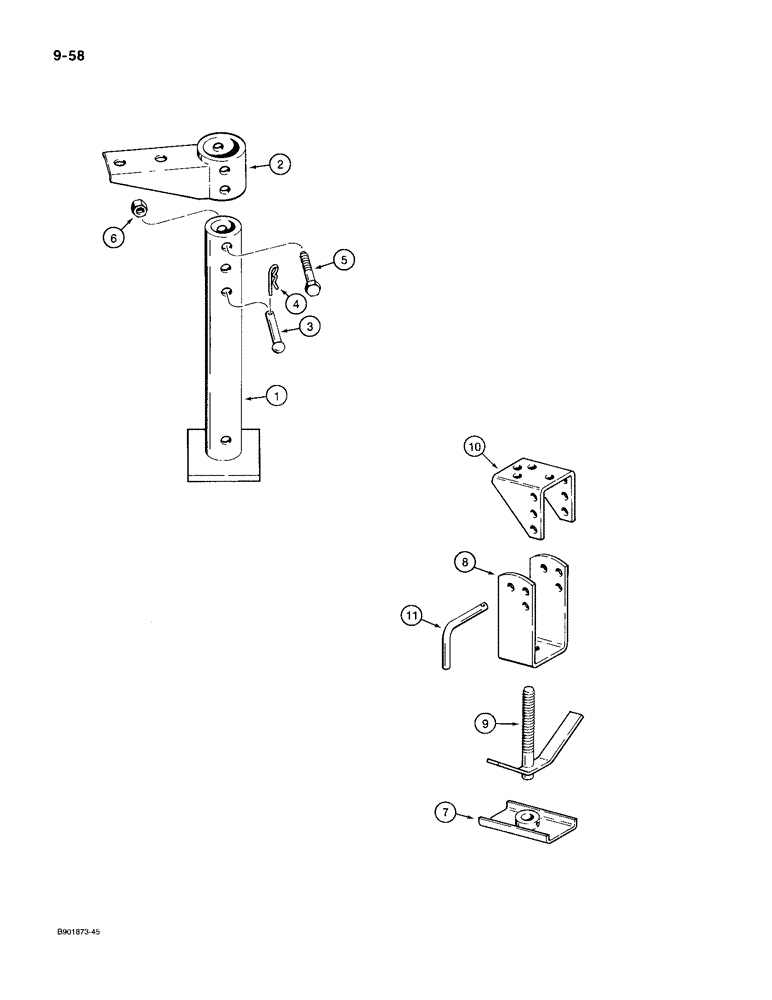

Запчасти Case IH 1100 (9-58) - JACK STAND UNIT, 1100 MOWER (09) - CHASSIS/ATTACHMENTS

1

1256684C1

STAND

- jack

1шт.

2

1256685C1

SUPPORT

- jack stand

1шт.

3

1256686C1

PIN

- support

1шт.

4

486830R1

COTTER PIN

PIN - hair, internal type, special

1шт.

5

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

7

460379R11

BASE - jack stand attachment

1шт.

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, , jack attachment 1/4" x 1 1/4", Slotted

1шт.

8

489526R1

SUPPORT - jack attachment

1шт.

9

489511R1

SCREW - special, jack attachment

1шт.

10

489505R1

BRACKET - jack attachment

1шт.

22636R1

BOLT - hex, 5/8 NC x 5-1/2 inch, drilled, jack attachment

1шт.

425-1210

SLOTTED NUT,Hex, 5/8"-11, G5

Jack attachment Hex, 5/8"-11, G5

1шт.

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2", Jack attachment

1шт.

11

465227R1

ROD

PIN - lock, special, jack attachment

1шт.

520175R1

CLIP

PIN - hair, 3/16 inch, special, jack attachment

1шт.
