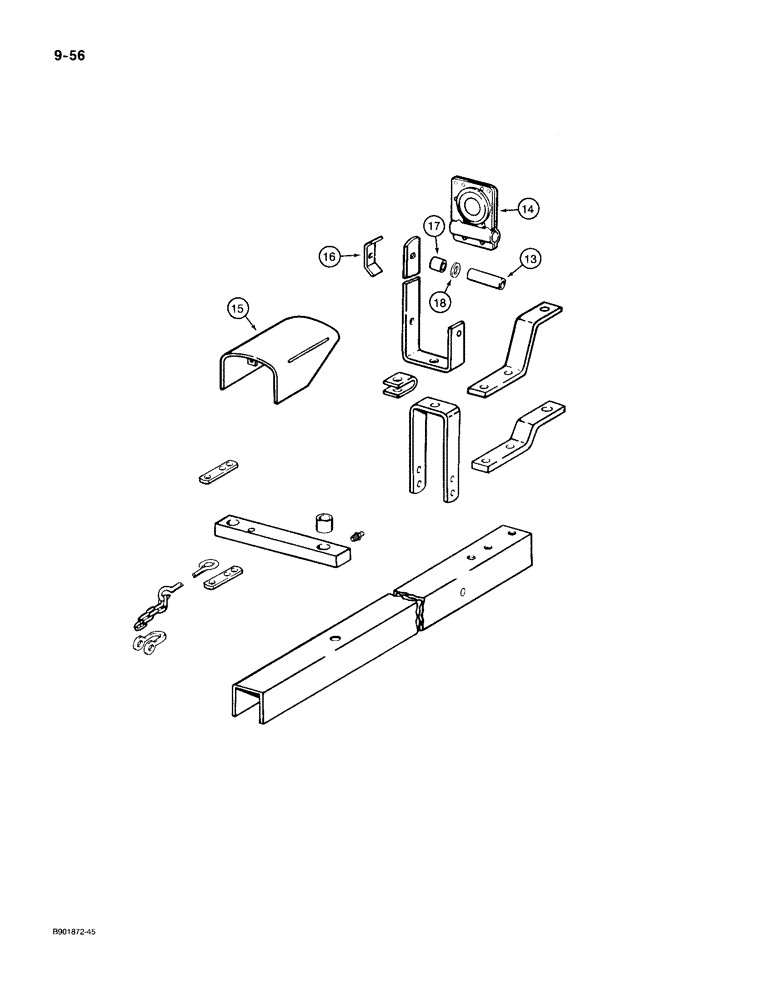

Запчасти Case IH 1100 (9-56) - HITCH AND TONGUE/HYDRAULIC CYLINDER ATTACHING PARTS, 1100 MOWER (09) - CHASSIS/ATTACHMENTS

13

463580R1

SPACER,1/2" Pipe x 4.109"

- 1/2 x 4-7/64 inch

1шт.

14

ST669

BEARING ASSY,35mm ID

BEARING - PTO shaft pedestal

1шт.

15

489515R2

SHIELD

- 5-11/64 inch wide, PTO front, prior to SN 30240

1шт.

15

ZA521061

SHIELD

- 7-11/16 inch wide, PTO front, SN 30240 and after

1шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

16

481133R1

SUPPORT

CLAMP - hydraulic hose

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- carriage, 3/8 NC x 2 inch

1шт.

27454R1

BOLT

BOLT - carriage, 3/8 NC x 3-1/4 inch, with hay conditioner

1шт.

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

17

617794R1

SPACER,13.5mm ID x 19.05mm OD x 27mm L

- 17/32 x 1-1/16 inch, SN 30240 and after

1шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, S/N 30240 and after

1шт.
