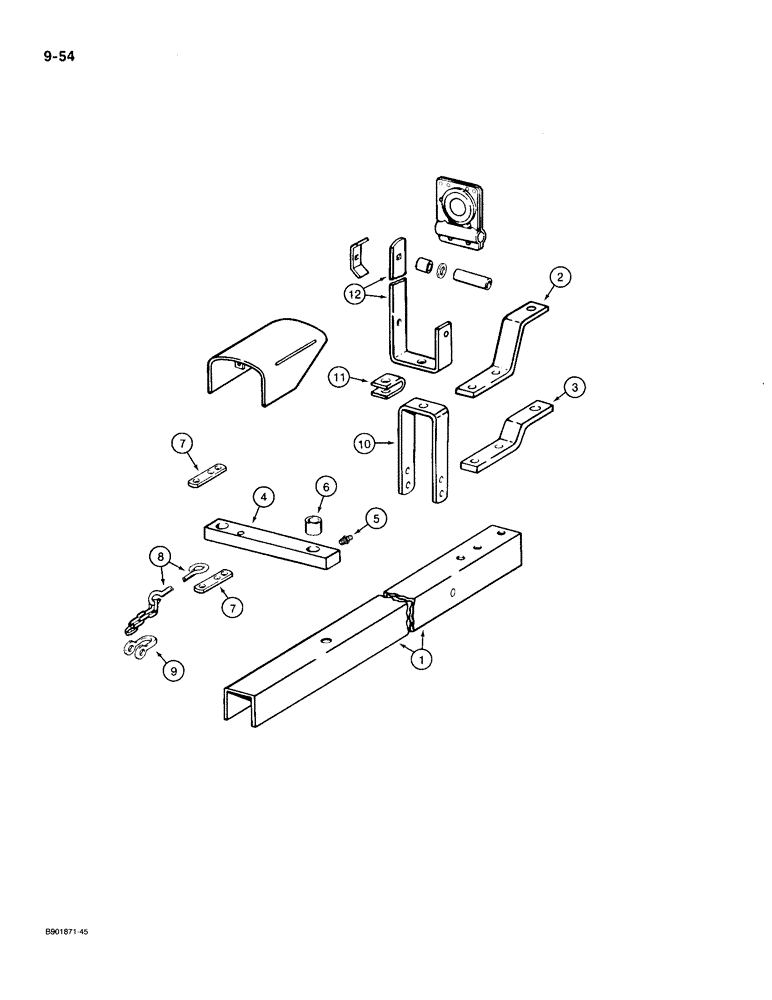

Запчасти Case IH 1100 (9-54) - HITCH AND TONGUE/HYDRAULIC CYLINDER ATTACHING PARTS, 1100 MOWER (09) - CHASSIS/ATTACHMENTS

1

222688C91

TOW BAR

TONGUE - trailing hitch, (replaces tongue 489506R2)

1шт.

1251044C2

PRODUCT GRAPHIC

DECAL - Warning, shown on page 9-77, item 8

1шт.

See Figure 9-76 for additional decals.

1шт.

2

489513R1

SUPPORT

- tongue, upper

1шт.

3

489514R1

SUPPORT

- tongue, lower

1шт.

424-1036

BOLT - hex, 5/8 NC x 2-1/4 inch, grade 2

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

4

489525R1

BAR

- hydraulic cylinder

1шт.

424-12100

BOLT,Hex, 3/4" - 10 x 6-1/4", Gr 2

- hex, 3/4 NC x 6-1/4 inch

1шт.

394424R1

WASHER - flat, 49/64 x 2 x 1/4 inch

1шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 3/32 inch

3шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

5

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING - grease, straight, 3/16 drive type

1шт.

6

465253R1

BUSHING

- hydraulic cylinder bar

1шт.

7

489522R1

BAR

- gag rod

2шт.

21932R1

HEADED PIN,1/2" x 2"

PIN - headed, 1/2 x 2 inch, grade 1

1шт.

21955R1

HEADED PIN,1/2" x 1 5/8"

PIN - headed, 1/2 x 1-5/8 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

8

489519R2

ROD

- gag

1шт.

9

455369R2

CLEVIS

- gag rod

1шт.

21932R1

HEADED PIN,1/2" x 2"

PIN - headed, 1/2 x 2 inch, grade 1

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

10

489524R1

YOKE

- bearing lower support

1шт.

424-868

BOLT - hex, 1/2 NC x 4-1/4 inch, grade 2

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

11

458929R1

CLIP

- bearing support

1шт.

411-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 2

BOLT - carriage, 5/8 NC x 2 inch, grade 2

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

12

489523R1

SUPPORT

- 4-13/16 inch wide, bearing upper, prior to SN 30240

1шт.

424-896

BOLT - hex, 1/2 NC x 6 inch, grade 2, prior to SN 30240

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

12

ZA521059

SUPPORT

- 6-1/16 inch wide, bearing upper, SN 30240 and after

1шт.

617794R1

SPACER,13.5mm ID x 19.05mm OD x 27mm L

- 3/4 x 1-1/16 inch, SN 30240 and after

1шт.

25710R1

WASHER

- flat, 17/32 x 1-1/8 x 3/16 inch, SN 30240 and after

1шт.

424-8112

BOLT - 1/2 NC x 7 inch, grade 2, SN 30240 and after

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
