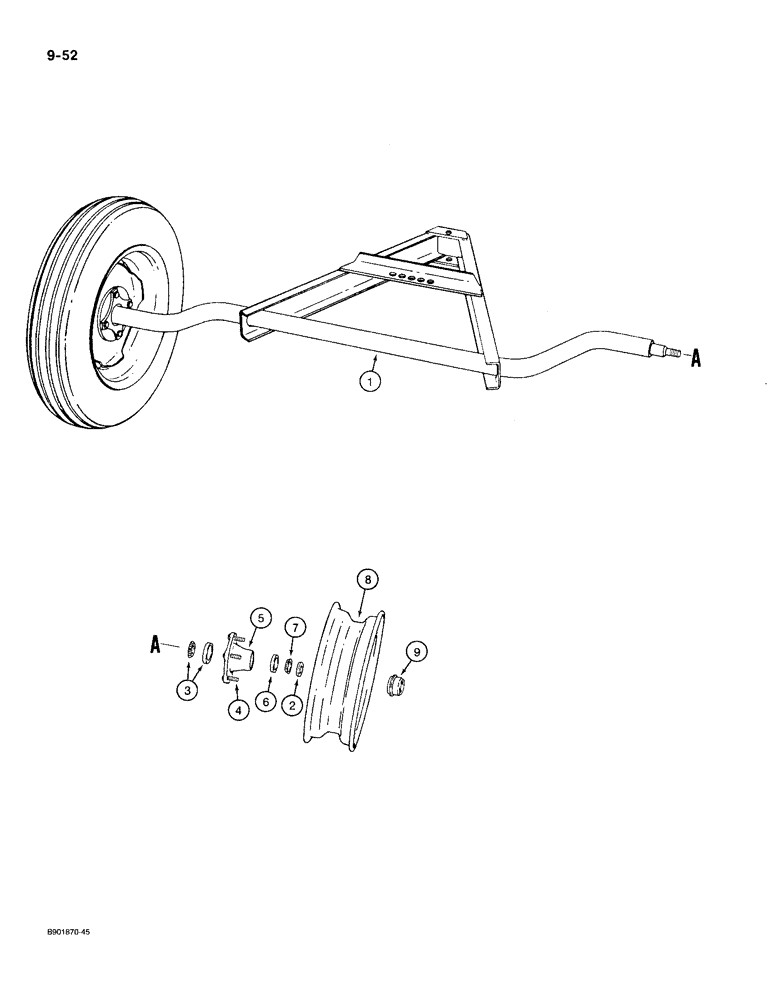

Запчасти Case IH 1100 (9-52) - AXLE WITH FRAME, HUB AND WHEELS, 1100 MOWER (09) - CHASSIS/ATTACHMENTS

1

467195R92

AXLE

ASSEMBLY - includes frame

1шт.

2

495-81039

WASHER,25/32" x 1 1/4" x .120"

- flat, 25/32 x 1-1/4 x 7/64 inch

2шт.

69442D

NUT

- slotted hex, 3/4 inch NF

2шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

424-1224

BOLT - hex, 3/4 NC X 1-1/2 inch, grade 2

1шт.

495-81255

WASHER,0.78" ID x 1.5" OD x 0.18" Thk

- flat, 25/32 x 1-1/2 x 5/32 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

3

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

- tapered roller, includes seal, inner hub roller

2шт.

4

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- hex conical, 1/2 NF x 15/16 inch

8шт.

5

465492R2

HUB

- wheel, no longer available, order (2) each of 472220R2 hub and 138643 set screw

2шт.

5

472220R2

HUB

- wheel

2шт.

84-4254

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - set, special

2шт.

6

651814R1

BEARING CUP

CUP - tapered roller bearing, outer hub

2шт.

7

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING - tapered roller, outer hub

2шт.

7

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

8

T25852

RIM

WHEEL - 14 x 5 KB disk standard, includes rim

2шт.

9

651194R1

CAP

- wheel hub

2шт.

485780R91

VALVE

- tire, TR414 tubeless

2шт.
