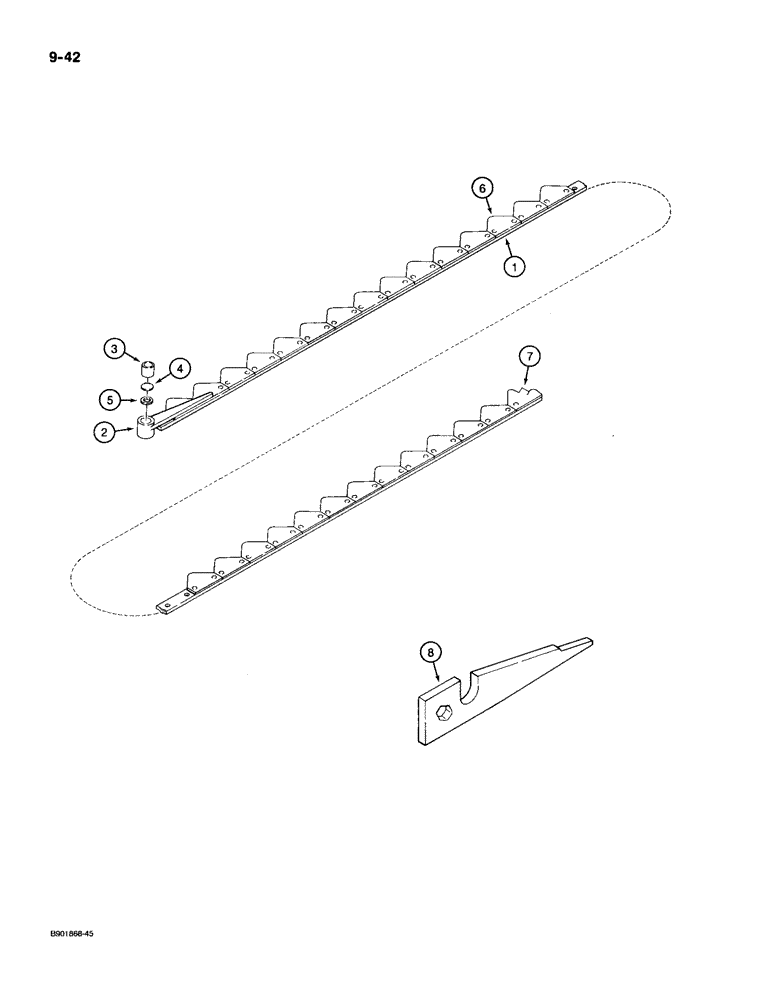

Запчасти Case IH 1100 (9-42) - SEVEN FOOT KNIVES AND CHROME PLATED SECTIONS, KNIVES WITH REGULAR SMOOTH SECTIONS, CHROME PLATED (09) - CHASSIS/ATTACHMENTS

472088R92

KNIFE

ASSEMBLY - with regular smooth sections

1шт.

1

NSS

NOT SOLD SEPARAT

KNIFE - 7 foot

1шт.

2

56692C91

PITMAN

HEAD ASSEMBLY - knife

1шт.

3

458971R1

BRONZE BUSHING,25.43mm ID x 28.63mm OD x 35.18mm L

BUSHING - knife head

1шт.

4

458972R1

PLUG

- knife head

1шт.

5

544553R1

SEALING WASHER

- seal

1шт.

6

457604R2

ASSEMBLY

SECTION - regular smooth, chrome plated

27шт.

7

467457R1

KNIFE SECTION

SECTION - end, smooth regular triplet, chrome plated, includes rivets

1шт.

14768R1

RIVET - oval head, No. 5-1/2 x 1 inch Oval Hd, .211" x 1"

1шт.

1980897C1

RIVET

- oval head, No. 5-1/2 x 5/8 inch

1шт.

MB133

RIVET

- oval head, No. 5-1/2 x 5/8 inch, chrome plated

1шт.

991059R91

RIVET

- oval head, No. 6 x 5/8 inch, if used

1шт.

467749R92

KNIFE

- with heavy underserrated sections, 11 gauge, chrome plated

1шт.

1

NSS

NOT SOLD SEPARAT

KNIFE - 7 foot, 11 gauge heavy underserrated sections, chrome plated

1шт.

2

56692C91

PITMAN

HEAD ASSEMBLY - knife w/ 11 gauge heavy underserrated sections, chrome plated

1шт.

3

458971R1

BRONZE BUSHING,25.43mm ID x 28.63mm OD x 35.18mm L

BUSHING - knife head, 11 gauge heavy underserrated sections, chrome plated

1шт.

4

458972R1

PLUG

- knife head, 11 gauge heavy underserrated sections, chrome plated

1шт.

5

544553R1

SEALING WASHER

- seal, 11 gague knives w/ heavy underserrated sections, chrome plated

1шт.

6

457607R2

KNIFE SECTION

SECTION - regular underserrated, 11 gauge, chrome plated, heavy sections

27шт.

7

467456R1

KNIFE SECTION

SECTION - end, regular underserrated triplet, chrome plated, includes rivets, 11 gauge heavy

1шт.

14768R1

RIVET - oval head, No. 5-1/2 x 1 inch, knives w. 11 gauge heavy underserrated sections, chrome plated Oval Hd, .211" x 1"

1шт.

1980897C1

RIVET

- oval head, No. 5-1/2 x 5/8 inch, knives w/ 11 gauge heavy underserrated sections, chrome plated

1шт.

MB133

RIVET

- oval head, No. 5-1/2 x 5/8 inch, chrome plated, knives w/ 11 gauge heavy underserrated sections

1шт.

991059R91

RIVET

- oval head, No. 6 x 5/8 inch, knives w/ 11 gauge heavy underserrated sections, chrome plated

1шт.

460937R93

KNIFE

ASSEMBLY - with regular underserrated sections, knives w/ 14 gauge regular serrated sections, chrome plated

1шт.

1

NSS

NOT SOLD SEPARAT

KNIFE - 7 foot, w/ 14 gauge regular serrated sections, chrome plated

1шт.

2

56692C91

PITMAN

HEAD ASSEMBLY - knife w/ 14 gauge regular serrated sections, chrome plated

1шт.

3

458971R1

BRONZE BUSHING,25.43mm ID x 28.63mm OD x 35.18mm L

BUSHING - knife head, with 14 gauge regular serrated sections, chrome plated

1шт.

4

458972R1

PLUG

- knife head, w/ 14 gauge regular serrated sections, chrome plated

1шт.

5

544553R1

SEALING WASHER

- seal, knives w/ 14 gauge regular serrated sections, chrome plated

1шт.

6

457606R2

KNIFE SECTION

SECTION - regular underserrated, 14 gauge, chrome plated, knives serrated sections, chrome plated

27шт.

7

467458R1

X

SECTION - end, regular underserrated triplet, chrome plated, includes rivets, serrated 14 gauge

1шт.

14768R1

RIVET - oval head, No. 5-1/2 x 1 inch, knives w/ 14 gauge regular serrated sections, chrome plated Oval Hd, .211" x 1"

1шт.

990817R91

RIVET

- oval head, No. 5-1/2 x 9/16 inch, pkg of 130, knives w/ 14 gauge regular serrated sections, chrome plated

1шт.

1980897C1

RIVET

- oval head, No. 5-1/2 x 5/8 inch, knives w/ 14 gauge regular serrated sections, chrome plated

1шт.

991059R91

RIVET

- oval head, No. 6 x 5/8 inch, knives w/ 14 gauge regular serrated sections, chrome plated

1шт.

8

469975R3

GAUGE

- guard lip and knife pin, chromium plated

1шт.
