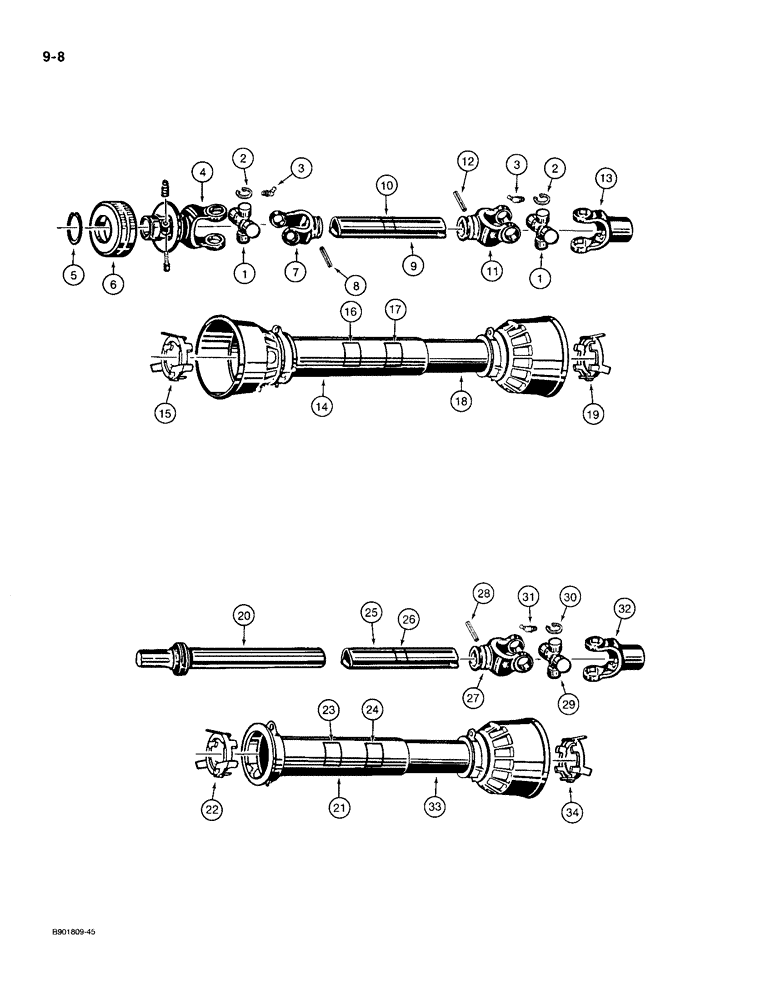

Запчасти Case IH 1100 (9-08) - POWER DRIVE EQUIPMENT, 1100 MOWER, SERIAL NUMBER 030841 AND AFTER, P.I.N. CCB0005501 AND AFTER (09) - CHASSIS/ATTACHMENTS

ZA522534

KIT

- universal joint, journal and bearing

2шт.

1

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint

1шт.

2

NSS

NOT SOLD SEPARAT

RING - snap

4шт.

3

ZA210343

NIPPLE, LUBE

FITTING - grease

2шт.

ZA522537

YOKE

outer, front of front drive shaft, Includes: Ref. 4, 5 and 6

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE - outer

1шт.

Part of P/N ZA522537 Yoke

1шт.

5

1960446C1

RING

- retaining

1шт.

Part of P/N ZA522537 Yoke

1шт.

6

1960445C1

COLLAR

- twist

1шт.

Part of P/N ZA522537 Yoke

1шт.

7

ZA522536

YOKE

- pinned, inner, front of front drive shaft

1шт.

8

ZA210355

PIN

- roll, front inner yoke

1шт.

9

ZA522538

TUBE

SHAFT - front drive

1шт.

10

1326528C1

DECAL

- Danger, shield missing, shown on page 9-77, item 12

1шт.

11

ZA522540

YOKE

- pinned, inner, rear of front drive shaft

1шт.

12

ZA522539

PIN

- roll, rear inner yoke

1шт.

13

ZA522541

YOKE

- spline, outer, rear of front drive shaft

1шт.

ZA522575

SHIELD

ASSEMBLY - front half, front drive shaft

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD - front half

1шт.

15

ZA522542

BEARING

- shield

1шт.

16

700707960

DECAL

- Danger, shield, shown on page 9-77, item 11

1шт.

17

96335C1

PRODUCT GRAPHIC

DECAL - Warning, shield, shown on page 9-77, item 2

1шт.

ZA522579

SHIELD

ASSEMBLY - rear half, front drive shaft

1шт.

18

NSS

NOT SOLD SEPARAT

SHIELD - rear half

1шт.

19

ZA522543

BEARING WASHER

BEARING - shield

1шт.

ZA522580

JOINT ASSY.

SHAFT ASSEMBLY - rear drive, P.T.O., shielded, front half

1шт.

20

ZA522563

TUBE

SHAFT - drive, front half

1шт.

ZA522582

SHIELD

ASSEMBLY - front half, rear drive shaft

1шт.

21

NSS

NOT SOLD SEPARAT

SHIELD - front half

1шт.

22

ZA522542

BEARING

- shield

1шт.

23

700707960

DECAL

- Danger, shield, shown on page 9-77, item 11

1шт.

24

96335C1

PRODUCT GRAPHIC

DECAL - Warning, shield, shown on page 9-77, item 2

1шт.

ZA522585

JOINT ASSY.

SHAFT ASSEMBLY - rear drive, P.T.O., shielded, rear half

1шт.

25

ZA522565

TUBE

SHAFT - drive, rear half

1шт.

26

1326528C1

DECAL

- Danger, drive shaft, shown on page 9-77, item 12

1шт.

27

ZA522540

YOKE

- pinned, inner

1шт.

28

ZA522539

PIN

- roll, inner yoke

1шт.

ZA522534

KIT

- universal joint, journal and bearing

1шт.

29

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint

1шт.

30

NSS

NOT SOLD SEPARAT

RING - snap

4шт.

31

ZA210343

NIPPLE, LUBE

FITTING - grease

1шт.

32

ZA522553

YOKE

- spline, outer

1шт.

ZA522586

SHIELD

ASSEMBLY - rear half

1шт.

33

NSS

NOT SOLD SEPARAT

SHIELD - rear half

1шт.

34

ZA522543

BEARING WASHER

BEARING - rear shield

1шт.
