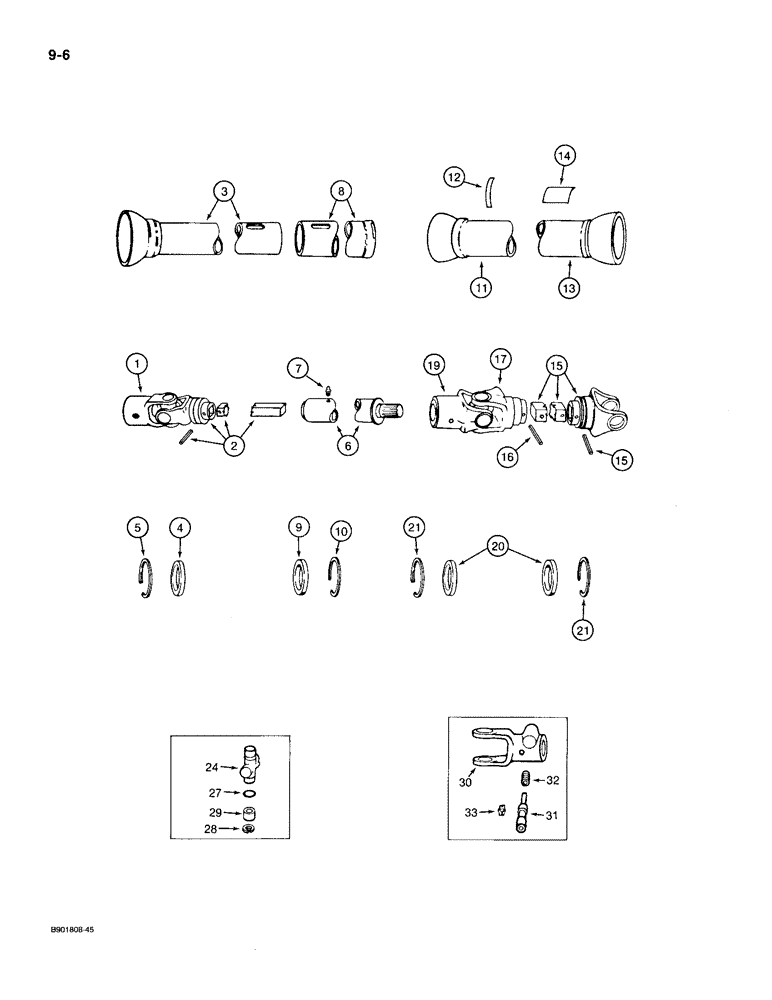

Запчасти Case IH 1100 (9-06) - POWER DRIVE EQUIPMENT, 1100 MOWER, SERIAL NUMBER 030571 THROUGH SERIAL NUMBER 030840 (09) - CHASSIS/ATTACHMENTS

ZA521076

JOINT

SHAFT ASSEMBLY - drive, shielded, rear half

1шт.

1

462477R1

YOKE

- with keyway

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - drive, with yoke and pin

1шт.

3

ZA521057

SHIELD

- outer

1шт.

4

1337164C1

BEARING

- nylon, shield

1шт.

5

597559R1R1

RING - retaining, shield

1шт.

ZA521075

JOINT

SHAFT ASSEMBLY - drive, shielded tubular

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - tube, front half

1шт.

7

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING - grease, straight, 1/4 inch NF

1шт.

8

ZA521058

SHIELD

- inner

1шт.

9

1336835C1

BEARING

- nylon

1шт.

10

597559R1

RETAINER

RING - snap

1шт.

ZA521043

JOINT

ASSEMBLY - shielded double, non-slip

1шт.

11

ZA521054

SHIELD

- rear

1шт.

12

1253795C1

DECAL

- Adjust tractor drawbar, shown on page 9-77, item 9

1шт.

13

ZA521070

SHIELD

- front

1шт.

14

96335C1

PRODUCT GRAPHIC

DECAL - Warning, PTO Master Shield, shown on page 9-77, item 2

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT - drive, with yoke and pin

1шт.

16

NSS

NOT SOLD SEPARAT

PIN - roll, yoke

1шт.

17

1336834C1

YOKE

- pinned

1шт.

18

17069R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, , not shown 5/16" x 1 3/4", Slotted

1шт.

19

614043R1

YOKE

- spline

1шт.

20

1337164C1

BEARING

- nylon, shield

2шт.

21

597559R1

RETAINER

RING - retaining, shield

2шт.

22

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW - set, square head cone point, 1/2 NF x 1 inch, not shown

1шт.

23

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, jam, 1/2 inch NF, not shown

1шт.

150635R92

SPIDER

KIT - universal joint, journal and bearing

3шт.

24

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint

1шт.

25

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, , if used, not shown Slotted, Headless, 1/8" NPT

1шт.

26

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch, not shown

1шт.

27

357425R1

CORK SEAL

- oil, cork

4шт.

28

357426R1

RING

- retaining

4шт.

29

661678R91

BEARING

RACE - bearing

4шт.

462492R91

YOKE

ASSEMBLY - quick detachable

1шт.

30

NSS

NOT SOLD SEPARAT

YOKE - 1-3.8 inch spline

1шт.

455346R21

PIN

ASSEMBLY - lock

1шт.

31

NSS

NOT SOLD SEPARAT

PIN - lock

1шт.

32

455347R1

VALVE SPRING

SPRING - compression

1шт.

33

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

- lock pin

1шт.
