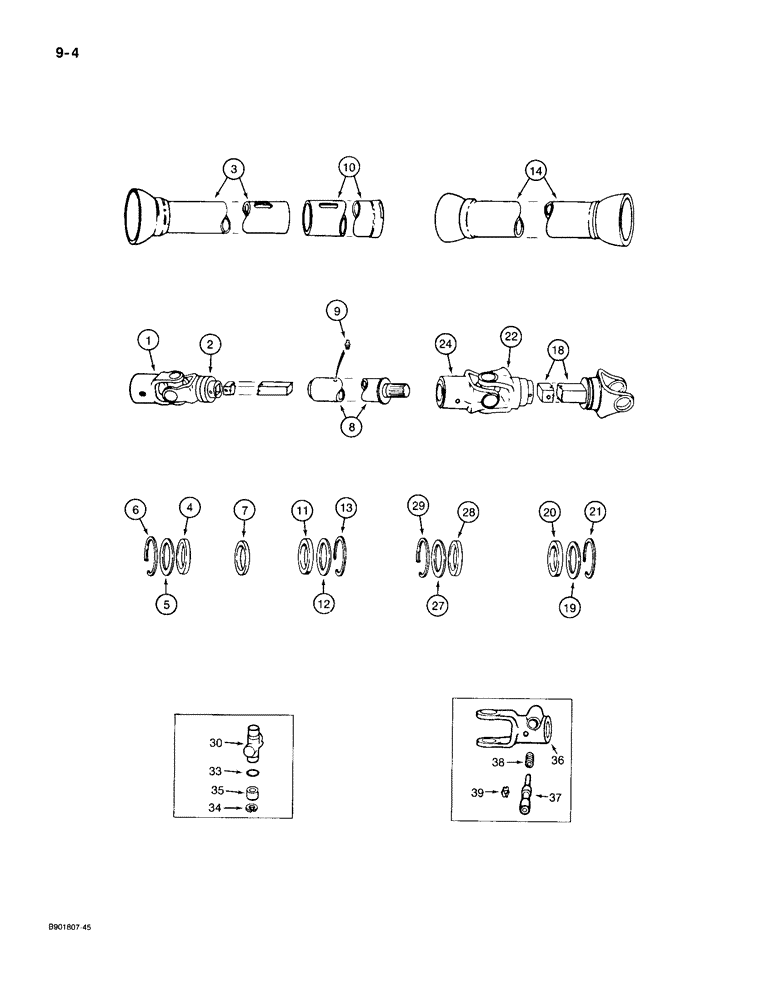

Запчасти Case IH 1100 (9-04) - POWER DRIVE EQUIPMENT, 1100 MOWER, PRIOR TO SERIAL NUMBER 030570 (09) - CHASSIS/ATTACHMENTS

491297R91

JOINT

SHAFT ASSEMBLY - drive, shielded rectangular

1шт.

1

462477R1

YOKE

- with keyway

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - drive, with yoke, rear half

1шт.

3

491299R1

SHIELD

- outer

1шт.

4

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

- nylon shield

1шт.

5

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

- thrust

1шт.

6

613436R1

CLAMP

RING - snap

1шт.

7

613439R1

BRACKET

SPACER - nylon support

1шт.

491300R91

JOINT

SHAFT ASSEMBLY - drive, shielded tubular

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - tube, front half

1шт.

9

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 inch NF

1шт.

10

491302R1

SHIELD

- inner

1шт.

11

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

- nylon shield

1шт.

12

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

- thrust

1шт.

13

613436R1

CLAMP

RING - snap

1шт.

491309R91

JOINT

ASSEMBLY - shielded double, non-slip

1шт.

14

491312R1

SHIELD

- includes decal

1шт.

15

1253795C1

DECAL

- Adjust tractor drawbar, shown on page 9-77, item 9

1шт.

17

96335C1

PRODUCT GRAPHIC

DECAL - Warning, PTO Master Shield, shown on page 9-77, item 2

1шт.

491310R91

JOINT

SHAFT ASSEMBLY - single joint

1шт.

18

491311R1

YOKE

SHAFT - drive, with yoke

1шт.

19

614045R1

WASHER - thrust

1шт.

20

463014R1

RING

BEARING - nylon

1шт.

21

613436R1

CLAMP

RING - snap

1шт.

491313R91

JOINT

COUPLING - drive shaft

1шт.

22

491314R1

YOKE

- pinned

1шт.

23

138-2052

PIN,5/16" x 1 3/4", Coiled

not shown 5/16" x 1 3/4", Coiled

2шт.

24

614043R1

YOKE

- spline

1шт.

25

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW - set, square head cone point, 1/2 NF x 1 inch, not shown

1шт.

26

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, jam, 1/2 inch NF, not shown

1шт.

27

614045R1

WASHER - thrust

1шт.

28

463014R1

RING

BEARING - nylon

1шт.

29

613436R1

CLAMP

RING - snap

1шт.

150635R92

SPIDER

KIT - universal joint, journal and bearing

3шт.

30

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint

1шт.

31

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, , if used, not shown Slotted, Headless, 1/8" NPT

1шт.

32

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch, not shown

1шт.

33

357425R1

CORK SEAL

- oil, cork

4шт.

34

357426R1

RING

- snap

4шт.

35

661678R91

BEARING

RACE - bearing

4шт.

462492R91

YOKE

ASSEMBLY - quick detachable

1шт.

36

NSS

NOT SOLD SEPARAT

YOKE - quick detachable

1шт.

455346R21

PIN

KIT - pin locking

1шт.

37

NSS

NOT SOLD SEPARAT

PIN - lock

1шт.

38

455347R1

VALVE SPRING

SPRING - compression

1шт.

39

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

- lock pin

1шт.
