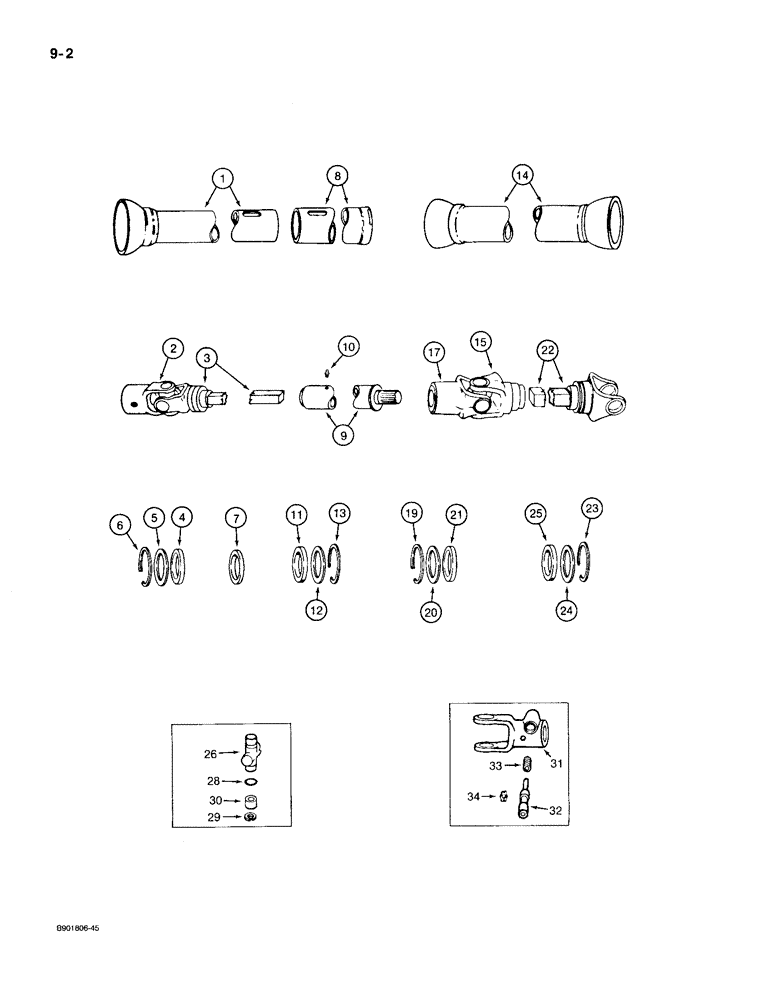

Запчасти Case IH 1100 (9-02) - POWER DRIVE EQUIPMENT, WITH HAY CONDITIONER, 1100 MOWER (09) - CHASSIS/ATTACHMENTS

491303R91

SHAFT ASSEMBLY - drive, shielded rectangular

1шт.

1

491305R1

SHIELD

- outer

1шт.

2

462845R1

YOKE

- splined

1шт.

3

491304R1

SHAFT - drive, with yoke

1шт.

4

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

- nylon shield

1шт.

5

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

- thrust

1шт.

6

613436R1

CLAMP

RING - snap

1шт.

7

613439R1

BRACKET

SPACER - nylon support

1шт.

8

NSS

NOT SOLD SEPARAT

SHIELD - inner

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - tubular

1шт.

10

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING - grease, straight, 1/4 inch NF

1шт.

11

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

- nylon shield

1шт.

12

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

- thrust

1шт.

13

613436R1

CLAMP

RING - snap

1шт.

491315R91

JOINT ASSEMBLY - shielded double non-slip

1шт.

14

491318R1

SHIELD - outer

1шт.

491319R91

COUPLING - drive shaft

1шт.

15

491320R1

YOKE - pinned

1шт.

16

138-2041

PIN,3/8" x 2", Coiled

Not shown 3/8" x 2", Coiled

1шт.

17

460902R1

YOKE

- spline

1шт.

18

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW - set, square head cone point, 1/2 NF x 1 inch, not shown

1шт.

19

613436R1

CLAMP

RING - snap

1шт.

20

614045R1

WASHER - thrust

1шт.

21

463014R1

RING

BEARING - nylon

1шт.

491316R91

JOINT

SHAFT ASSEMBLY - single joint

1шт.

22

491317R1

SHAFT - drive, with yoke

1шт.

23

613436R1

CLAMP

RING - snap

1шт.

24

614045R1

WASHER - thrust

1шт.

25

463014R1

RING

BEARING - nylon

1шт.

659262R91

U-JOINT SPIDER

KIT - universal joint, no longer available, order 669564R91 kit shown below

3шт.

669564R91

CROSS

KIT - universal joint, journal and bearing

3шт.

26

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint

1шт.

27

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch, not shown

1шт.

28

661656R1

SEAL - oil, cork, not included in 669564R91 kit

4шт.

29

661657R1

RING

- retaining

4шт.

30

661655R91

BEARING ASSY,0.59375" ID x 1.0625" OD x 0.4375"

RACE - bearing, 659262R91 kit

4шт.

30

669565R91

CAP

RACE - bearing, 669564R91 kit

4шт.

459463R91

YOKE

ASSEMBLY - quick detachable

1шт.

31

NSS

NOT SOLD SEPARAT

YOKE - quick detachable

1шт.

32

455346R21

PIN

- lock

1шт.

33

455347R1

VALVE SPRING

SPRING - lock pin

1шт.

34

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

- lock pin

1шт.
