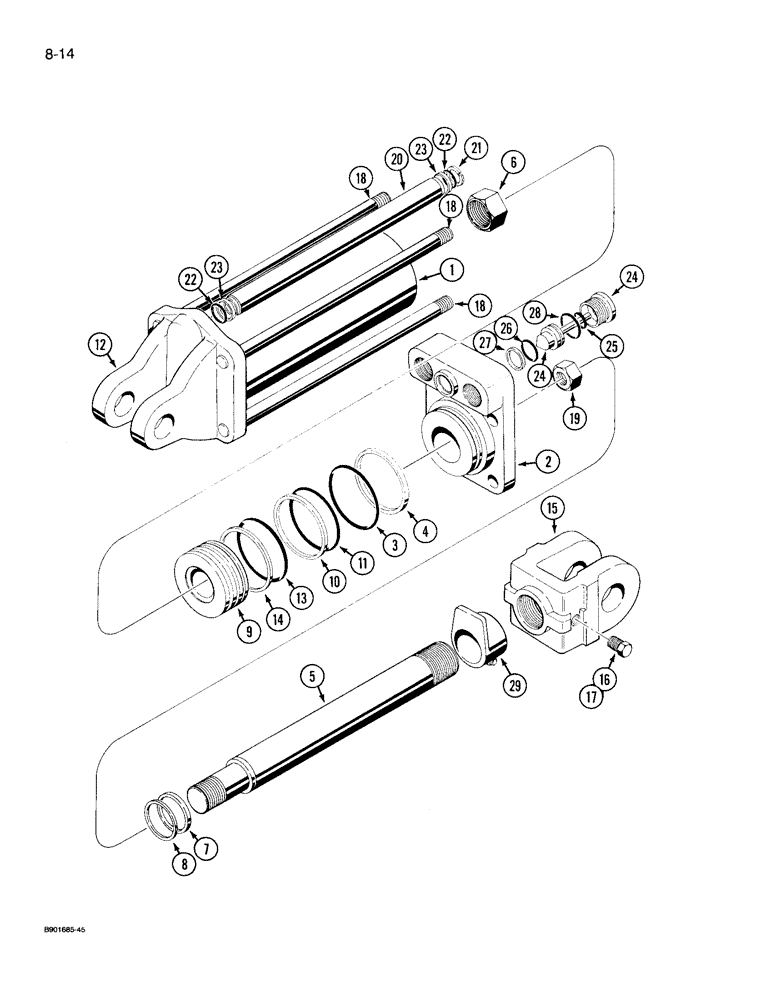

Запчасти Case IH 1100 (8-14) - TRANSPORT LIFT CYLINDER, 1263474C91, TIE-BOLT DOUBLE ACTING, 1100 MOWER (08) - HYDRAULICS

1263474C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2 ID x 8 stroke, 3/4-16 inch ports

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1255096C1

END

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD, gland

1шт.

Part of seal kit P/N 79978C2 and (2) wear rings not used on this cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 79978C2 and (2) wear rings not used on this cylinder

1шт.

1272813C1

ROD

ASSEMBLY - piston

1шт.

5

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

6

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, grade 8

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 79978C2 and (2) wear rings not used on this cylinder

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 79978C2 and (2) wear rings not used on this cylinder

1шт.

9

145422C2

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit P/N 79978C2 and (2) wear rings not used on this cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 3 ID x 3-3/16 inch OD, backup, piston seal

1шт.

Part of seal kit P/N 79978C2 and (2) wear rings not used on this cylinder

1шт.

12

145354C1

HEAD

- cylinder, closed end

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD, cylinder head

1шт.

Part of seal kit P/N 79978C2 and (2) wear rings not used on this cylinder

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of seal kit P/N 79978C2 and (2) wear rings not used on this cylinder

1шт.

15

1282366C1

RAM FORK

CLEVIS - piston rod

1шт.

16

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

17

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

18

145250C1

BOLT,5/8" - 11 x 345mm

- tie, cylinder

4шт.

19

425-1010

NUT,5/8"-11, G5

4шт.

20

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

- return

2шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 9/16 ID x 3/4 inch OD, return tube

2шт.

Part of valve and transfer tube kit P/N 1272597C91and (2) washers not used on this cylinder

1шт.

23

NSS

NOT SOLD SEPARAT

RING - backup, return tube O-ring

2шт.

Part of valve and transfer tube kit P/N 1272597C91and (2) washers not used on this cylinder

1шт.

1260968C91

VALVE

ASSEMBLY - stop limiting

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE - stop limiting

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - 3/16 ID x 5/16 inch OD, valve

1шт.

Part of valve and transfer tube kit P/N 1272597C91and (2) washers not used on this cylinder

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING - 11/16 ID x 7/8 inch OD, valve

1шт.

Part of valve and transfer tube kit P/N 1272597C91and (2) washers not used on this cylinder

1шт.

27

NSS

NOT SOLD SEPARAT

RING - backup, valve O-ring

1шт.

Part of valve and transfer tube kit P/N 1272597C91and (2) washers not used on this cylinder

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - 3/4 inch tube OD, valve, Serial Range: retainer-gland

1шт.

Part of valve and transfer tube kit P/N 1272597C91and (2) washers not used on this cylinder

1шт.

29

224581C3

ARM

STOP - depth, cylinder

1шт.

1263435C91

ADJUSTMENT SCREW

LEVER ASSEMBLY - cylinder adjusting

1шт.

31

NSS

NOT SOLD SEPARAT

LEVER - cylinder adjusting, not shown

1шт.

32

NLS

NO LONGER SERVICED

- hex jam, 5/16 inch NC, not shown

1шт.

79978C2

SEAL KIT

KIT - seal, Includes Refs. 3, 4, 7, 8, 10, 11, 13 and 14 and (2) wear rings not used on this cylinder

1шт.

1272597C91

KIT

- valve and transfer tube, Includes Refs. 22, 23, 25, 26, 27 and 28 and (2) washers not used on this cylinder

1шт.
