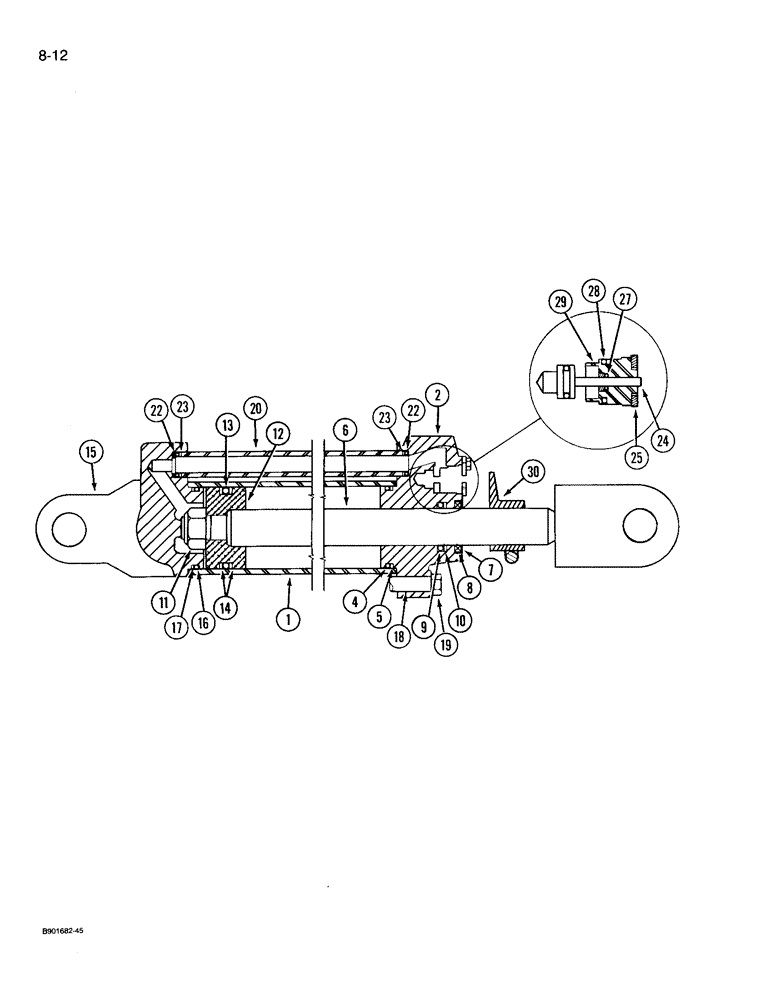

Запчасти Case IH 1100 (8-12) - TRANSPORT LIFT CYLINDER, 371292R94, TIE-BOLT DOUBLE ACTING, 1100 MOWER (08) - HYDRAULICS

371292R95

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke, no longer available, order 1263474C91 cylinder assembly, page 8-15, and (2) each of items 7 and 8, 1252129C1 adapters and 237-6008 O-rings, respectively shown on page 8-3

1шт.

1

354051R1

BARREL,3.5035" ID, .429" OD, 10.26" Length

TUBE - cylinder

1шт.

2

60786C91

HEAD

GLAND - cylinder, replaces 371297R11 gland, 9410360 plug and 364885R1 O-ring

1шт.

3

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT, not shown

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD, gland

1шт.

Part of seal kit P/N 386685R91

1шт.

5

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 386685R91

1шт.

6

60784C91

ROD

- piston, replaces 361005R13 piston rod by also ordering 28543R1 clevis pin and 520175R1 hair pin

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 386685R91

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - wiper

1шт.

Part of seal kit P/N 386685R91

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 386685R91

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, piston rod O-ring

1шт.

Part of seal kit P/N 386685R91

1шт.

11

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

1шт.

12

361003R1

HEAD

PISTON - cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 3-1/8 ID x 3-1/2 inch OD, piston

1шт.

Part of seal kit P/N 386685R91

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of seal kit P/N 386685R91

1шт.

15

60782C1

HEAD

- cylinder, closed end, replaces 371297R11 head by also ordering 28543R1 clevis pin and 520175R1 hair pin

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD, cylinder head

1шт.

Part of seal kit P/N 386685R91

1шт.

17

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of seal kit P/N 386685R91

1шт.

18

361004R1

BOLT,Hex, 1/2" - 20 x 13 7/16"

- tie, cylinder

4шт.

19

129-125

NUT,1/2"-20, G5

4шт.

20

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

- return, replaces 354834R2 tube

1шт.

21

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, , Not shown 3/8"

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 9/16 ID x 3/4 inch OD, return tube

2шт.

Part of seal kit P/N 386685R91

1шт.

23

NSS

NOT SOLD SEPARAT

RING - backup, return tube O-ring

2шт.

Part of seal kit P/N 386685R91

1шт.

24

361006R12

VALVE

- stop limiting

1шт.

25

361009R1

PLATE

- retaining, stop limiting valve

1шт.

26

179792

BOLT,Hex, 1/4" - 20 x 9/16"

- hex, 1/4 NC x 9/16 inch, not shown

2шт.

27

NSS

NOT SOLD SEPARAT

O-RING - 3/16 ID x 5/16 inch OD, valve

1шт.

Part of seal kit P/N 386685R91

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - 5/8 ID x 13/16 inch OD, valve

1шт.

Part of seal kit P/N 386685R91

1шт.

29

361007R11

RETAINER

- stop limiting valve

1шт.

30

375426R91

COLLAR

- stroke limiting

1шт.

31

393503R1

THUMB SCREW,5/16" - 24 x 5/8"

- thumb, not shown

1шт.

32

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, cylinder, replaces 352231R11, 27267R1 and 61571C1 pins, not shown

2шт.

33

520175R1

CLIP

PIN - hair, 3/16 inch diameter, replaces 352369R2 pin, 103373 pin, 354837R1 washer, and 352370R1 spring, not shown

2шт.

363138R94

PACKAGE

KIT - seal, Includes Refs. 4, 5, 7, 8, 9, 10, 13, 14, 16, 17, 22, 23, 27 and 28

1шт.
