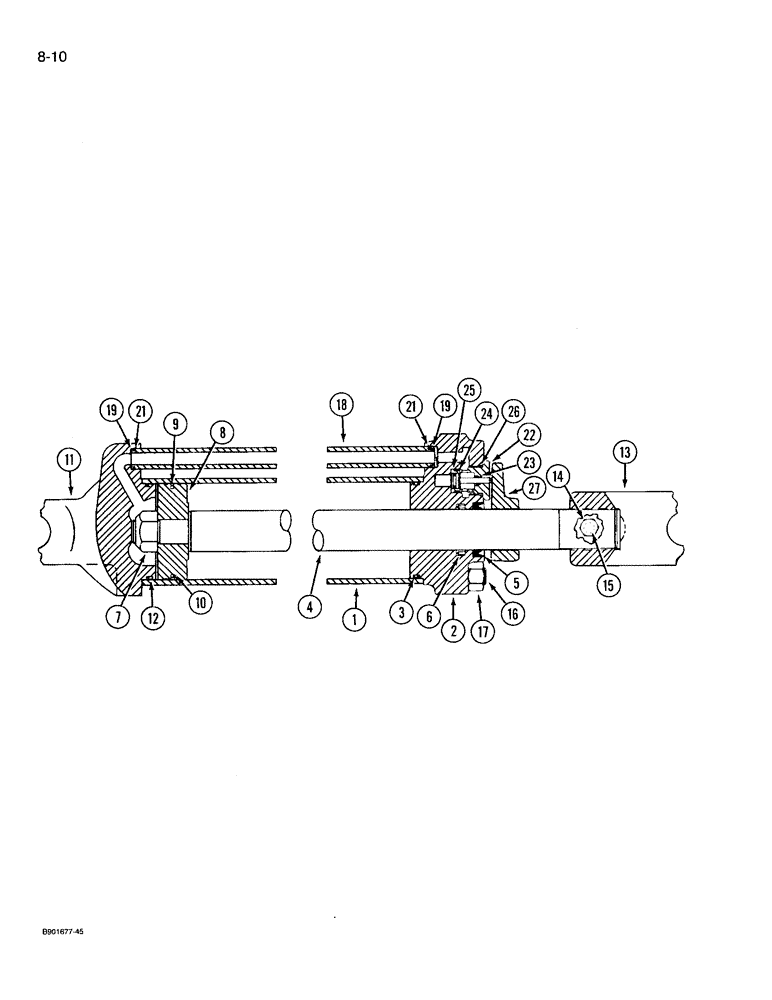

Запчасти Case IH 1100 (8-10) - TRANSPORT LIFT CYLINDER, 145353C91, TIE-BOLT DOUBLE ACTING, 1100 MOWER (08) - HYDRAULICS

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 2-1/2 ID x 8 inch stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

145365C1

END

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 2-1/4 ID x 2-1/2 inch OD, gland

1шт.

Part of seal and O-ring kit P/N 79978C2 and (2) backup rings not used on this cylinder

1шт.

4

145500C1

PISTON ROD

ROD - piston

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal and O-ring kit P/N 79978C2 and (2) backup rings not used on this cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal and O-ring kit P/N 79978C2 and (2) backup rings not used on this cylinder

1шт.

7

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, grade 8

1шт.

8

145221C3

PISTON

- cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal and O-ring kit P/N 79978C2 and (2) backup rings not used on this cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 2-1/16 ID x 2-1/4 inch OD, backup, piston seal

1шт.

Part of seal and O-ring kit P/N 79978C2 and (2) backup rings not used on this cylinder

1шт.

11

145363C1

HEAD

- cylinder, closed end

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 2-1/4 ID x 2-1/2 inch OD, cylinder head

1шт.

Part of seal and O-ring kit P/N 79978C2 and (2) backup rings not used on this cylinder

1шт.

13

145233C1

CLEVIS,1/4" - 12

- rod end

1шт.

14

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

15

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

16

1260889C1

SQUARE BOLT,7/16" - 14 x 322.94mm

- tie, cylinder

4шт.

17

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

18

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

- return

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - 9/16 ID x 3/4 inch OD, return tube

2шт.

Part of valve and transfer tube, kit P/N 1272597C91

1шт.

20

492-11038

LOCK WASHER,3/8"

not shown 3/8"

1шт.

21

NSS

NOT SOLD SEPARAT

RING - backup, return tube O-ring

2шт.

Part of valve and transfer tube, kit P/N 1272597C91

1шт.

1260968C91

VALVE

ASSEMBLY - stop limiting

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - stop limiting

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - 3/16 ID x 5/16 inch OD, valve

1шт.

Part of valve and transfer tube, kit P/N 1272597C91

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - 11/16 ID x 7/8 inch OD, valve

1шт.

Part of valve and transfer tube, kit P/N 1272597C91

1шт.

25

NSS

NOT SOLD SEPARAT

RING - backup, valve O-ring

1шт.

Part of valve and transfer tube, kit P/N 1272597C91

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING - 3/4 inch tube OD, valve, Serial Range: retainer-gland

1шт.

Part of valve and transfer tube, kit P/N 1272597C91

1шт.

27

224579C3

ARM

STOP - depth, cylinder

1шт.

1263435C91

ADJUSTMENT SCREW

LEVER ASSEMBLY - cylinder adjusting

1шт.

28

NSS

NOT SOLD SEPARAT

LEVER - cylinder adjusting, not shown

1шт.

29

124824

NUT,Hex, 5/16" - 18

- hex jam, 5/16 inch NC, not shown

1шт.

79978C2

SEAL KIT

KIT - seal and O-ring, Includes Refs. 3, 5, 6, 9, 10 and 12 and (2) backup rings not used on this cylinder

1шт.

1272597C91

KIT

- valve and transfer tube, Includes Refs. 19, 21, 23, 24, 25 and 26 and (2) washers not used on this cylinder

1шт.
