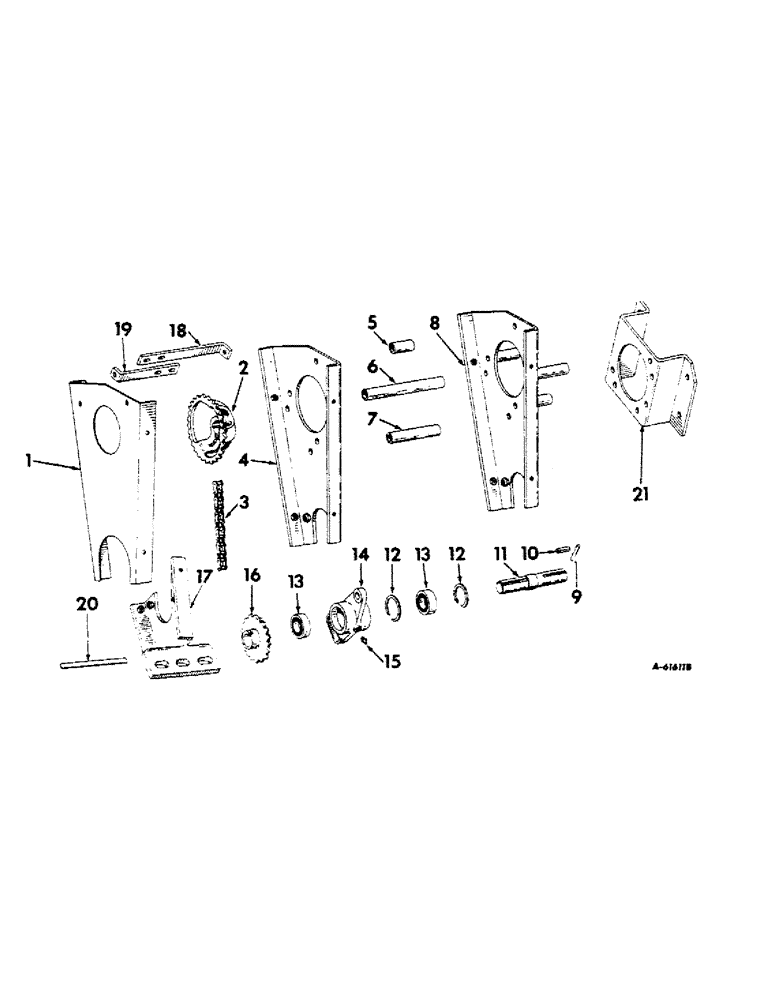

Запчасти Case IH 110 (C-10) - REAR DRIVE UNIT
№
Артикул
Название
Примечание
Количество
1
463396R11
SHIELD, rear mounting, unit A, C and M
1шт.
1
463399R21
SHIELD, rear mounting, unit F and K
1шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
SCREW, 1/4 x 5/8 in. C-Z cap
4шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
1
463401R21
SHIELD, rear mounting, units E and J
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
SCREW, 1/4 x 5/8 in. C-Z cap, 4 for unit E, 2 for unit J
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , 2 for Unit J 1/4"
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, , 2 for unit J 3/8"
1шт.
1
465178R11
SHIELD, rear mounting, 1961 and since, units B, D, G and L
1шт.
1
463392R11
SHIELD, rear drive, units B and D, 1960
1шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
SCREW, 1/4 x 5/8 in. C-Z cap
4шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
2
465176R2
SPROCKET ASSY.
SPROCKET, power take-off, 40-T, units B, D, E, F, G, H, M, J, K and L
1шт.
2
461402R3
SPROCKET ASSY.
SPROCKET, power take-off, 35-T, unit A, C and F
1шт.
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
SCREW, 1/2 x 2-1/2 in. cap
1шт.
102637
NUT,1/2"-13, G5
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
3
CHAIN, drive, use 76 links of 5/8 in. pitch stock roller chain from a 10 ft. roll marked 1791D, one connecting link, 1310D, unit F
1шт.
3
CHAIN DRIVE, use 65 links of 5/8 in. pitch stock roller chain from a 10 ft roll marked 1791D, one connecting link 1310D and one offset link 1315D, unit A and C
1шт.
3
CHAIN DRIVE, use 62 links of 5/8 in. pitch stock roller chain from a 10 ft. roll marked 1791D, one connecting link 1310D, units B and D
1шт.
3
CHAIN DRIVE, use 68 links of 5/8in. pitch stock roller chain from a 10 ft. roll marked 1791D, one connecting link 1310D and one offset link 1315D, unit E, G, H, M, J, K and L
1шт.
4
465177R31
PLATE ASSEMBLY, rear mounting, units B, D and G, 1961
1шт.
4
463391R11
PLATE ASSEMBLY, rear mounting, units B and D
1шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
SCREW, 1/2 x 1-1/2 in. C-Z cap
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
16038R1
WASHER
17/32 x 1 in. x 11 ga
8шт.
4
463400R21
PLATE ASSEMBLY, rear mounting, units E, G and H
1шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
SCREW, 1/2 x 1-1/2 in. C-Z cap
3шт.
120384
WASHER,1/2"
LOCK, 1/2"
3шт.
16038R1
WASHER
17/32 x 1 in. x 11 ga
7шт.
4
465177R31
PLATE ASSY, rear mounting, unit L
1шт.
180183
BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5
SCREW, 1/2 x 2-1/4 in. C-Z cap
2шт.
445806
SCREW, 1/2 x 5-1/2 in. C-Z cap
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
3шт.
524443
WASHER, 21/32 x 1-1/4 in. x 7 ga
2шт.
5
463398R1
SPACER
pipe, unit F
1шт.
5
458806R1
SPACER, pipe, unit B, D and E, w/planetary type power take-off
3шт.
5
475426R1
SPACER, pipe, 1/2 x 7/8 in., 2 for units K and L
1шт.
5
663393R1
SPACER
pipe, 1/2 x 3-3/8 in., units K and L
1шт.
6
463402R1
SPACER, pipe, units B and D, w/transmission drive power take-off
3шт.
19456R1
SCREW, 1/2 x 9-1/2 in. cap
3шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
3шт.
7
463403R1
SPACER, pipe, unit E, w/transmission driven power take-off
3шт.
413-8112
BOLT,Hex, 1/2" - 13 x 7", Gr 5
SCREW, 1/2 x 7 in. cap
3шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
3шт.
4
463393R11
PLATE
ASSEMBLY, rear mounting, units A, C and M
1шт.
16835R1
BOLT, 7/16 x 7-3/4 in. mach
3шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
3шт.
W6652
WASHER
15/32 x 1 in. x 16 ga
6шт.
8
463397R41
PLATE ASSEMBLY, rear mounting, unit F
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
SCREW, 1/2 x 1-1/4 in. C-Z cap, 3 for 404 and 2404 tractors
1шт.
180191
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
SCREW, 1/2 x 3-1/4 in. C-Z cap, 3 for B-250 and B-414 tractors
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
3шт.
102637
NUT,1/2"-13, G5
2шт.
8
463397R41
PLATE ASSY, rear mounting, unit K
1шт.
180183
BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5
SCREW, 1/2 x 2-1/4 in. C-Z cap
2шт.
445608
BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5
SCREW, 1/2 x 5-1/2 in. C-Z cap
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
3шт.
16038R1
WASHER
17/32 x 1 in. x 11 ga
4шт.
9
19355R1
LOCK PIN,3/16" x 2", Slotted
PIN, , ESNA 3/16" x 2", Slotted
1шт.
9
576482R1
LOCK PIN,5/16" x 2", Slotted
ESNA 5/16" x 2", Slotted
1шт.
10
Q1482
KEY,5/16" Sq x 1", Par
5/16 x 5/16 x 1 in. sq parallel
2шт.
11
464253R1
SHAFT
rear drive
1шт.
12
360936R1
RING
interval rear drive bearing retaining
2шт.
13
ST211
BEARING, BALL,30 mm ID x 62 mm OD x 16 mm
BEARING, rear drive ball
2шт.
14
463359R1
HOUSING
rear drive
1шт.
179884
BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd
1/2 x 1-3/8 hex-hd
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
12026R1
WASHER
17/32 x 1-1/4 in. x 16 ga
1шт.
15
16884R1
FITTING, 1/8 in. 65 degree elbow lubrication
1шт.
16
464251R11
SPROCKET ASSY.
SPROCKET, driven
1шт.
17
464239R92
PLATE, drawbar drive mounting, unit J
1шт.
87403
BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5
2шт.
80280173
BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5
SCREW, 3/4 x 2-3/4 in. C-Z cap
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
3шт.
18
464245R1
SUPPORT, long, unit J, for Farmall H and M series tractors
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
19
464244R1
SUPPORT, short, unit J, for Farmall H series tractors only
2шт.
19
464243R1
SUPPORT, intermediate, unit J, for Farmall M series tractors only
2шт.
20
465174R1
SHIM, drawbar, unit J
1шт.
21
466796R1
PLATE, rear mounted, unit F, 404 and 2404 tractors
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
SCREW, 1/2 x 1-1/4 in. C-Z cap
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
Выбрано товаров: 90
