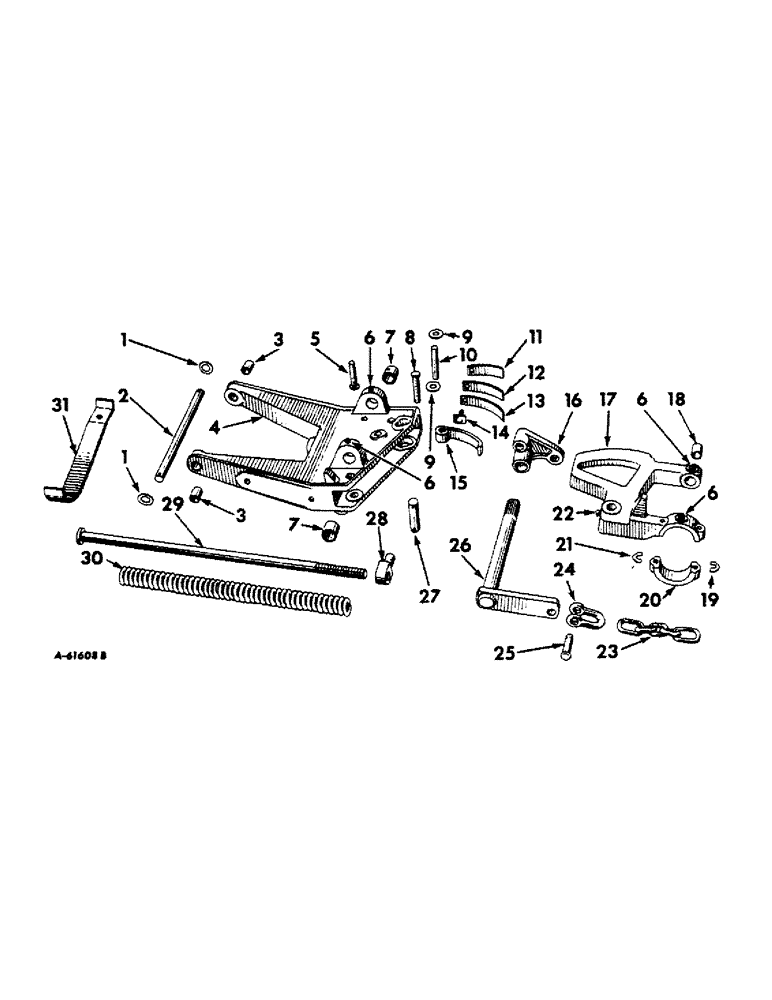

Запчасти Case IH 110 (C-05) - COUPLING BAR, SHOE HINGE AND BALANCING SPRING

1

Q5036

WASHER

1-1/32 x 1-3/4 in. x 16 ga

2шт.

2

463328R2

SHAFT

coupling bar hinge

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

3

463322R1

BUSHING

hinge shaft

2шт.

4

463325R21

BAR

W/BUSHING ASSY, coupling

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

110454

1/2 x 2 in. sq-hd cup-pt set

1шт.

5

Q1238

HEADED PIN,3/4" x 3 1/2"

PIN, 3/4 x 3-1/2 in. dld-std-hd

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

6

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. straight lubrication

4шт.

7

582305R1

BUSHING

rockshaft

2шт.

8

463327R1

PIN

break-away stop

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

9

522473R1

WASHER

roller retaining, 49/64 x 1-3/4 x 1/8 in., hardened

2шт.

10

463330R1

SHAFT

ROLLER, break-away

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

11

524452R1

VALVE SPRING

SPRING, upper helper

1шт.

12

524453R1

VALVE SPRING

SPRING, middle helper

1шт.

13

524454R1

VALVE SPRING

SPRING, lower helper

1шт.

14

463331R11

STUD

SCREW ASSEMBLY, spring adjusting

1шт.

19258R1

LOCK NUT,1/2"-20, GB

NUT, 1/2 in. UNF stop

2шт.

15

524356R1

SPRING

trip

1шт.

16

463338R2

LEVER

ARM, hydraulic cylinder

1шт.

17

463332R11

HINGE

W/BUSHING ASSEMBLY, inner shoe, 1960-1961, order hinge, 467275R11, bushing, 467215R1 and cap, 467276R1

1шт.

17

467275R11

HINGE

W/BUSHINGS ASSY, inner shoe, 1962 and since

1шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2 x 3-1/2 in. cap

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

18

575789R1

BUSHING

front hinge

1шт.

19

463334R1

SHIM

hinge cap, 31 ga

6шт.

20

463333R1

CAP, hinge bearing, 1960, 1961

1шт.

20

467276R1

CAP

hinge bearing, 1962 and since

1шт.

21

463335R1

SHIM

hinge cap, 25 ga.

4шт.

22

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 in. 90 degree elbow lubrication

1шт.

23

463339R1

CHAIN (AG)

CHAIN, lift, 5 links

1шт.

24

463412R1

CLEVIS, lift chain

1шт.

25

PO28402

PIN, 3/4 x 2-3/4 in. dld std-hd

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

26

463336R11

ROCKSHAFT

ASSEMBLY

1шт.

108657

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

1шт.

27

463329R1

PIN

break-away pivot

1шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

1шт.

17069R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, , ESNA 5/16" x 1 3/4", Slotted

1шт.

576484R1

LOCK PIN,3/16" x 1 3/4", Slotted

Pin, , ESNA 3/16" x 1 3/4", Slotted

1шт.

28

464335R1

EYE TRUNNION, balance spring shaft

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

29

464333R11

SHAFT, balance spring

1шт.

426899

NUT,Jam, 1"-8, G5

1 in. C-Z jam

3шт.

30

464079R1

SPRING

balance

1шт.

31

468233R1

DEFLECTOR, hay, for farmall tractor

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCRWE, 3/4 x 4-1/4 C-Z cap

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.
