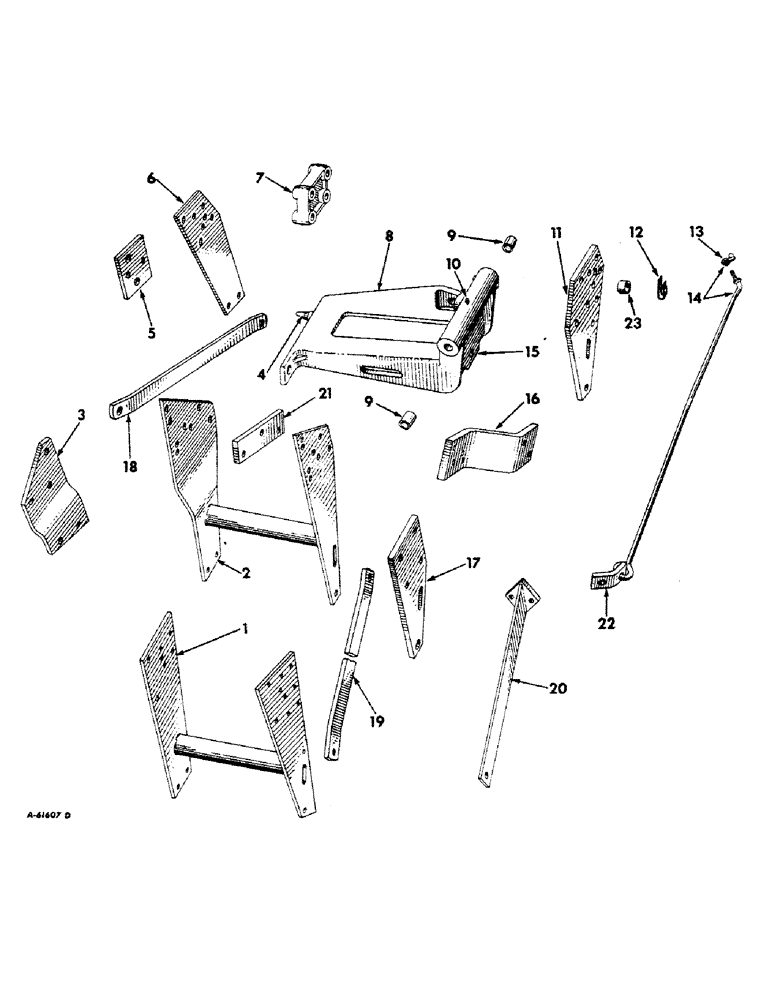

Запчасти Case IH 110 (C-02) - MAIN FRAME, SIDE MOUNTING PLATES AND STAY ROD
№
Артикул
Название
Примечание
Количество
1
463528R93
PLATE ASSEMBLY, mounting, units C, D, H and L
1шт.
SCREW, 5/8 x 1-5/8 C-Z cap, unit C
1шт.
SCREW, 5/8 x 2-1/4 in. C-Z cap, unit C and L
2шт.
413-1056
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
SCREW, 5/8 x 3-1/2 in. C-Z cap, unit C and L
3шт.
SCREW, 3/4 x 2 in. C-Z cap, units D and H
3шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, , Unit C and L 5/8"
6шт.
WASHER, 3/4 in. C-Z lock, units D and L
3шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8-11 x 2 in. C-Z hex-hd cap, unit L
3шт.
2
463529R93
PLATE, mounting, units E and J
1шт.
413-1232
BOLT,Hex, 3/4" - 10 x 2", Gr 5
SCREW, 3/4 x 2 in. C-Z cap, 6 for unit E, 2 for unit J
1шт.
414-1024
BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5
3/4 x 2-3/4 in. C-Z cap, 4 for unit J
1шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8 x 2 in. C-Z cap, 4 for unit J
1шт.
426-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8
SCREW, 5/8 x 2-1/2 in. C-Z cap, for unit J
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4", 4 for unit E, 3 for unit J
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, , 4 for Unit J 5/8"
1шт.
2
479003R92
PLATE ASSY, mounting, unit K
1шт.
413-1232
BOLT,Hex, 3/4" - 10 x 2", Gr 5
SCREW, 3/4 x 2 in. C-Z hex-hd cap
6шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
6шт.
3
463387R3
PLATE, left mounting, unit F
1шт.
413-1080
BOLT,Hex, 5/8" - 11 x 5", Gr 5
SCREW, 5/8 x 1-1/2 in. C-Z cap, Course Threads
3шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
3шт.
4
463324R1
PIN, left hitch
1шт.
520177R11
PIN
ASSEMBLY, quick attachable
1шт.
576482R1
LOCK PIN,5/16" x 2", Slotted
ESNA 5/16" x 2", Slotted
1шт.
5
463385R1
PLATE, lead adjustment
1шт.
271548
BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5
SCREW, 5/8 x 1-3/4 in. C-Z cap
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
6
463381R3
PLATE, left mounting, units A, B, and G
1шт.
413-1056
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
SCREW, 5/8 x 3-1/2 in. C-Z cap, 3 for unit A, 240 tractors, 4 for unit A, 404 and 2404 tractor
1шт.
413-1232
BOLT,Hex, 3/4" - 10 x 2", Gr 5
SCREW, 3/4 x 2 in. C-Z cap, units B and G
3шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, , 3 for Unit A, 240 tractor; 4 for Unit A, 404 and 2404 tractor 5/8"
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4", Units B and G
3шт.
7
463386R3
SPACER
left mounting, units A, C and L
1шт.
8
464077R11
FRAME
ASSEMBLY, main
1шт.
426099
NUT,3/4"-16, G5
3/4 in. C-Z
1шт.
466322
GEAR SET
SCREW, 3/4 UNF x 2-1/2 in. cap
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
522473R1
WASHER
49/64 x 1-3/4 x 1/8 in., hardened
1шт.
9
463322R1
BUSHING
main frame
2шт.
10
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
1шт.
11
463382R3
PLATE, right mounting, units A, B and G
1шт.
413-1080
BOLT,Hex, 5/8" - 11 x 5", Gr 5
SCREW, 5/8 x 1-1/2 in. C-Z cap, unit A, Course Threads
1шт.
413-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
SCREW, 5/8 x 2-1/4 in. C-Z cap, 2 for unit A, 240 tractor, 4 for unit A, 404 and 2404 tractor
1шт.
413-1232
BOLT,Hex, 3/4" - 10 x 2", Gr 5
SCREW, 3/4 x 2 in., C-Z cap, units B and G
3шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, , 3 for Unit A, 240 tractor; 4 for Unit A, 404 and 2404 tractor 5/8"
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4", Units B and G
3шт.
12
463380R1
CLIP
FASTENER, stay rod
1шт.
413-1016
BOLT,Hex, 5/8" - 11 x 1", Gr 5
SCREW, 5/8 x 1 in. cap
1шт.
413-1216
BOLT,Hex, 3/4" - 10 x 1", Gr 5
SCREW, 3/4 x 1 in. cap
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
1шт.
13
M487
CRANK
stay rod
1шт.
14
463502R92
ROD
W/CRANK, stay
1шт.
14
469660R1
ROD, stay, special, for used with 2000 or 3000 loaders
1шт.
15
463323R1
PIN, right hitch
1шт.
16
463524R2
BRACE, RH, mounting plate, unit A
1шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8 x 2 in. C-Z cap
2шт.
271722
TIP,Hex, 5/8" - 11 x 1 7/8", Gr 5
SCREW, 3/4 x 2-1/4 in. C-Z cap
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
17
463388R2
PLATE
right mount, unit F
1шт.
121547
PIN
SCREW, 5/8 x 1-3/4 in. C-Z cap
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
18
463618R2
BRACE, left mounting, unit A
1шт.
495-11053
WASHER,1/2", SAE
17/32 x 1-1/16 in. x 13 ga C-Z
1шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8 x 2 in. C-Z cap
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
SCREW, 1/2-13 x 1-1/2 in. C-Z hex-hd cap
1шт.
19
463830R1
BRACE, RH mounting plate, unit C
1шт.
271722
TIP,Hex, 5/8" - 11 x 1 7/8", Gr 5
SCREW, 3/4 x 2-1/4 in. C-Z cap
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
20
464232R11
BRACE, right mounting, unit L
1шт.
413-1080
BOLT,Hex, 5/8" - 11 x 5", Gr 5
SCREW, 5/8 x 1-1/2 in. C-Z cap, Course Threads
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
21
464242R1
PLATE, spacer, for Farmall H series tractors only
4шт.
22
469661R1
ANCHOR, stay rod, special, for use with 2000 or 3000 loaders
1шт.
413-1080
BOLT,Hex, 5/8" - 11 x 5", Gr 5
SCREW, 5/8 x 1-1/2 in. C-Z cap, Course Threads
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
120369
NUT,3/8"-24, G5
WASHER, 17/32 x 1-1/16 in. x .095 ga
1шт.
19700R91
FITTING
3/16 x 45 degree elbow, drive, type lubrication, units A, C and L, steering knuckle of tractor
1шт.
PO17652
SPACER, unit A
1шт.
23
519568R1
BUSHING, stay rod fastener
1шт.
413-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
Hex, 3/4"-10 x 2-1/2", G5, Use for 424 and 2424 tractors
1шт.
Выбрано товаров: 95
