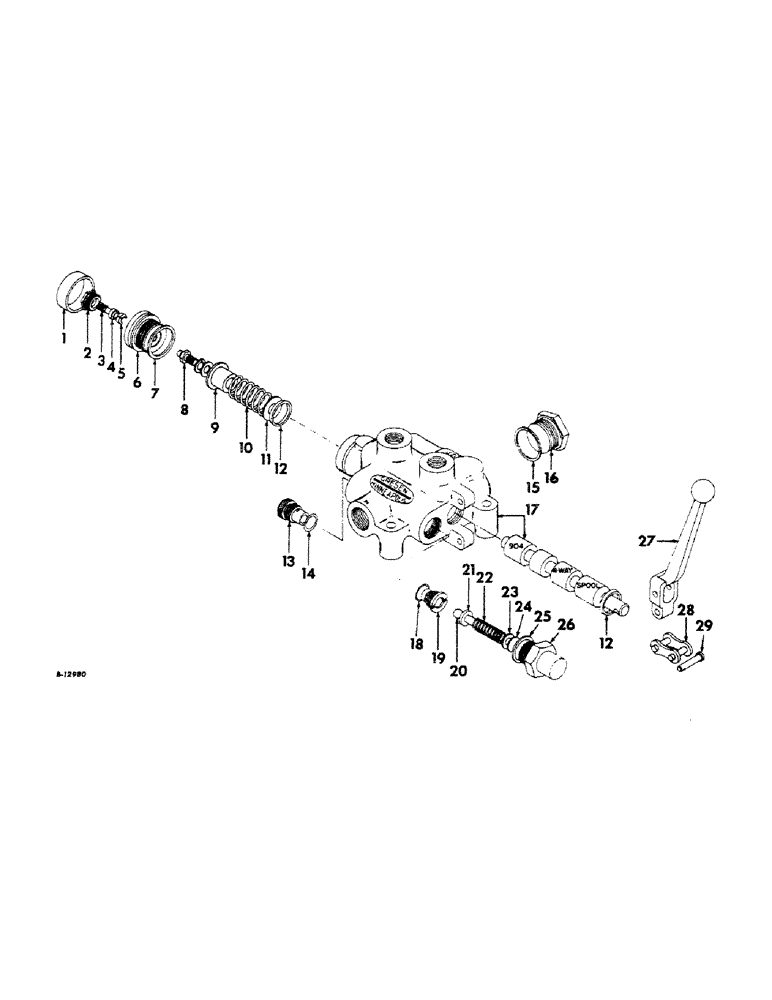

Запчасти Case IH 110 (C-28) - HYDRAULIC MOTOR OPERATING VALVE

477810R91

VALVE

ASSY, hyd motor operating valve

1шт.

1

663034R1

CYLINDER END CAP

CAP, bonnet

1шт.

2

478477R1

CAP, spring

1шт.

3

635779R1

SPRING

1шт.

4

635778R1

HOLDER

1шт.

5

635777R1

FINGER

detent

1шт.

6

635776R1

CAP

adapter

1шт.

7

635775R1

WASHER, cap

1шт.

8

635972R1

ADAPTER

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22910V

WASHER, 21/64 x 5/8 in. x 18 ga

1шт.

9

663022R1

COLLAR

STOP, collar

1шт.

10

635772R1

SPRING, stop collar

1шт.

11

149372R1

WASHER

stop

1шт.

12

663032R1

O-RING

SEAL, spool

2шт.

13

666722R1

PLUG

back check guide

1шт.

14

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32 in.

1шт.

15

635971R1

GASKET, sleeve

1шт.

16

478483R1

PLUG, body

1шт.

17

BODY ASSY, valve, not serviced separately, order valve assy

1шт.

18

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 5/64 in.

1шт.

19

380362R1

SEAT

relief valve

1шт.

20

17014R1

BALL

7/16 grade 25 metal

1шт.

21

478480R1

GUIDE, spring

1шт.

22

478481R1

SPRING

relief

1шт.

23

635788R1

WASHER

23/64 x 11/16 x 12 ga

1шт.

24

380365R1

SHIM

relief valve body

1шт.

25

663029R1

GASKET

relief valve body

1шт.

26

478482R1

BODY, relief valve

1шт.

27

380366R1

HANDLE

valve

1шт.

28

1397D

DRAG LINK

LINK, roller chain

1шт.

187357

PIN, 1/16 x 1-1/2 in. cotter

1шт.

29

Q711

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 in. std-hd

1шт.

19454R1

PIN

5/64 x 7/16 in. cotter

1шт.
