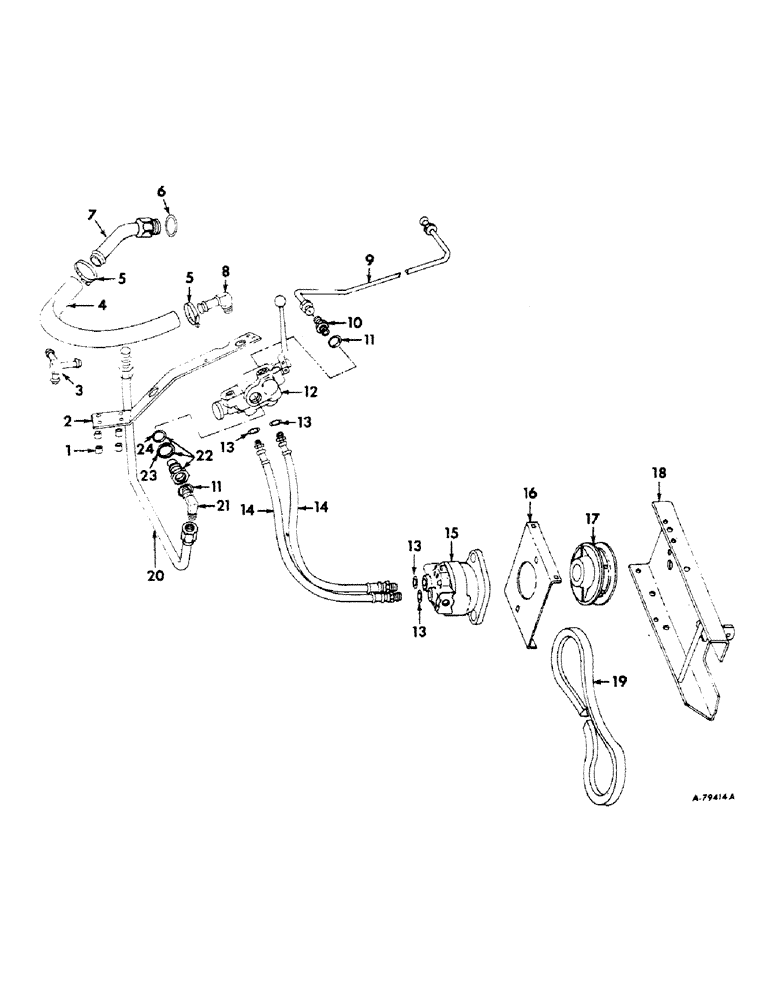

Запчасти Case IH 110 (C-25) - HYDRAULIC DRIVE, FOR INTERNATIONAL 504, 606, 2504 AND 2606 TRACTORS

1

P13334

SPACER, tractor fender

4шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2 x 2 in. C-Z cap

4шт.

PO10535

WASHER

17/32 x 1-1/4 in. x 11 ga

4шт.

2

477811R1

BRACKET, valve mounting

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 in. C-Z mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

3

477815R1

TEE, return line lateral, required w/loader

1шт.

4

478255R1

HOSE, dump line 20 in. long

1шт.

5

274086R91

HOSE CLAMP,0.94/1.63 Type F Worm

CLAMP, hose, 2 required w/o loader, 5 required w/loader

1шт.

6

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1-11/16 x 1-1/2 x 1/8 in.

1шт.

7

378920R92

TUBE ASSY

1шт.

8

477814R1

ELBOW

return line

1шт.

9

477812R11

PIPE ASSY, pressure

1шт.

10

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 37 degree flare short swivel

2шт.

11

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

.924 x .116

3шт.

12

477810R91

VALVE

ASSY, hyd motor operating, for components see list of parts under detail of hydraulic motor operating valve

1шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

4шт.

14

460946R91

HOSE, hyd 28 in. long

2шт.

15

477900R91

MOTOR ASSY, hydraulic, commercial shearing and stamping, for components see list of parts under detail of hydraulic motor, replaces 477807R91

1шт.

16

477808R1

BRACKET, hyd

1шт.

19285R1

BOLT

1/2 x 1-1/4 in. C-Z crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

17

477809R2

PULLEY

drive

1шт.

139063

SCREW, 3/8 x 5/16 in. cup-pt hex. socket set

4шт.

18

477806R21

SHIELD

ASSY, front drive mounting

1шт.

15043R1

BOLT, 5/8 x 1-1/2 in. short sq-nk crg

2шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

102639

NUT,5/8"-11, G5

2шт.

110454

1/2 x 2 in. sq-hd cup-pt set

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

19

567947R2

V-BELT,22.33 mm W

Drive pulley 22.33 mm W

1шт.

20

477813R11

PIPE ASSY, power beyond

1шт.

21

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

37 degree flared 90 degree

1шт.

22

477816R91

SLEEVE W/GASKET AND SEAL, power beyond

1шт.

23

635971R1

GASKET, power beyond sleeve

1шт.

24

666218R1

SEAL

SEAL, power beyond sleeve

1шт.
