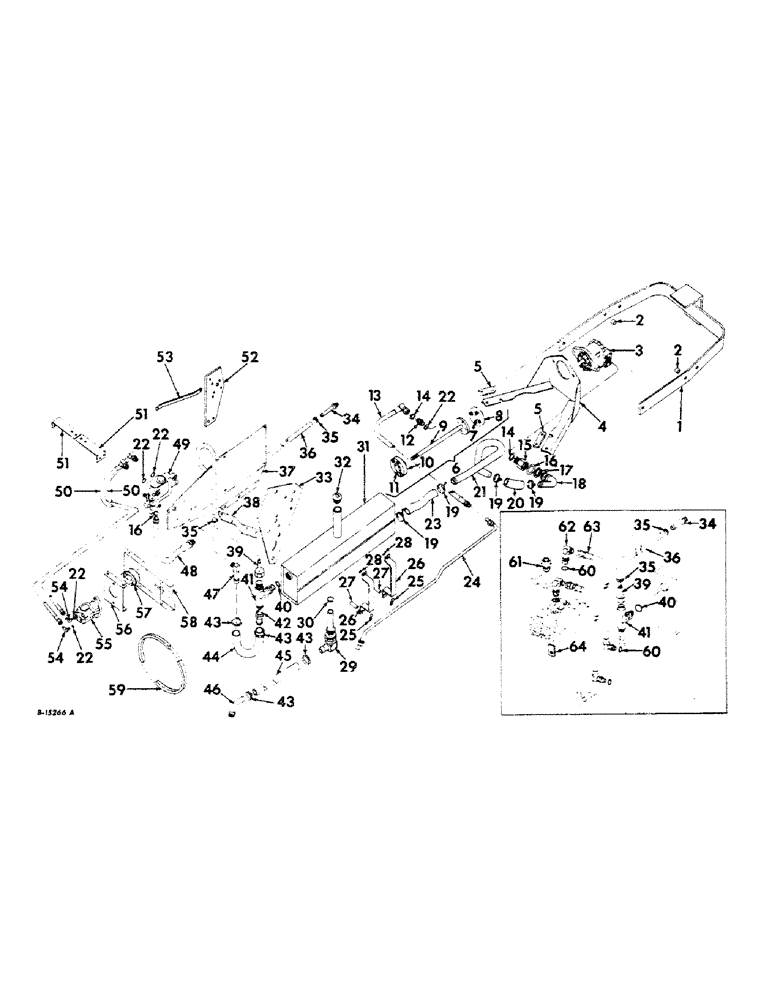

Запчасти Case IH 110 (C-22) - HYDRAULIC DRIVE AND RELATED PARTS, FOR INTERNATIONAL 404 AND 2404 SERIES TRACTORS

1

469338R91

GUARD ASSEMBLY, pump, unit A

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

2

C13756

SPACER

pump guard, 4 for unit A

1шт.

3

479145R92

PUMP ASSY, front PTO driven, unit A, only serviceable item is

1шт.

168318C93

SEAL KIT

seal repair

1шт.

120284

SCREW

NUT, 1/2 in. C-Z

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 in. C-Z cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

WASHER, 1/2 in. C-Z lock

2шт.

4

379337R11

BRACKET ASSEMBLY, front PTO driven pump, unit A

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2 x 1-3/4 in. C-Z cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

446221

WASHER,7/16"

1/2 x 1-1/8 in. x .083 ga C-Z

2шт.

5

379340R1

SPACER, pump bracket, 2 for unit A, International tractors

1шт.

6

479146R91

COUPLING ASSEMBLY, front PTO driven pump, unit A

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8 x 1-1/2 in. C-Z cap

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 in. x .065 ga

4шт.

7

380810R1

BLOCK

splined hub, 4 for unit A

1шт.

8

479160R91

HUB

ASSEMBLY, keyed, unit A

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 5/16-18 x 1-1/2 in. C-Z hex-hd cap

4шт.

442825

NUT, 5/16-18 hex. lock

4шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8 x 3/4 x .051 C-Z

1шт.

9

379342R1

FLANGE AND SHAFT ASSEMBLY, unit A

1шт.

10

378870R91

HUB

ASSEMBLY, splined, unit A

1шт.

11

380809R1

BLOCK

splined hub, 4 for unit A

1шт.

12

479156R1

CONNECTOR, pressure hose, unit A

1шт.

13

480998R91

HOSE, pump pressure 19 inches long, unit A

1шт.

14

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1.475 x 1.711 x .118 in., for unit A

2шт.

15

479158R1

CONNECTOR, reducer, unit A

1шт.

16

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-7/32 x 7/64 in., 2 for unit A

1шт.

17

9410065

NUT, tube lock, unit A

1шт.

18

468244R91

TUBE ASSEMBLY, connector, unit A

1шт.

19

39142H

COLLAR CLAMP

CLAMP, hose, 4 for unit A

1шт.

20

470387R1

HOSE, front suction, 1-1/4 in. ID x 4-3/4 in. long, unit A

1шт.

21

470409R1

TUBE, suction, unit A

1шт.

22

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32 in., 6 for unit A

1шт.

23

468254R1

HOSE, suction, 1-1/4 in. ID x 10-7/16 in. long, unit A

1шт.

24

468241R11

TUBE ASSEMBLY, pressure, unit A

1шт.

25

468256R1

CLAMP

pressure tube, 2 for unit A

1шт.

26

473512R1

STRAP, reservoir, 2 for unit A

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8 x 1-1/2 in. C-Z cap

2шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8 x 3-1/4 in. C-Z cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

27

468460R1

SPACER

reservoir long, 2 for unit A

1шт.

28

568395R1

SPACER,5/8" Tube x 5/8"

reservoir short, 2 for unit A

1шт.

29

479149R91

ELBOW, 90 degree hose stem

1шт.

30

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64 in.

1шт.

31

473511R92

RESERVOIR ASSEMBLY, unit A

1шт.

32

474617R1

PLUG, reservoir filler

1шт.

33

463382R3

PLATE, mounting RH

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8 x 1-1/2 in. C-Z cap, unit B

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8 x 2 in. C-Z cap, 3 for unit A, 4 for unit B

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 3 for Unit A, 5 for Unit B 5/8"

1шт.

34

479154R91

FITTING, power steering tube, tractors with 3/8 in. OD tubing

1шт.

34

479155R91

FITTING, power steering tube, tractors w/1/2 in. OD tubing

1шт.

35

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, hose

2шт.

36

479151R1

HOSE, power steering, 3/8 in. ID x 26 in. long

1шт.

37

479147R2

PLATE, reservoir mounting, unit A

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8 x 1-3/4 in. C-Z cap

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8 x 2-1/4 in. C-z cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

38

463524R2

BRACE, mounting RH

1шт.

280954

NUT,3/4"-10, G5

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8 x 1-1/2 in. C-Z cap

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 5/8 x 2-1/4 in. C-Z cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

39

479153R91

TUBE, power steering hose

1шт.

40

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1-11/64 x 1-13/32 x 7/64 in.

1шт.

41

9411122

TEE,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring Br

reservoir

1шт.

42

479152R91

TUBE, valve to reservoir, unit A

1шт.

43

274086R91

HOSE CLAMP,0.94/1.63 Type F Worm

CLAMP, hose, 4 for unit A, 2 for unit B

1шт.

44

479148R1

HOSE, valve to reservoir, 1 in. ID x 15 in. long, unit A

1шт.

45

476902R1

HOSE, over-flow, 40-1/2 in. long, will work for 636342R1

1шт.

46

479150R91

ELBOW, over-flow hose

1шт.

47

477814R1

ELBOW

return line, unit A

1шт.

48

479363R91

HOSE, pressure, unit A

1шт.

49

477810R91

VALVE

ASSEMBLY, hydraulic motor operating, for components see list of parts under details of hydraulic motor operating valve, unit A

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8 x 2-1/2 in. C-Z cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

50

653319R91

HOSE, hydraulic motor, 40 in. long, 2 for unit A

1шт.

51

378174R1

BRACKET, manifold junction block RH, 2 used on tractors w/o RH front manifold, unit A

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 in. C-Z cap

6шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8 x 2-1/2 in. C-Z cap, used on tractors w/o RH front manifold

2шт.

131099

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

52

463381R3

PLATE, mounting LH

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8 x 3-1/2 in C-Z cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

463386R3

SPACER

mounting plate

1шт.

53

463618R2

BRACE, mounting plate LH

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 in. C-Z

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 5/8 x 1-1/2 in. C-Z cap

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8 x 2 in. C-Z cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

120369

NUT,3/8"-24, G5

WASHER, 17/32 x 1-1/8 in. x 13 ga

1шт.

54

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

hydraulic motor hose

2шт.

55

477900R91

MOTOR ASSEMBLY, hydraulic, for components see list of parts under details of hydraulic motor

1шт.

56

477808R1

BRACKET, hydraulic motor mounting

1шт.

19285R1

BOLT

1/2 x 1-1/4 in. C-Z crg

4шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

57

477809R2

PULLEY

drive, unit A

1шт.

57

479144R1

PULLEY, drive, unit B

1шт.

139063

SCREW, 3/8 x 5/16 in. cup-pt hex socket set

4шт.

58

477806R21

SHIELD

ASSEMBLY, front drive mounting

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

102639

NUT,5/8"-11, G5

2шт.

15043R1

BOLT, 5/8 x 1-1/2 in. crg

2шт.

NLS

NO LONGER SERVICED

1/2 x 2 in. sq-hd cup-pt set

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

59

567947R2

V-BELT,22.33 mm W

Drive, Unit A 22.33 mm W

1шт.

59

M32812

V-BELT,0.88" W x 52.41" L

0.88" W 52.41" L, Drive, Unit B

1шт.

60

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32 in., 4 for unit B

1шт.

61

471494R91

RESTRICTOR, unit B

1шт.

62

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

hydraulic motor hose, 2 for unit B

1шт.

63

653337R91

HOSE, hydraulic motor, 49 in. long, 2 for unit B

1шт.

64

484665R1

BAR, valve latch, unit B

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z cap

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 1/16 C-Z

3шт.

425-1516

JAM NUT,Jam, 1"-14, G5

1 in. jam, crankshaft, unit A

1шт.

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 5/8 hyd 37 degree tube

2шт.

9403334

PLUG,7/8"-14, 37 Degree

for RH manifold, unit A, 2 for unit B

1шт.

9403333

PLUG,3/4"-16, 37 Degree

for tractors with 1/2 in. power steering tube

1шт.

9403371

CAP,37 Degree, 9/16"-18

for tractors with 3/8 in. power steering tube

1шт.
