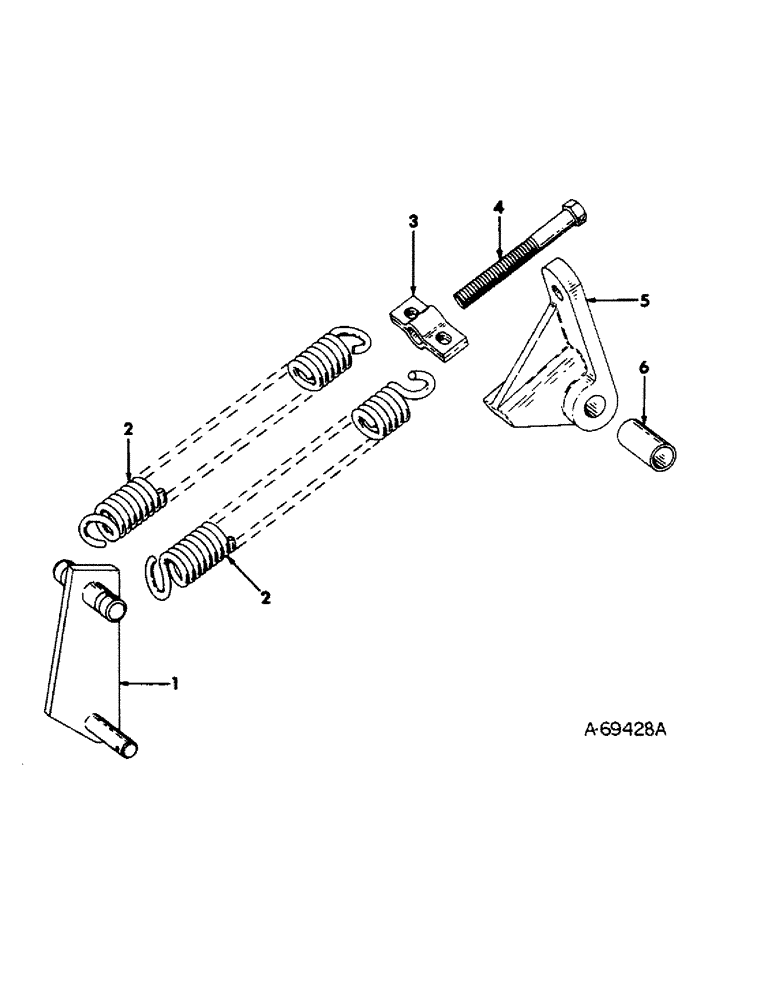

Запчасти Case IH 110 (C-21) - OUTER SHOE BALANCE SPRING ATTACHMENT

1

465486R21

ARM, balance spring

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

16066R1

WASHER

25/32 x 1-1/2 in. 16 ga

1шт.

2

465945R1

SPRING

outer shoe balance

2шт.

3

465489R11

BRACKET, spring anchor

1шт.

4

461723R1

BOLT,5/8" - 11 x 6", Grade 5

5/8 x 6 in. C-Z mach

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 in. C-Z jam

2шт.

5

465485R1

ANCHOR, balance spring

1шт.

6

M24975

SPACER,1" Pipe x 2 3/8"

pipe

1шт.
