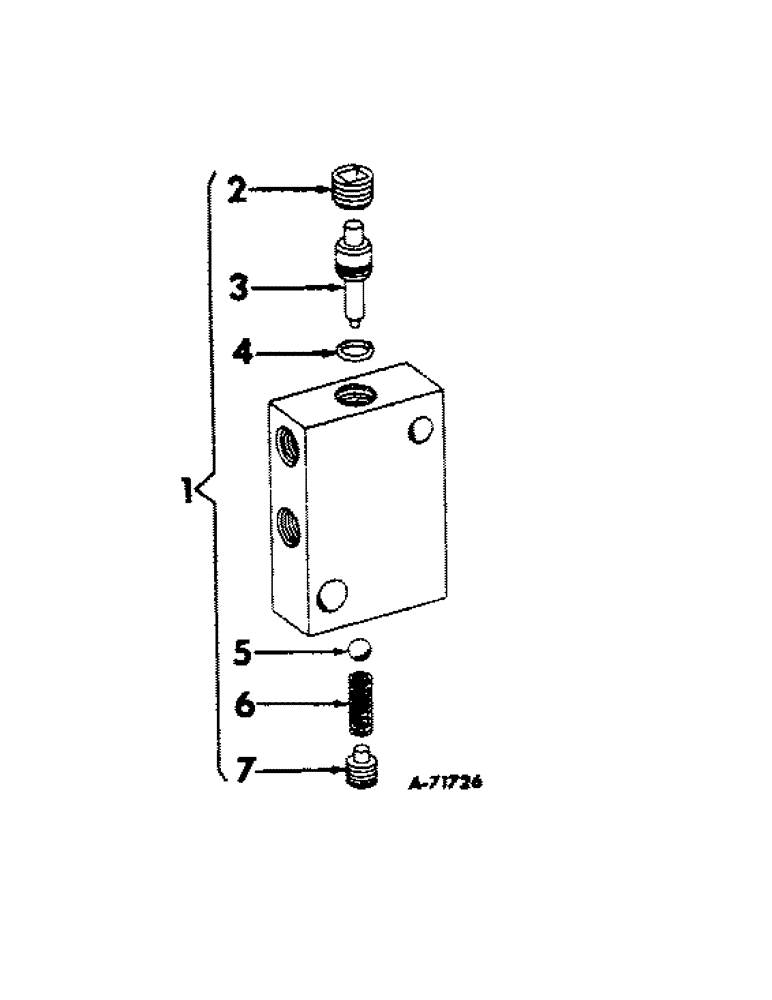

Запчасти Case IH 110 (C-18A) - HYDRAULIC CHECK VALVE

1

VALVE ASSY W/INSTRUCTION, check, order component parts

1шт.

2

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG, 3/4 in. sq socket

1шт.

3

362707R3

PISTON

actuator check valve

1шт.

4

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32 in.

1шт.

5

17016R1

BALL,1/2" Dia

1шт.

6

372649R1

SPRING

check valve

1шт.

7

362728R1

PLUG, check valve

1шт.
