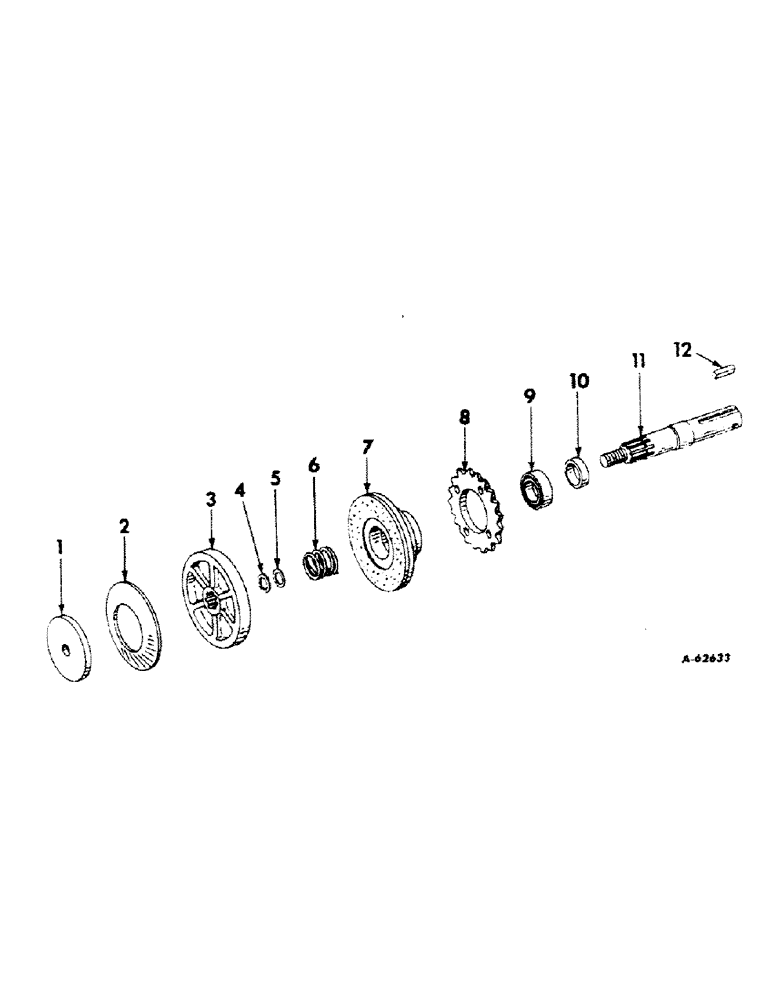

Запчасти Case IH 110 (C-16) - SLIP CLUTCH ATTACHMENT

1

463368R1

RETAINER, Belleville spring washer

1шт.

2

460235R1

WASHER

clutch Belleville spring

1шт.

3

463367R1

PLATE, clutch drive

1шт.

4

464254R1

SHIM, clutch adjustment 32 ga, or as required

7шт.

5

464255R1

SHIM, clutch adjustment 21 ga

1шт.

6

464266R1

SPRING, clutch throw-out

1шт.

7

463365R11

CARRIER ASSEMBLY, driven sprocket

1шт.

8

463366R1

SPROCKET, driven, 23T

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

463364R91

BALL BEARING,30 mm ID x 55 mm OD x 13 mm

sprocket carrier ball

1шт.

10

463363R1

SPACER BEARING

1шт.

11

463362R1

SHAFT, rear drive, 1960

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, , ESNA 3/16" x 1", Slotted

1шт.

425255

PIN, rear drive shaft yoke, 5/16 x 2-3/8 in. std-chamfered straight

1шт.

11

464248R1

SHAFT, rear drive, 1961 and since

1шт.

19263R1

LOCK NUT,Hex, 5/8" - 18

NUT, 5/8UNF esna stop

1шт.

12

Q1482

KEY,5/16" Sq x 1", Par

5/16 x 5/16 x 1 sq parallel

1шт.
