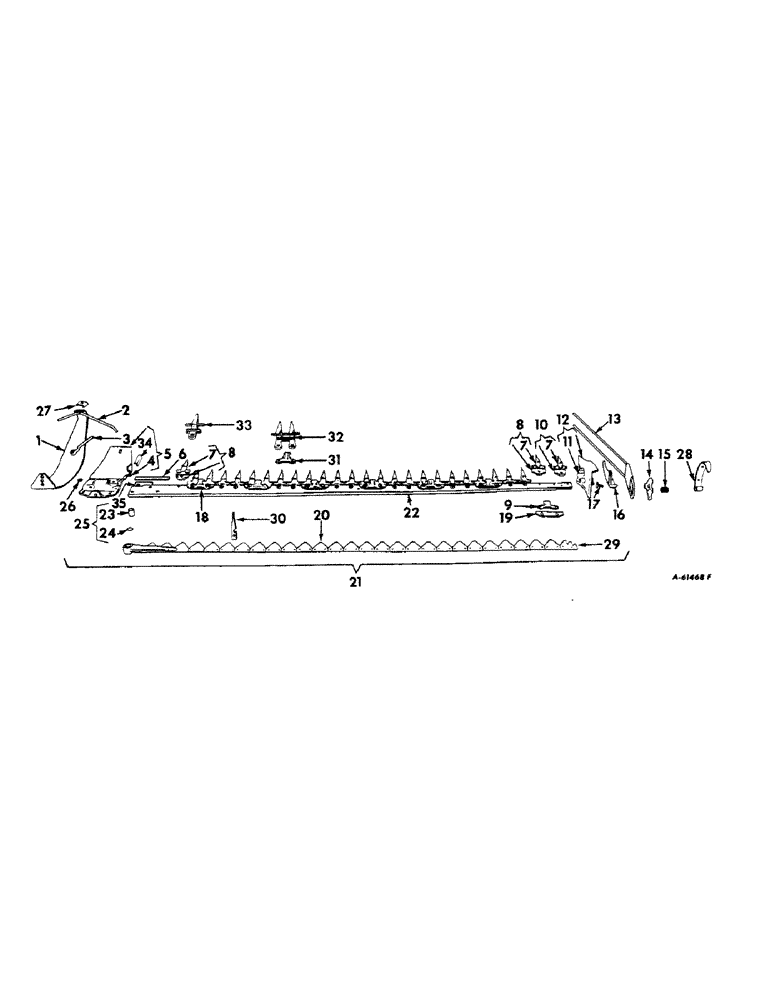

Запчасти Case IH 110 (C-12) - CUTTER BARS

1

462743R1

SOLE

stub type inner shoe, International super A, super A1, 100, 130, 140, 240, 300, 330, 340, 350, 404, 2404, 2404 Lo Boy, 424, 2424, 2424 Lo Boy, 460 and B-275 tractors also Farmall super A, super A-1, 100, 130 and 140 tractors

1шт.

1

458966R1

SOLE

divider type inner shoe, Farmall H, M, MD, super H, M, MD, 230, 240, 300, 340, 350, 400, 450, 450, 560 and 706 tractors

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT W/NUT, 1/2 x 1-1/2 in. crg

1шт.

17448R1

BOLT (SPREADER)

BOLT W/NUT, 1/2 x 1-1/4 in. mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

76730H

WASHER

17/32 x 1-1/2 in. x 11 ga

1шт.

2

463405R1

ROD

inner shoe upper grass, International super A, super A1, 100, 130, 140, 240, 300, 330, 340, 350, 404, 2404, 2404 Lo Boy, 424, 2424, 2424 Lo Boy, 460 and B-275 tractors also Farmall super A, super A1, 100, 130 and 140 tractors

1шт.

2

463404R1

ROD

inner shoe upper grass, Farmall, H, M, MD, super H, M, MD, 230, 240, 300, 350, 400, 450, 460, 560 and 706 tractors

1шт.

3

461281R1

ROD

inner shoe lower grass

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 in. crg

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

76730H

WASHER

17/32 x 1-1/2 in. x 11 ga flat

1шт.

102637

NUT,1/2"-13, G5

1шт.

4

458965R1

PLATE

LEDGER PLATE, inner shoe

1шт.

990804R91

RIVET, 3/16 x 1-1/8 in., 54 degree cstk-hd, one pound package

2шт.

5

486934R91

SHOE

ASSY, inner, will work for 458962R1

1шт.

21371R1

SCREW

W/NYLON PELLET INSERT, 5/8-11 x 2 in. hex-hd cap

1шт.

21398R1

SCREW

W/NYLON PELLET INSERT, 5/8-11 x 2-1/4 in. hex-hd cap

2шт.

486707R1

WASHER

3шт.

6

458942R1

BAR

SPACER, cutter bar, not used with 9 ft. bar

1шт.

7

455634R1

PLATE

LEDGER PLATE, plain serrated, 18 for 5 ft. 25 for 7 ft. 33 for 9 ft.

1шт.

14022R1

RIVET

3/16 x 1-3/8 in., 74 degree csk-hd, use w/heavy guard and forged guard, 1960, 1962, 18 ft. for 5 ft, 27 for 7 ft and 34 for 9 ft.

1шт.

407039R91

RIVET,Countersunk, 4.76mm OD x 25.4mm L

3/16 x 1 in., 74 degree csk-hd semi-tubular, 1963, one pound package, 18 for 5 ft., 25 for 7 ft and 34 for 9 ft.

1шт.

7

457608R1

CUTTER BAR

LEDGER PLATE, cr-pltd serrated, 22 for 6 ft. 25 for 7 ft.

1шт.

19945R1

RIVET, 3/16 x 1-3/8 in., 74 degree csk-hd cd-pltd, use w/heavy guard and forged guard, 1960-1962, 22 for 6 ft. 27 for 7 ft.

1шт.

407039R91

RIVET,Countersunk, 4.76mm OD x 25.4mm L

3/16 x 1 in., 74 degree, csk-hd semi-tubular, 1963, 22 for 6 ft., 25 for 7 ft., one pound package

1шт.

8

MC2041Z

GUARD

GUARD W/PLAIN SERRATED LEDGER PLATE, 455634R1, heavy, 18 for 5 ft., 24 for 7 ft., and 32 for 9 ft.

1шт.

8

457676R21

GUARD

W/PLAIN SERRATED LEDGER PLATE, 455634R1, forged, 26 for 7 ft.

1шт.

8

457743R92

GUARD

W/CR-PLTD SERRATED LEDGER PLATE 457608R1, heavy, 22 for 6 ft., 24 for 7 ft.

1шт.

8

459184R91

GUARD

W/CR-PLTD SERRATED LEDGER PLATE, 457608R1, forged, 26 for 7 ft.

1шт.

8

484000R11

GUARD

W/PLAIN SERRATED LEDGER PLATE, 455634R1, knife, for cutter bar w/3 in. guard spacing, 26 for 7 ft.

1шт.

9

MA812

SUPPORT

HOLDER, low arch knife

1шт.

10

MC2043Z

GUARD

W/PLAIN SERRATED LEDGER PLATE, 455634R1, heavy outer, 1 used for 5 ft., 7 ft. and 9 ft.

1шт.

10

458793R21

GUARD W/PLAIN SERRATED LEDGER PLATE, 455634R1, forged outer, 1 used for 7 ft.

1шт.

10

457745R92

GUARD

W/CR-PLTD SERRATED LEDGER PLATE, 457608R1, heavy outer, 1 used for 6 ft. and 7 ft.

1шт.

10

459186R91

GUARD

W/CR-PLTD SERRATED LEDGER PLATE, 457608R1, forged outer, 1 used for 7 ft.

1шт.

11

MA330

LARGE PLATE

LEDGER PLATE, outer shoe serrated

1шт.

990720R91

RIVET, 3/16 x 11/16 in., 54 degree csk-hd, one pound package

1шт.

990717R91

RIVET, 3/16 x 1 in., 54 degree csk-hd, one pound package

1шт.

12

MF729X

SHOE

W/LEDGER PLATE, outer

1шт.

M805X

BOLT AND NUT

BOLT W/NUT, outer shoe

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

13

463326R12

ROD ASSY.

ROD ASSEMBLY, outer shoe grass, not used with 5 ft. bar

1шт.

14

458979R1

CLAMP

outer shoe grass rod, not used with 5 ft. bar

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

W/NUT, 3/8 x 1-1/2 in. mach

1шт.

103417

COTTER PIN

PIN, 1/4 x 3/4 in. cotter

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

M1015

SPRING

grass rod tension, not used with 5 ft. bar

1шт.

13416R1

BOLT

1/2 x 3 in. sq-hd mach

1шт.

455388R1

NUT

1/2 in. hex-hd lock

1шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

16

M259X

SOLE

W/BRACKET, outer shoe

1шт.

17

D266X

BOLT AND NUT

W/NUT, outer shoe sole

1шт.

18

MB812

CLAMP

HOLDER, high arch knife

1шт.

19

MC468

PLATE ASSY.

WEARING PLATE, 5 for 5 ft. 6 for 6 ft. 7 for 7 ft. and 9 for 9 ft

1шт.

20

826723C1

KNIFE SECTION

SECTION, plain underserrated, 27 for 7 ft., 35 for 9 ft., replaces ME333

1шт.

990817R91

RIVET

no. 6 x 17/32 pln o/hds, 47 for 7 ft. 64 for 9 ft., one pound package

1шт.

20

457606R2

KNIFE SECTION

SECTION, cr-pltd underserrated, 27 for 7 ft.

1шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, 47, two pound package

1шт.

20

826725C1

KNIFE SECTION

SECTION, smooth, 27 for 7 ft., 35 for 9 ft., replaces MB333

1шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, 49 for 7 ft., 65 for 9 ft., two pound package

1шт.

20

826724C1

KNIFE SECTION

SECTION, smooth, heavy, 19 for 5 ft., 23 for 6 ft., 27 for 7 ft., and 35 for 9 ft., replaces M3331/2

1шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, 32 for 5 ft., 39 for 6 ft., 47 for 7 ft., 63 for 9 ft., two pound package

1шт.

20

826722C1

KNIFE SECTION

SECTION, underserrated, heavy, 19 for t ft., 23 for 6 ft., 27 for 7 ft. and 35 for 9 ft., replaces M22831

1шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, 32 for 5 ft., 29 for 6 ft., 47 for 7 ft. and 63 for 9 ft., two pound package

1шт.

20

457604R2

ASSEMBLY

SECTION, smooth cr-pltd, regular, 27 for 7 ft.

1шт.

20

457605R2

KNIFE SECTION

SECTION, smooth cr-pltd, heavy, 27 for 7 ft., 35 for 9 ft.

1шт.

20

457607R2

KNIFE SECTION

SECTION, underserrated cr-pltd, heavy, 27 for 7 fr. and 35 for 9 ft.

1шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, 47 for 7 ft. and 64 for 9 ft., two pound package

1шт.

20

478822R1

SECTION, plain smooth, heavy, wear resistant, 1960-1966, 27 for 7 ft., 35 for 9 ft.

1шт.

14751R1

RIVET, no. 6 x 9/16 in. small ov-hd, 47 for 7 ft. and 63 for 9 ft. Oval Hd, .203" x 9/16"

1шт.

20

478823R1

SECTION, smooth cr-pltd, heavy, wear resistant, 1960-1966, 27 for 7 ft., 35 for 9 ft.

1шт.

18649R1

RIVET, no. 6 x 9/16 in. cd-pltd small ov-hd, 47 for 7 ft., and 63 for 9 ft.

1шт.

20

478824R1

SECTION, plain underserrated, heavy, wear resistant, 1960-1966, 27 for 7 ft and 35 for 9 ft.

1шт.

14751R1

RIVET, no. 6 x 9/16 in. small ov-hd, 47 for 7 ft. and 63 for 9 ft. Oval Hd, .203" x 9/16"

1шт.

20

478825R1

SECTION, underserrated cr-pltd, heavy, wear resistant, 1960-1966, 27 for 7 ft and 35 for 9 ft.

1шт.

18649R1

RIVET, no. 6 x 9/16 in cd-pltd small ov-hd, 47 for 7 ft. and 63 for 9 ft.

1шт.

21

465111R92

KNIFE

W/SMOOTH PLAIN, heavy, sections, 1 used for 6 ft.

1шт.

21

463406R92

KNIFE

W/SMOOTH PLAIN, heavy, sections, 1 used for 5 ft.

1шт.

21

462381R92

KNIFE

W/SMOOTH PLAIN, heavy, sections, 1 used for 7 ft.

1шт.

21

463182R92

KNIFE

W/SMOOTH PLAIN, heavy, sections, 1 used for 9 ft.

1шт.

21

465112R92

KNIFE

W/UNDERSERRATED, heavy, sections, 1 used for 6 ft.

1шт.

21

463408R92

KNIFE

W/UNDERSERRATED, heavy, sections, 1 used for 5 ft.

1шт.

21

462380R92

KNIFE ASSY

KNIFE W/UNDERSERRATED, heavy, sections, 1 used for 7 ft.

1шт.

21

463159R92

KNIFE

W/UNDERSERRATED, heavy, sections, 1 used for 9 ft.

1шт.

21

458968R92

KNIFE ASSY

KNIFE W/UNDERSERRATED SECTION, 1 used for 7 ft.

1шт.

21

463180R92

KNIFE

W/PLAIN UNDERSERRATED SECTION, 1 used for 9 ft.

1шт.

21

462379R92

KNIFE ASSY

KNIFE W/SMOOTH PLAIN SECTIONS, 1 used for 7 ft.

1шт.

21

463160R92

KNIFE W/SMOOTH PLAIN SECTIONS, 1 used for 9 ft.

1шт.

21

460937R92

KNIFE

W/CR-PLTD UNDERSERRATED SECTIONS, 1 used for 7 ft.

1шт.

21

467748R91

KNIFE

W/CR-PLTD SMOOTH, heavy, sections, 1 used for 7 ft.

1шт.

21

467749R91

KNIFE

W/CR-PLTD UNDERSERRATED, heavy, sections, 1 used for 7 ft.

1шт.

21

472088R91

KNIFE ASSY

KNIFE W/CR-PLTD SMOOTH, regular, sections, 1 used for 7 ft.

1шт.

21

472089R91

KNIFE

W/CR-PLTD SMOOTH, regular, sections, 1 used for 9 ft.

1шт.

21

472090R91

KNIFE

W/CR-PLTD SMOOTH, heavy, sections, 1 used for 9 ft.

1шт.

21

472091R91

KNIFE

W/CR-PLTD UNDERSERRATED, heavy, sections, 1 used for 9 ft.

1шт.

21

478826R91

KNIFE W/SMOOTH PLAIN, heavy sections, wear resistant, 1960-1966, 1 used for 7 ft.

1шт.

21

478827R91

KNIFE W/SMOOTH PLAIN, heavy, sections, wear resistant, 1960-1966, 1 used for 9 ft.

1шт.

21

478828R91

KNIFE W/CR-PLTD SMOOTH, heavy, sections, wear resistant, 1960- 1966, 1 used for 7 ft.

1шт.

21

478829R91

KNIFE W/CR-PLTD SMOOTH, heavy, sections, wear resistant, 1960- 1966, 1 used for 9 ft.

1шт.

21

478830R91

KNIFE W/PLAIN UNDERSERRATED, heavy, sections, wear resistant, 1960-1966, 1 used for 7 ft.

1шт.

21

478831R91

KNIFE W/PLAIN UNDERSERRATED, heavy, sections, wear resistant, 1960-1966, 1 used for 9 ft.

1шт.

21

478832R91

KNIFE W/CR-PLTD UNDERSERRATED, heavy, sections, wear resistant, 1960-1966, 1 used for 7 ft.

1шт.

21

478833R91

KNIFE W/CR-PLTD UNDERSERRATED, heavy, sections, wear resistant, 1960-1966, 1 used for 9 ft.

1шт.

22

465113R1

BAR

cutter, 1 used for 6 ft.

1шт.

22

463410R1

BAR

cutter, 1 used for 5 ft.

1шт.

22

458974R1

BAR

cutter, 1 used for 7 ft.

1шт.

22

463183R2

BAR

cutter, 1 used for 9 ft.

1шт.

M805X

BOLT AND NUT

BOLT W/NUT, short guard, 9 for 5 ft., 11 for 6 ft., 13 for 7 ft., and 17 for 9 ft.

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT, long guard, 10 for 5 ft., 12 for 6 ft., 14 for 7 ft., and 18 for 9 ft.

1шт.

NLS

NO LONGER SERVICED

7/16 pln type 5, 1 per bolt

1шт.

23

458971R1

BRONZE BUSHING,25.43mm ID x 28.63mm OD x 35.18mm L

BUSHING, knife head

1шт.

24

458972R1

PLUG

knife head

1шт.

25

56692C91

PITMAN

HEAD ASSY, knife, replaces 462378R11 and 458969R11

1шт.

14768R1

RIVET, 5-1/2 x 1 pln o/hd Oval Hd, .211" x 1"

9шт.

26

458941R1

SHIM

inner shoe, .005

1шт.

27

461383R1

CLAMP

CLIP, grass rod

1шт.

28

M42147

SOLE

outer shoe, used on M2612X only, 1 used for 5 ft.

1шт.

BOLT W/NUT, 7/16 x 1-3/4 in. crg, 1 used for 5 ft.

1шт.

WASHER, 7/16 in. lock, 1 used for 5 ft.

1шт.

M806X

BOLT

W/NUT, outer shoe sole, 1 used for 5 ft.

1шт.

WASHER, 7/16 in. lock, 1 used for 5 ft.

1шт.

29

467457R11

KNIFE SECTION

SECTION W/RIVETS, smooth, regular, triplet end, cr-pltd

1шт.

29

467455R11

VALVE

SECTION W/RIVET, smooth, heavy, triplet end, cr-pltd

1шт.

29

467456R11

KNIFE SECTION

SECTION W/RIVETS, underserrated, heavy, triplet end, cr-pltd

1шт.

29

467458R11

KNIFE SECTION

SECTION W/RIVETS, underserrated, regular, triplet end, cr-pltd

1шт.

MB133

RIVET

no. 5-1/2 x 5/8 in. oval-hd cd-pltd, one pound package

1шт.

30

469975R3

GAUGE

guard lip

1шт.

31

472720R1

HOLDER

double windrower guard knife, 6 for 7 ft.

1шт.

32

613838R2

GUARD

standard, double steel windrower knife, 1960-1965, 12 for 7 ft., 16 for 9 ft.

1шт.

Double heat treated guard part number is 187346A1.

1шт.

32

483500R3

GUARD

standard, forged steel double knife, 1966, 12 for 7 ft., 16 for 9 ft.

1шт.

Double heat treated guard part number is 187346A1.

1шт.

33

472717R2

GUARD

single steel stub, 27 for 7 ft., 3 for 7 ft. double guard and 3 for 9 ft., 2 used with MC2041Z and 484000R11 guards

1шт.

Q3596X

BOLT

W/NUT, 7/16 x 1-21/32 no. 3 plow, 26 or 2 for 7 ft., for 472717R1 guard

1шт.

M806X

BOLT

W/NUT, 7/16 x 1-9/16 no. 3 plow, for 613838R1 guard, 12 for 7 ft.

1шт.

34

486708R1

SHIELD

inner shoe

1шт.

15068R1

BOLT, 7/16 x 1-1/4 in. sq-nk crg

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

1шт.

Q5028

WASHER

15/32 x 1 in. 11 ga

1шт.

35

488411R1

SHIM

spacer, or as required

1шт.

FOOTNOTE

1шт.
