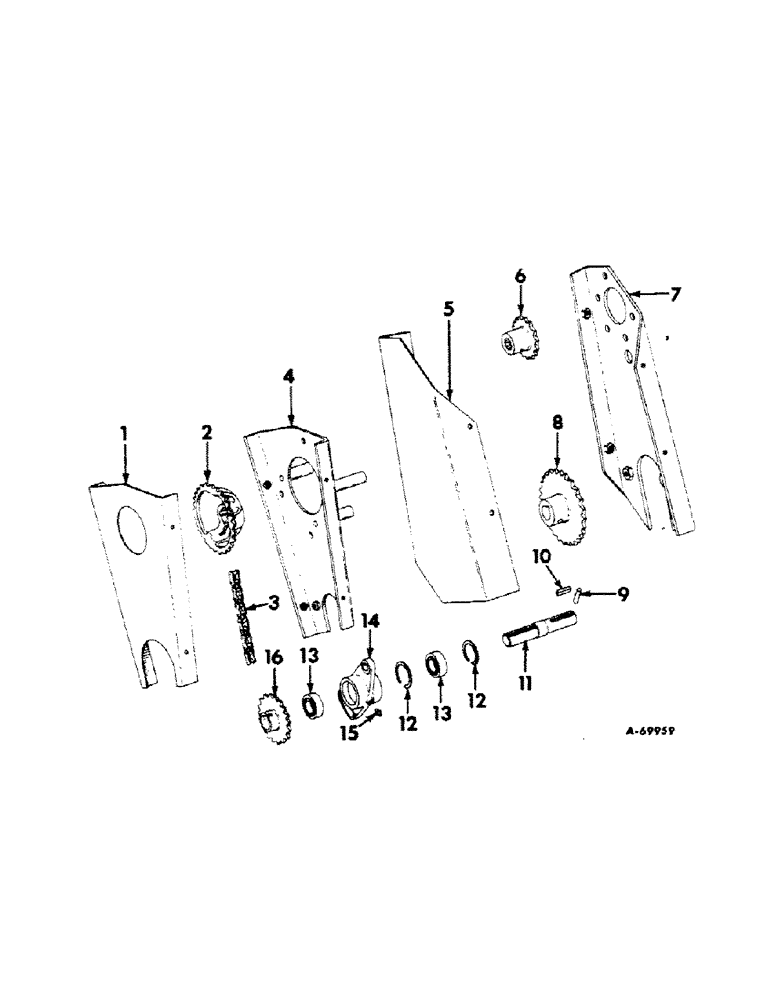

Запчасти Case IH 105 (B-08) - REAR DRIVE UNIT

1

463396R11

SHIELD, rear mounting, unit A

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 in. C-Z hex-hd cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

465176R2

SPROCKET ASSY.

SPROCKET, power take-off, 40-T, unit A

1шт.

3

CHAIN, drive, use 68 links of 5/8 in. pitch stock roller chain from a 10 ft. roll marked 1791-D. One connecting link 1310-D and one offset link 1315-D, unit A

1шт.

3

CHAIN, drive, use 58 links of 5/8 in. pitch stock roller chain from a 10 ft. roll marked 1791-D, two connecting links 1310-D and one offset link 1315-D, unit B

1шт.

4

463393R11

PLATE

ASSY, rear mounting, unit A

1шт.

16835R1

BOLT, 7/16 x 7-3/4 in. mach

3шт.

NLS

NO LONGER SERVICED

WASHER, 7/16 in. lock

3шт.

W6652

WASHER

15/32 x 1 in. x 16 ga

6шт.

5

465524R11

SHIELD, rear drive, unit B

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4 x 5/8 in. C-Z cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

6

465525R91

SPROCKET, drive, 16-T, unit B

1шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

7

465523R11

PLATE ASSY, rear mounting, unit B

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z cap

3шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8 x 1-1/2 in. C-Z cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

8

465527R91

SPROCKET, driven, 29-T, unit B

1шт.

9

19355R1

LOCK PIN,3/16" x 2", Slotted

PIN, , ESNA 3/16" x 2", Slotted

1шт.

9

576482R1

LOCK PIN,5/16" x 2", Slotted

ESNA 5/16" x 2", Slotted

1шт.

10

Q1482

KEY,5/16" Sq x 1", Par

5/16 x 5/16 x 1 in. sq-parallel

2шт.

11

464253R1

SHAFT

rear drive

1шт.

12

360936R1

RING

internal rear drive bearing retaining

2шт.

13

ST211

BEARING, BALL,30 mm ID x 62 mm OD x 16 mm

BEARING, rear drive ball

2шт.

14

463359R1

HOUSING

rear drive

1шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

1/2 x 1-3/8 in. cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/4 in. x 16 ga

1шт.

15

16884R1

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.

16

464251R11

SPROCKET ASSY.

SPROCKET, driven, unit A

1шт.
