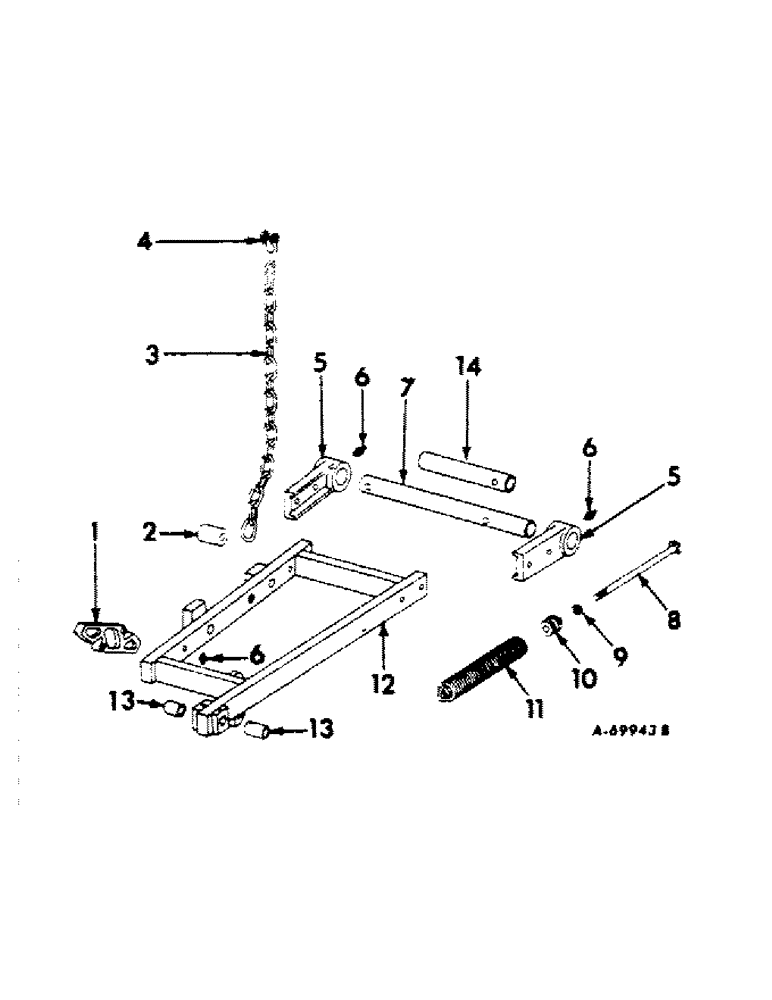

Запчасти Case IH 105 (B-03) - COUPLING BAR, BALANCING SPRING, LIFTING CHAIN AND TRUNNION

1

465509R3

STOP, balanced head

1шт.

2

465545R1

SPACER, lifting chain

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8 x 3-1/4 in. C-Z cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 in. x 13 ga C-Z

2шт.

3

465512R2

CHAIN, lifting, 14 links of straight coil no. 7 plug two special end links

1шт.

SCREW, 5/8 x 1-1/2 in. C-Z cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 in. x 13 ga C-Z

2шт.

4

M42549

CLEVIS

lifting

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

Q1396

AXLE PIN,1/2" x 1 5/8"

PIN, 1/2 x 1-5/8 in. dld-std-hd

1шт.

5

465508R1

MOUNT, coupling bar

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 in. C-Z

4шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8 x 2-1/2 in. C-Z cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

27270R1

O-RING,0.103" Thk x 5.987" ID, -163, Cl 7, 75 Duro

WASHER, 21/32 x 1-1/2 x 22 ga, or as required

2шт.

6

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. straight lubication

3шт.

7

465499R1

SHAFT, trunnion, order 470366R1 and two Q3487

1шт.

8

Q822

BOLT

balance spring adjusting, 1/2 x 6 in. special sq-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 in. C-Z jam

1шт.

9

588289R1

SPACER, spring adjusting bolt pipe

1шт.

10

600030R1

PLUG, spring

1шт.

11

600031R1

SPRING, balance

1шт.

12

465500R92

BAR W/BUSHING, coupling

1шт.

13

458900R1

SPACER

BUSHING, coupling bar pivot

1шт.

14

470366R1

TUBE, trunnion shaft spacer

1шт.

Q3487

WASHER

1-17/32 x 2-1/4 x 5/16 ga

2шт.
