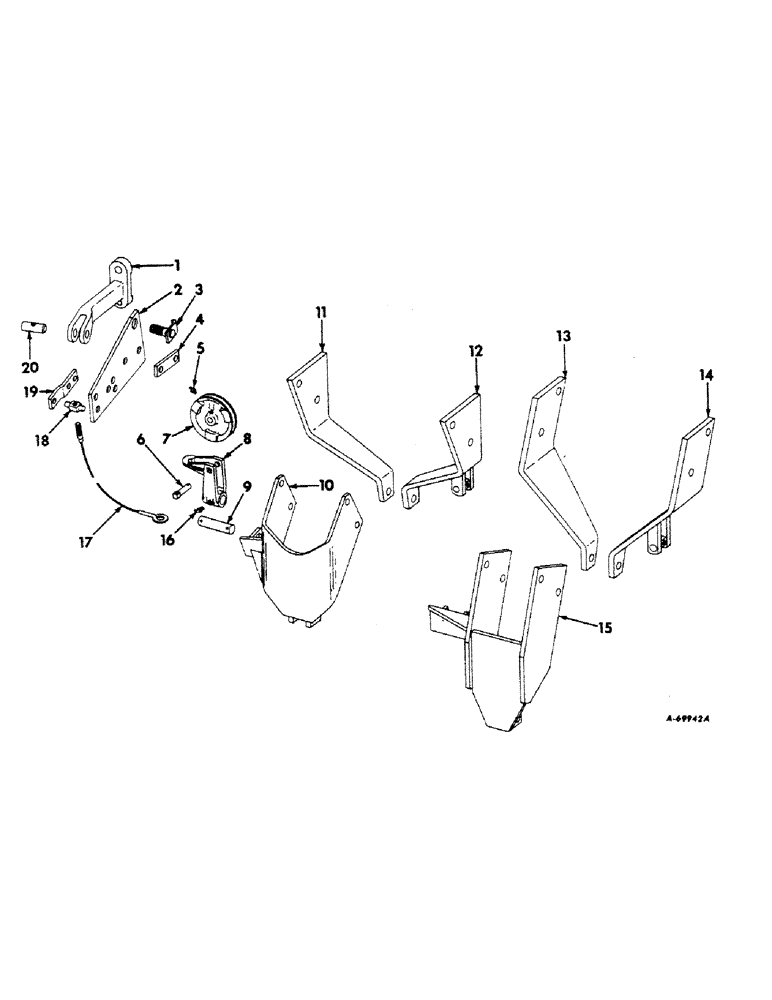

Запчасти Case IH 105 (B-02) - SIDE MOUNTING PLATES, LIFTING CABLE AND LIFT ARM

1

467842R1

ARM, lift cable, unit A

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

280954

NUT,3/4"-10, G5

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2 x 2-1/4 in. C-Z cap

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

2

465529R2

ARM, cable lift, unit B

1шт.

3

465530R11

STUD, clamping, unit B

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

4

465532R1

STRAP, cable arm, unit B

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2 x 2 in. C-Z cap

2шт.

220384

WASHER, 1/2 in. C-Z lock

2шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

6

451823R1

PIN, cable pulley guide

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

7

MA2654

PULLEY, lifting cable

1шт.

8

451822R1

SUPPORT, cable pulley

1шт.

9

453988R1

SHAFT, cable pulley support

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

10

465514R11

PLATE, trunnion, unit B

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 in. C-Z

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8 x 2 in. C-Z cap

4шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8 x 3-1/2 in. C-Z cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

11

465520R1

STRAP, left mounting, unit B

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 in. C-Z

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8 x 3-1/2 in. C-Z cap

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8 x 3-1/2 in. C-Z cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

12

465521R11

STRAP, right mounting, unit B

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8 x 3-1/2 in C-Z cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

465538R1

PLATE, left mounting, unit A

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 in C-Z

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8 x 1-3/4 in. C-Z cap

2шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8 x 3-1/2 in. C-Z cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

14

465539R11

PLATE, right mounting, unit A

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8 x 1-3/4 in. C-Z cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

465534R91

PLATE, trunnion, unit A

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 in. C-Z

1шт.

413-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5

SCREW, 5/8 x 1-5/8 in. C-Z cap

4шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8 x 3-1/2 in. C-Z cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

16

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 in., 90 degree elbow lubrication

1шт.

17

465544R91

CABLE

lifting, unit A

1шт.

17

465533R91

CABLE, lifting, unit B

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 in. C-Z jam

1шт.

18

465511R1

PIVOT, cable adjusting, unit B

1шт.

19

465510R1

STRAP, cable hammer, unit B

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

1/2 x 1-3/8 in. C-Z cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20

467843R1

PIVOT, lift cable, unit A

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 in. C-Z

1шт.
