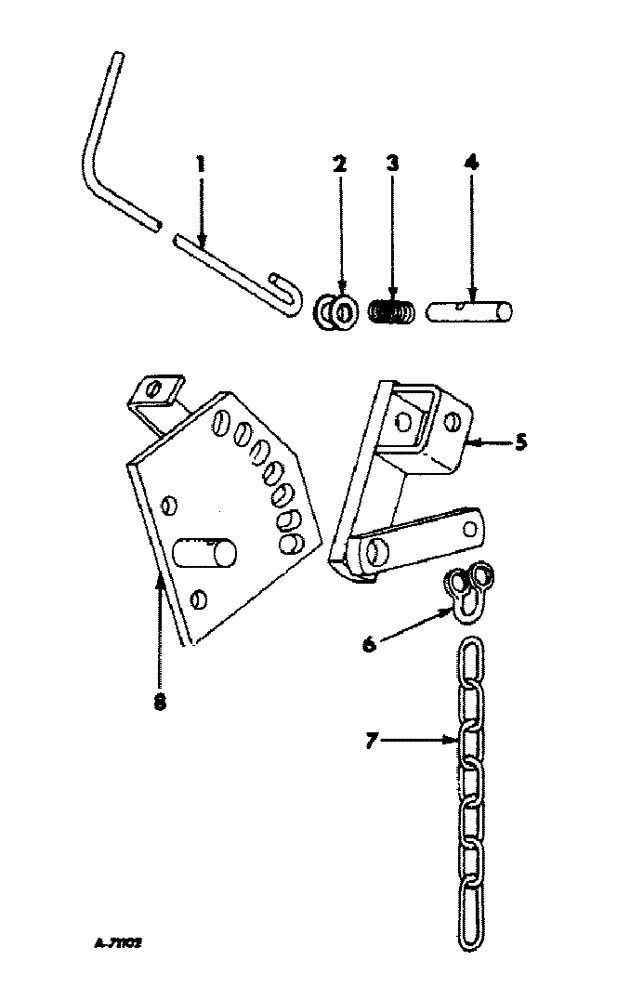

Запчасти Case IH 105 (B-11) - CURB LIFT ATTACHMENT, FARMALL CUB OR INTERNATIONAL CUB

1

465554R1

ROD, control

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

2

552416R1

WASHER, 21/32 x 1-1/4 in. x 22 ga, or as required

2шт.

3

51101R2

COIL SPRING

SPRING, lock pin

1шт.

4

465555R1

PIN, lock

1шт.

5

465549R91

PIN SUPPORT, w/lift arm

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

6

M42549

CLEVIS

lifting

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

D3373

DISC

PIN, 1/2 x 1-1/2 in. dld-std-hd

1шт.

7

465553R1

CHAIN, curb lift, 6 links of straight coil no. 5 plus one special end link

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8 x 1-1/2 in. C-Z cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

NLS

NO LONGER SERVICED

21/32 x 1-5/16 in. x 13 ga C-Z

2шт.

8

465546R11

SECTOR W/PIVOT

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

615226R1

WASHER

1-1/32 x 1-1/2 in. x 22 ga

2шт.
