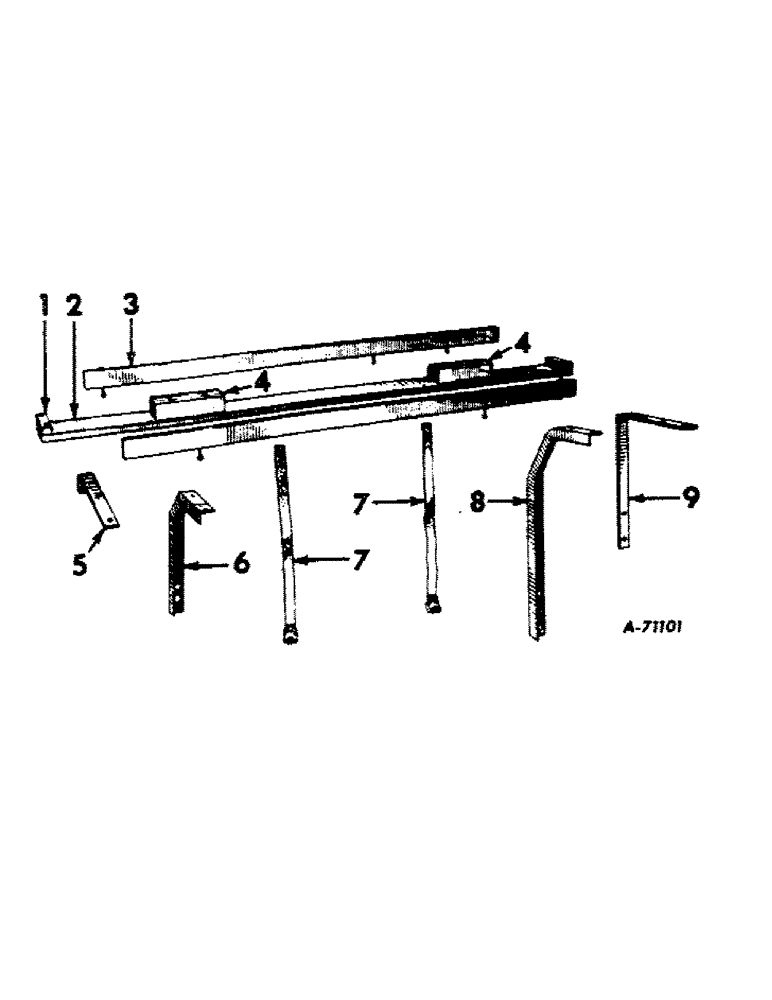

Запчасти Case IH 105 (B-10) - KNIFE RACK ATTACHMENT

1

M42464

END, knife rack

2шт.

106909

RIVET, 1/4 x 2 in. truss-hd

4шт.

16558R1

WASHER

17/64 x 5/8 in. x 18 ga

4шт.

2

MB42463

BOTTOM W/ENDS AND KNIFE SPACER, knife rack, riveted assembly

1шт.

2

MB42467

BOARD, knife rack bottom

1шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

W/NUT, 5/16 x 1-1/4 in. crg, unit A

2шт.

18477

BOLT, 5/16 x 3-1/2 in. sq-nk crg C-Z, unit B

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

MA42465

SIDE BOARD, knife rack

2шт.

15157R1

BOLT (SPREADER)

BOLT W/NUT, 5/16 x 3-1/4 in. C-Z crg

6шт.

Q243

WASHER

21/64 x 3/4 in. x 16 ga C-Z

4шт.

4

M42466

SPACER, knife

6шт.

134580

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, J Type

RIVET, 1/4 x 3 in., truss-hd

12шт.

16558R1

WASHER

17/64 x 5/8 in. x 18 ga

12шт.

5

465564R1

BRACE, front rack, unit B

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 in. C-Z mach

1шт.

6

451866R2

BRACE, front rack, unit A

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8 x 1-1/4 in. cap

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

H8050

STRAP, knife rack

2шт.

7

M42470

STRAP W/BUCKLE ASSEMBLY

2шт.

Q31561

RIVET, 9/64 x 3/8in. stl-tubular csk-hd pltd

4шт.

8

451867R1

BRACE, knife rack rear, unit A

1шт.

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

SCREW, 3/4 x 1-1/4 in. cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

9

465565R1

BRACE, knife rack rear, unit B

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 in. C-Z mach

1шт.
