Запчасти Case IH 105 (B-09) - CUTTER BARS

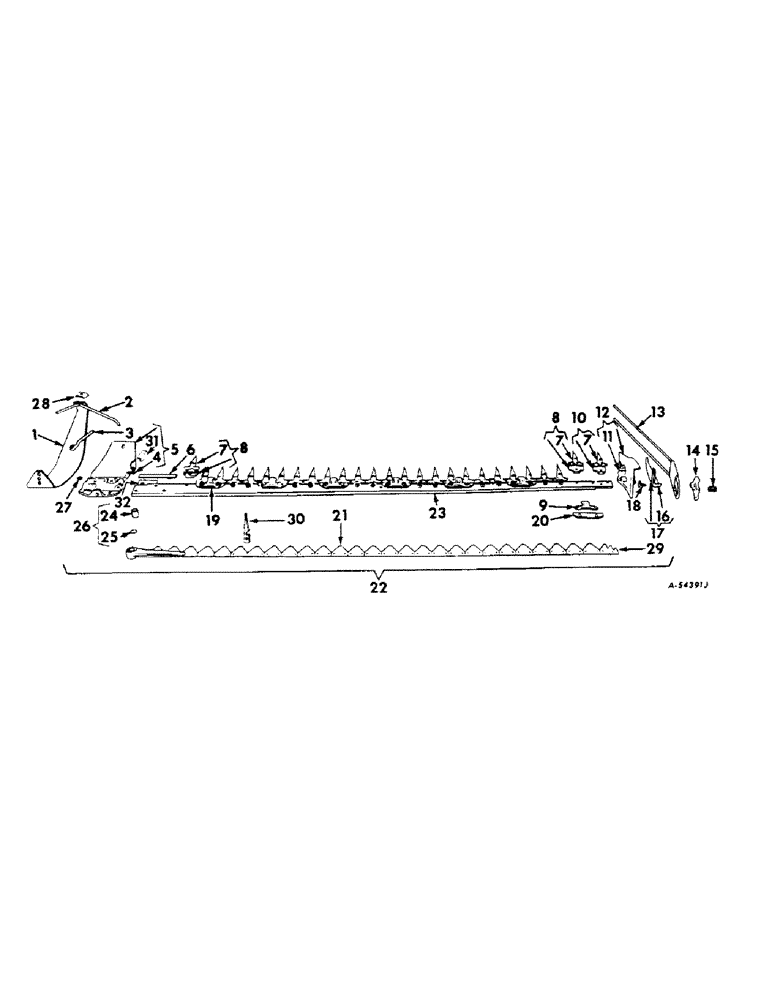

Схема запчастей Case IH 105 - (B-09) - CUTTER BARS

Артикул

Название

Примечание

Количество

1

462743R1

SOLE

stub type inner shoe

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT W/NUT, 1/2 x 1-1/2 in. crg

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT W/NUT, 1/2 x 1-1/4 in. mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

1шт.

2

463405R1

ROD

inner shoe upper grass

1шт.

3

461281R1

ROD

inner shoe lower grass

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT W/NUT, 1/2 x 1-3/4 in. crg

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

458965R1

PLATE

LEDGER PLATE, inner shoe

1шт.

990804R91

RIVET, 3/16 x 1-1/8 in., 54 degree csk, one pound package

2шт.

5

486934R91

SHOE

ASSY, inner, will work for 458962R1

1шт.

21371R1

SCREW

W/NYLON PELLET INSERT, 5/8-11 x 2 in. hex-hd cap

1шт.

21398R1

SCREW

W/NYLON PELLET INSERT, 5/8-11 x 2-1/4 in. hex-hd cap

2шт.

486707R1

WASHER

3шт.

6

458942R1

BAR

SPACER, cutter bar

1шт.

7

455634R1

PLATE

LEDGER PLATE, plain serrated

18шт.

14022R1

RIVET

3/16 x 1-3/8 in. 74 degree csk-hd, use w/heavy guard, 1961, 1962

18шт.

407039R91

RIVET,Countersunk, 4.76mm OD x 25.4mm L

3/16 x 1 in., 74 degree csk-hd semi-tubular, 1963, one pound package

18шт.

8

MC2041Z

GUARD

GUARD W/PLAIN SERRATED LEDGER PLATE 455634R1, heavy

18шт.

8

484000R11

GUARD

W/PLAIN SERRATED LEDGER PLATE 455634R1, knife, for cutter bar w/3 in. guard spacing

1шт.

9

MA812

SUPPORT

HOLDER, low arch knife

4шт.

10

MC2043Z

GUARD

W/PLAIN SERRATED LEDGER PLATE 455634R1, heavy outer

1шт.

11

MA330

LARGE PLATE

LEDGER PLATE, outer shoe serrated

1шт.

990720R91

RIVET, 3/16 x 11/16 in. 54 degree csk-hd, one pound package

1шт.

990717R91

RIVET, 3/16 x 1 in., 54 degree csk-hd, one pound package

1шт.

12

MF729X

SHOE

W/LEDGER PLATE, outer

1шт.

M805X

BOLT AND NUT

BOLT W/NUT, outer shoe

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

13

463326R12

ROD ASSY.

ROD ASSEMBLY, outer shoe grass

1шт.

14

458979R1

CLAMP

outer shoe grass rod

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

W/NUT, 3/8 x 1-1/2 in. mach

1шт.

103417

COTTER PIN

PIN, 1/4 x 3/4 in. cotter

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

M1015

SPRING

grass rod tension

1шт.

13416R1

BOLT

1/2 x 3 in. sq-hd mach

1шт.

455388R1

NUT

1/2 in. hex-hd lock

1шт.

12026R1

WASHER

17/32 x 1-1/4 in. x 16 ga

1шт.

16

MB257

BRACKET, outer shoe sole, order M259X

1шт.

17

M259X

SOLE

W/BRACKET, outer shoe

1шт.

RIVET, 1/4 x 3/4 in in. B-hd

2шт.

18

D266X

BOLT AND NUT

W/NUT, outer shoe sole

1шт.

19

MB812

CLAMP

HOLDER, high arch knife

1шт.

20

MC468

PLATE ASSY.

WEARING PLATE

5шт.

21

826724C1

KNIFE SECTION

SECTION, smooth, heavy, replaces M3331/2

19шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, two pound package

31шт.

21

826722C1

KNIFE SECTION

SECTION underserrated, heavy, replaces M22831

19шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, two pound package

19шт.

22

463406R92

KNIFE

W/SMOOTH PLAIN, heavy sections

1шт.

22

463408R92

KNIFE

W/UNDERSERRATED, heavy, sections

1шт.

23

463410R1

BAR

cutter

1шт.

M805X

BOLT AND NUT

BOLT W/NUT, short guard

9шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT, long guard

10шт.

NLS

NO LONGER SERVICED

7/16 pln type 5, 1 per bolt

1шт.

24

458971R1

BRONZE BUSHING,25.43mm ID x 28.63mm OD x 35.18mm L

BUSHING, knife-hd

1шт.

25

458972R1

PLUG

knife-hd

1шт.

26

56692C91

PITMAN

HEAD ASSY, knife, replaces 462378R11

1шт.

14768R1

RIVET, 5-1/2 x 1 pln o/hd Oval Hd, .211" x 1"

9шт.

27

458941R1

SHIM

inner shoe, .005

1шт.

28

461383R1

CLAMP

CLIP, grass rod

1шт.

29

467455R11

VALVE

SECTION W/RIVETS, smooth, heavy triplet end, cr-pltd

1шт.

29

467456R11

KNIFE SECTION

SECTION W/RIVETS, underserrated, heavy, triplet end, cr-pltd

1шт.

MB133

RIVET

no. 5-1/2 x 5/8 in. oval-hd cd-pltd, one pound package

2шт.

30

469975R3

GAUGE

guard lip

1шт.

31

486708R1

SHIELD

inner shoe

1шт.

15016R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/8" , Gr 2

BOLT, 7/16 x 1-1/4 in. sq-nk crg

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16 in. hex. lock

14шт.

Q5028

WASHER

15/32 x 1 in. x 11 ga

1шт.

32

488411R1

SHIM

spacer, or as required

1шт.

Выбрано товаров: 69
