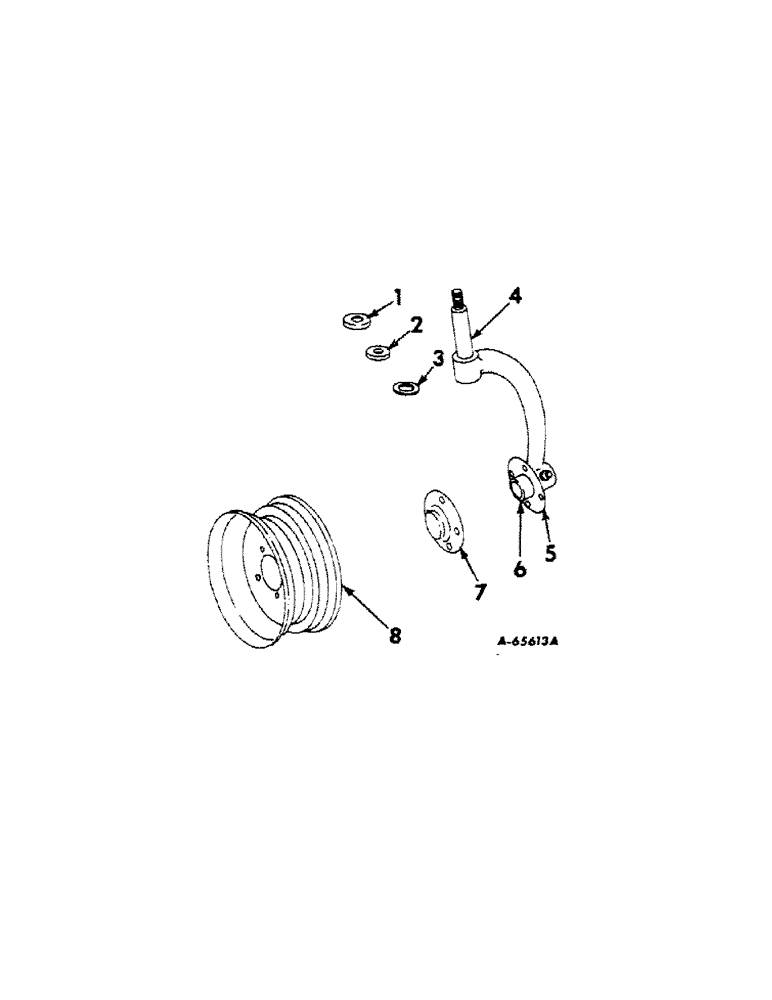

Запчасти Case IH 1000 (K-09[A]) - CASTER WHEEL

1

465231R1

CUP WASHER

cupped axle

1шт.

2

465232R1

RUBBER WASHER

rubber alxe

1шт.

3

20825R1

WASHER

25/32 x 2 in. x 11 ga

1шт.

4

465228R91

AXLE

ASSEMBLY, caster wheel

1шт.

27767R1

SCREW, 3/8 x 7/8 pln co/pt hdl/hs set

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

69442D

NUT

3/4-16 slt hex. jam

1шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), 1/8" x 2"

1шт.

20885R1

WASHER

1-5/32 x 2 x 16 ga C-Z

1шт.

5

465235R1

RETAINER

HOUSING, open bearing

1шт.

6

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING W/SHAFT ASSY, ball

1шт.

7

465236R1

COVER

HOUSING, closed bearing

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

10шт.

8

490488R1

WHEEL

LESS TIRE, caster

1шт.

TIRE, smooth tread implement, 4.80/4.00 x 8, 4 ply

1шт.

TUBE, pneumatic inner 4.80/4.00 x 8 w/TR13CW valve

1шт.
