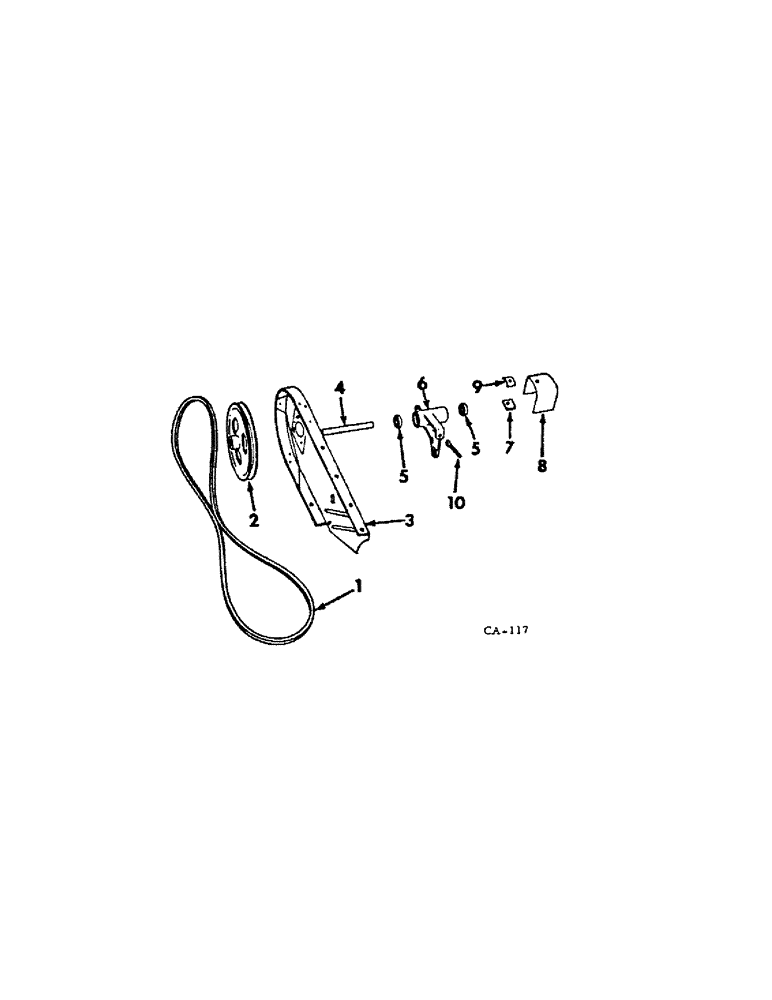

Запчасти Case IH 1000 (K-07) - DRIVE SHAFT HOUSING, PULLEY, V-BELT AND SHIELDS

1

558141R1

V-BELT,0.88" W x 105.20" L

Knife drive 0.88" W x 105.20" L

1шт.

2

456568R5

PULLEY

drive

1шт.

457216R1

HEADED PIN,5/16" x 2 1/4"

PIN, 5/16 x 2-1/4 std-hd

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

3

SHIELD, drive, refer to cutter bar, hinge coupling, idler pulley and shield unit

1шт.

4

456571R3

SHAFT

drive

1шт.

Q1444

KEY,1/4" Sq x 7/8", Par

1/4 x 1/4 x 7/8 sq-parallel

2шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

5шт.

22440R1

WASHER

1-1/32 x 1-3/4 x 22 ga C-Z

1шт.

455257R1

LOCK PIN,3/16" x 2 1/4", Slotted

Pin, 3/16" x 2 1/4", Slotted

1шт.

441015R1

LOCK PIN,5/16" x 2 1/4", Slotted

1шт.

5

ST208B

BALL BEARING,25mm ID x 52mm OD x 15mm W

BEARING, drive shaft ball

2шт.

6

458908R3

HOUSING

drive shaft

1шт.

13019R1

FITTING

1/8 in. straight vented lub.

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

7

489494R1

STRIP

BAR, PTO shield dampener

1шт.

8

489493R1

SHIELD

PTO

1шт.

9

489495R1

SUPPORT

shield

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

10

10400F

BOLT

EYEBOLT, belt adjusting

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

20100R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

SCREW, 1/2-13 x 2-3/4 znd hex-hd cap type 8

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga znd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

478785R92

HOUSING

ASSY, balance head, consists of all parts listed below

1шт.
