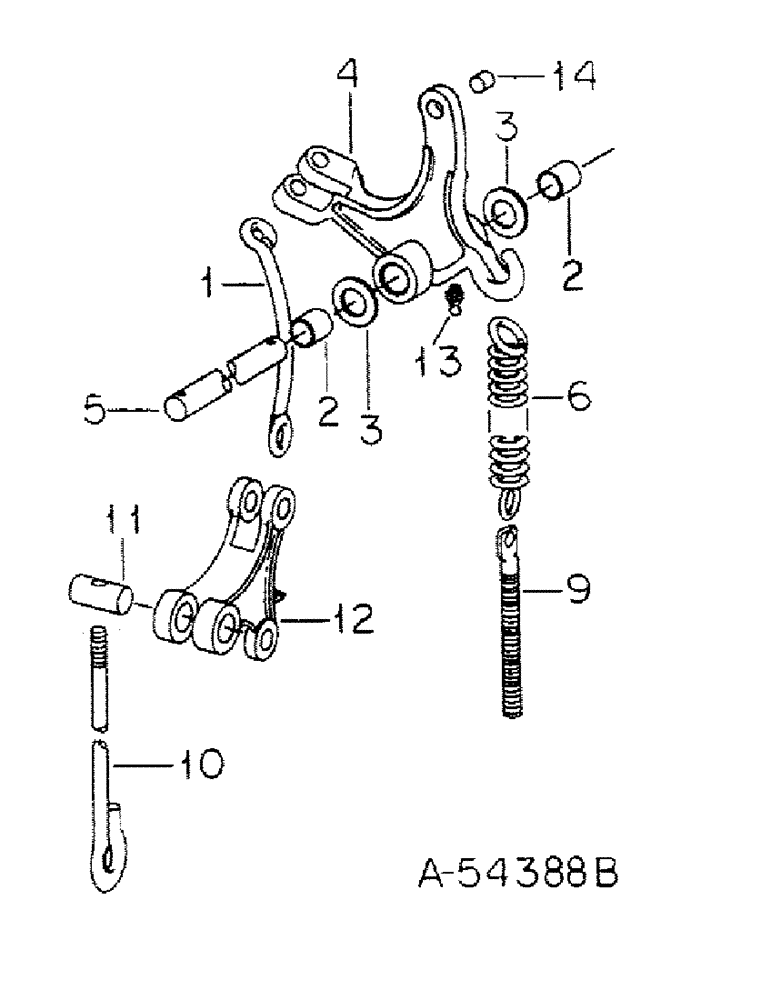

Запчасти Case IH 1000 (K-06) - BELLCRANK, GAG AND LIFT LEVER AND BALANCING SPRING

1

458912R2

ROD

bellcrank lift

1шт.

2

454154R1

BUSHING

bellcrank

2шт.

3

20885R1

WASHER

1-5/32 x 2 16 ga C-Z, or as required

2шт.

4

465245R11

LEVER

BELLCRANK W/BUSHINGS, 454154R1

1шт.

22093R1

PIN, 3/4 x 2-11/16 C-Z st-hd

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

5

465475R1

SHAFT

bellcrank

1шт.

22914R1

PIN,3/8" x 1 3/4"

Split (Cotter), 3/8" x 1 3/4"

1шт.

21651R1

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

1шт.

22004R1

LOCK PIN,3/16" x 2", Slotted

Pin, 3/16" x 2", Slotted

1шт.

21214R1

WASHER

1-5/32 x 2 x 11 ga C-Z

1шт.

6

59323C1

SPRING

cutter bar balancing, 1/2 coils, replaces spring MA22110 and plug M1425 by also ordering bolt, 59324C1 and attaching hardware

1шт.

7

Not used this application

1шт.

8

Not used this application

1шт.

9

59324C1

BOLT,Eye, 1/2" - 13 x 4.8"

eye, adjusting balancing spring, replaces bolt, Q822 by also ordering spring, 59323C1

1шт.

1253645C1

SQUARE NUT

1/2-13 C-Z sq

2шт.

22191R1

WASHER

17/32 x 1-3/4 x 7 ga C-Z

1шт.

22265R1

WASHER

17/32 x 1-1/4 x 22 ga C-Z

1шт.

10

458915R1

BOLT

ROD, gag

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

11

458914R1

PIN

PIVOT, gag rod

1шт.

12

458913R1

LEVER

gag and lift

1шт.

21947R1

HEADED PIN,3/4" x 2 5/8"

PIN, 3/4 x 2-5/8 C-Z std-hd

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

14

Not used in this application

1шт.
