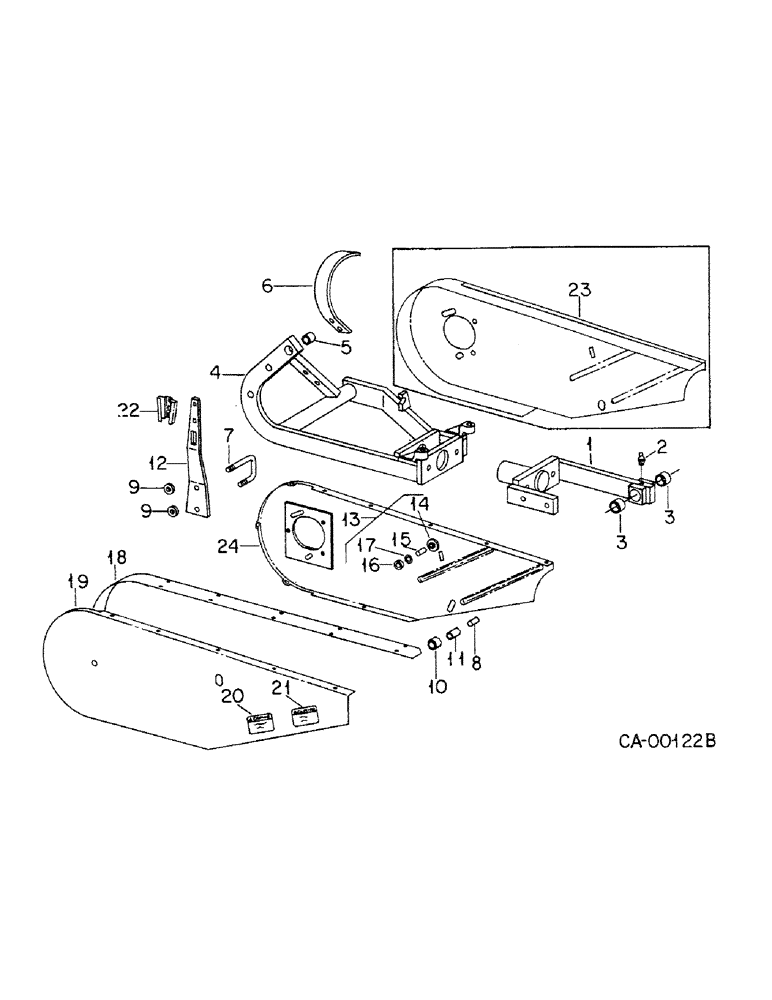

Запчасти Case IH 1000 (K-05) - CUTTER BAR SUPPORT, HINGE COUPLING, IDLER PULLEY AND SHIELDS

1

487053R11

PIVOT W/TWO BUSHING, tilt

1шт.

179891

SHAFT

SCREW, 1/2-13 x 2-1/2 hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

3

487050R1

BUSHING,31.83mm ID x 34.85mm OD x 28.45mm L

hinge pin

2шт.

4

487056R11

SUPPORT

W/BUSHING, hinge

1шт.

22889R1

BOLT, 3/4 x 2-1/2 znd dld sq-nk crg

2шт.

137190

PIN,1/8" x 1 1/8"

1/8" x 1-1/8"

2шт.

427637

SLOTTED NUT,3/4"-10, G5

NUT, 3/4-10 C-Z slt hex.

2шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

5

458901R1

BUSHING

gag & lift lever pivot

1шт.

555026R1

BOLT,Hex, 5/8" - 11 x 3", Full Thd

SCREW, 5/8-11 x 3 hex-hd cap

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 C-Z hex. jam

2шт.

6

487058R1

SUPPORT

cutter bar

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

2шт.

1120384

WASHER, 1/2 C-Z med lock

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

7

489496R1

BOLT,1/2" - 13 x 4.9"

U-BOLT, idler support

1шт.

22042R1

WASHER

17/32 x 2 x 11 ga C-Z

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

632076R1

WASHER

17/32 x 1-3/4 x 11 ga

1шт.

22273R1

WASHER

17/32 x 2 x 22 ga C-Z

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

1шт.

8

586329R1

SPACER,3/4" Tube x 13/16"

drive shield

1шт.

9

489486R1

STRIP

DAMPENER, drive shield

2шт.

10

489497R1

ROLLER

ASSY, drive belt

1шт.

11

489500R1

BUSHING

BEARING, roller bushing

1шт.

12

489501R2

SUPPORT

idler bracket

1шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2 x 3-1/2 C-Z hex-hd mach

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

22273R1

WASHER

17/32 x 2 x 22 ga C-Z

1шт.

22042R1

WASHER

17/32 x 2 x 11 ga C-Z

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock

1шт.

13

464893R91

ASSEMBLY

IDLER ASSY, drive belt, includes 14 thru 16

1шт.

14

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self-tap lub

1шт.

15

464898R1

BUSHING

BEARING

1шт.

16

464899R1

CUP WASHER

cupped

2шт.

17

464900R1

THRUST WASHER

thrust

2шт.

18

60776C92

SHEET

W/PRODUCT GRAPHIC, ZAO14839, rim

1шт.

28559R1

BOLT,Short NK, 1/4"-20 x 1/2", G2

1/4 x 1/2 crg type 1

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

19

57187C1

SHIELD

COVER W/PRODUCT GRAPHICS, drive shield, used w/o hay conditioner

1шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 x 3/8 znd hex-hd cap

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

20

61907C1

DECAL

PRODUCT GRAPHIC, caution, general warning

1шт.

21

202707C2

PRODUCT GRAPHIC

caution, keep shields in place

1шт.

22

398976R1

BRACKET

emblem socket

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

23

489637R91

SHIELD W/PRODUCT GRAPHIC, drive, one piece

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

2шт.

619856R1

WASHER

.406 x 1.000 x .056

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

24

489487R1

SHIELD

ASSY, drive, two piece

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

2шт.

619856R1

WASHER

.406 x 1.000 x .056

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.
