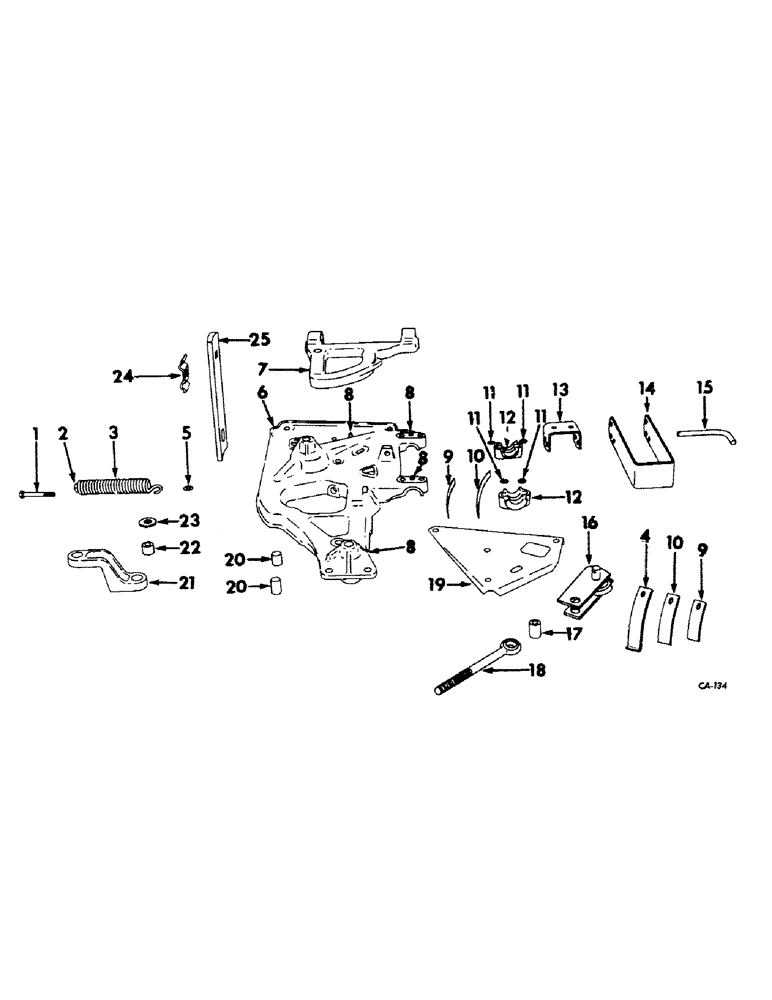

Запчасти Case IH 1000 (K-03) - PIVOT FRAME, BREAKAWAY ARM, LATCH SUPPORT AND SUPPORT STAND

1

570640R1

BOLT (SPREADER),Adj, Hex, 1/2" - 13 x 4", Full Thd

BOLT, 1/2 x 4 in. special mach, spring adjusting

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

22265R1

WASHER

17/32 x 1-1/4 x 22 ga C-Z

1шт.

1253645C1

SQUARE NUT

1/2-13 C-Z sq

1шт.

2

M1425

PLUG

spring

1шт.

3

PO199A

SPRING

breakaway latch, 25 coils

1шт.

4

490529R1

SPRING

front leaf

1шт.

5

21714R1

WASHER

29/32 x 1-1/2 x 11 ga C-Z, used on 462764R92

2шт.

6

465210R41

FRAME ASSY, pivot

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, , Frame/plate 5/8"-11, GB

3шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8 x 3-1/4 C-Z hex-hd mach

4шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., frame/breakaway latch/plate

1шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8 x 3-1/4 C-Z hex-hd mach, frame/breakaway arm/plate

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z, between lk/washer and plate

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

7

465211R1

ARM, breakaway

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 C-Z hex-hd cap

3шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

280954

NUT,3/4"-10, G5

mower to tractor drawbar 3/4"-10, G5

3шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

9

524452R1

VALVE SPRING

SPRING, hinge coupling stop, rear helper

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

10

524453R1

VALVE SPRING

SPRING, hinge coupling stop, middle helper

2шт.

181433

BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 5

SCREW, 1/2-20 x 1-3/4 hex-hd cap

1шт.

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

17/32 x 1-1/2 x 11 ga C-Z

1шт.

178374R1

WASHER

17/32 x 1-3/4 x 16 ga C-Z

1шт.

18452R1

LOCK NUT,1/2"-20, GB

NUT, 1/2-20 nylon insert

1шт.

11

458890R1

SHIM

pivot frame, or as required

32шт.

12

458889R1

CAP

pivot frame

2шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

5/8-11 x 4-1/4 hex-hd cap

2шт.

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

SCREW, 5/8-11 x 4-1/2 hex-hd cap, Course Threads

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

102639

NUT,5/8"-11, G5

4шт.

13

465225R1

BRACKET, jack

1шт.

14

465226R1

STAND, support

1шт.

22636R1

BOLT, 5/8 x 5-1/2 cnd dld hex-hd mach

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

125158

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11 C-Z slt hex.

1шт.

15

465227R1

ROD

PIN, lock

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

16

462764R93

PULLEY

ROLLER ASSY, breakaway latch

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga C-Z

2шт.

17

459396R2

BUSHING

latch strap pivot

1шт.

20704R1

WASHER

1-1/32 x 1-1/2 x 11 ga C-Z

2шт.

18

458907R1

BOLT

EYEBOLT, lead adjustment

1шт.

280954

NUT,3/4"-10, G5

2шт.

19

458906R2

PLATE

latch support

1шт.

20

454154R1

BUSHING

caster wheel pivot

2шт.

21

465252R1

ARM

lifting

1шт.

18172R1

BOLT

3/4 x 3 C-Z hex-hd mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

22

465253R1

BUSHING

lift arm

1шт.

23

21211R1

WASHER

25/32 x 1-1/2 x 7 ga C-Z

1шт.

24

481133R1

SUPPORT

CLAMP, hose

1шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 3/8 x 2 C-Z sq-nk crg

1шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 C-Z cdp hex. lock

1шт.

25

469932R1

SUPPORT, hyd hose

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

1шт.

120396

WASHER

17/32 x 1-1/16 x 13 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

1253645C1

SQUARE NUT

1/2-13 C-Z sq

1шт.
