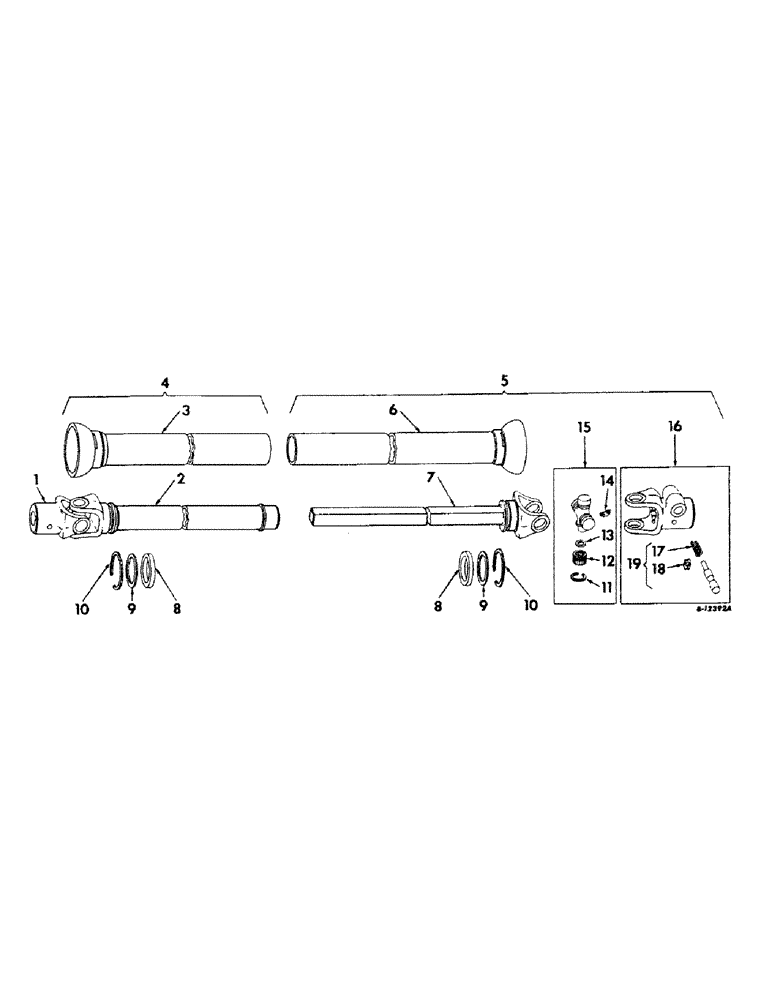

Запчасти Case IH 1000 (K-15) - POWER DRIVE EQUIPMENT, W/O HAY CONDITIONER

1

462477R1

YOKE

W/KEYWAY

1шт.

2

SHAFT W/YOKE, tubular, order joint 489529R91 (NSS)

1шт.

3

489531R1

SHIELD

ASSY

1шт.

4

489529R91

JOINT

single universal shielded, implement end

1шт.

5

464118R91

JOINT

single universal shielded, tractor end

1шт.

6

464122R1

SHIELD

outer

1шт.

7

464120R1

YOKE

SHAFT W/YOKE ASSY

1шт.

8

463014R1

RING

BEARING, shield nylon, for tractor end

1шт.

8

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

shield nylon, for implement end

1шт.

9

463015R1

THRUST WASHER

shield thrust, for tractor end

1шт.

9

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

shield thrust, for implement

1шт.

10

463016R1

RING

shield retaining, for tractor end

1шт.

10

613436R1

CLAMP

RING, shield retaining, for implement end

1шт.

11

357426R1

RING

SNAP RING

8шт.

12

661678R91

BEARING

needle

8шт.

13

357425R1

CORK SEAL

OIL SEAL, cork

8шт.

14

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27PTF 65 degree elbow lub

2шт.

15

150635R92

SPIDER

CENTER CROSS KIT

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, , pln Slotted, Headless, 1/8" NPT

2шт.

16

462492R91

YOKE

quick detachable, 1-3/8 in. spline

1шт.

17

455347R1

VALVE SPRING

SPRING, locking pin

1шт.

18

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASYER, locking pin

1шт.

19

455346R21

PIN

W/SPRING AND X-WASHER, locking

1шт.
