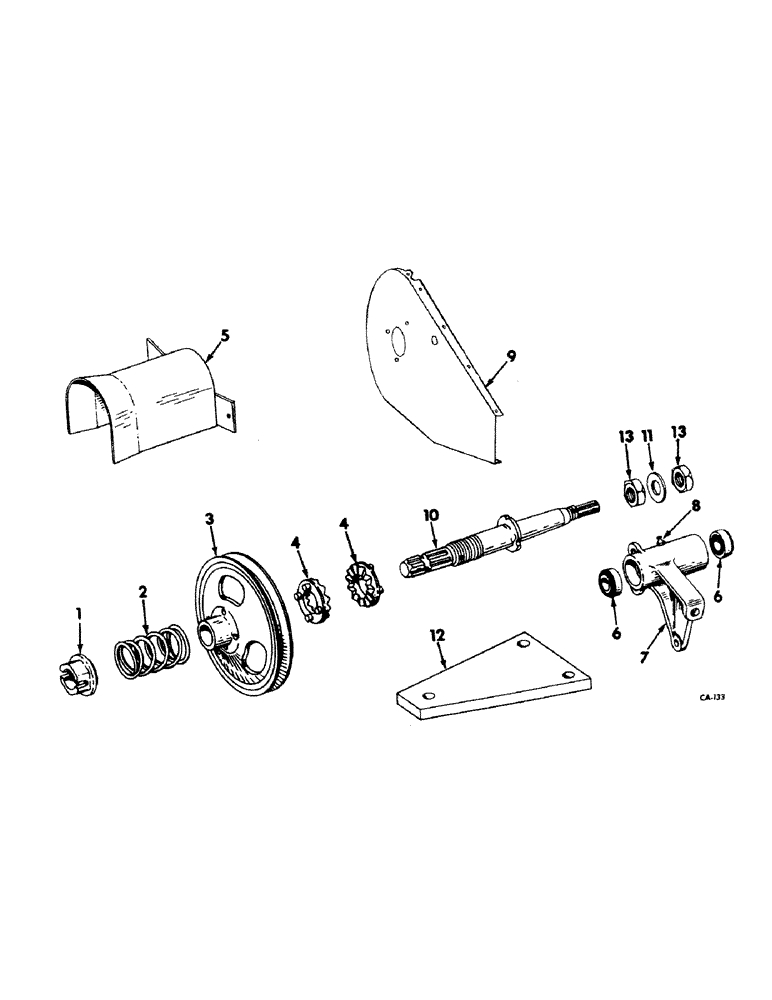

Запчасти Case IH 1000 (K-13) - HITCH PARTS, FOR USE WITH HAY CONDITIONER

1

M2574

NUT

slip clutch

1шт.

2

M32816

SPRING

slip clutch

1шт.

3

M2571

PULLEY

slip clutch drive

1шт.

4

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

2шт.

5

489835R1

SHIELD

conditioner drive

1шт.

137952

SUPPORT

SCREW, 1/4-20 x 3/8 C-Z slt truss-hd mach

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

6

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, drive shaft roller

2шт.

7

462836R3

HUB

HOUSING, drive shaft

1шт.

8

13019R1

FITTING

1/8-27 ptf vented str lub

1шт.

9

489491R1

SHIELD

COVER ASSY, drive shield

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4-20 x 1/2 znd hex-hd mach

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

10

471945R11

SHAFT

ASSY, conditioner drive

1шт.

21951R1

PIN,5/16" x 2 1/4"

5/16 x 2-1/4 C-Z std-hd

1шт.

455183R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

PO27165

WASHER, 1-9/32 x 1-23/32 x 1/8

1шт.

11

471946R1

WASHER

1.03 x 1.280 x 2.50 x 16 ga

1шт.

12

465259R1

PLATE, hay conditioner mounting

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

22244R1

LOCK NUT

3/4-10 znp nylon insert

2шт.

13

133613H

NUT

1-1/4-12 worm

2шт.
