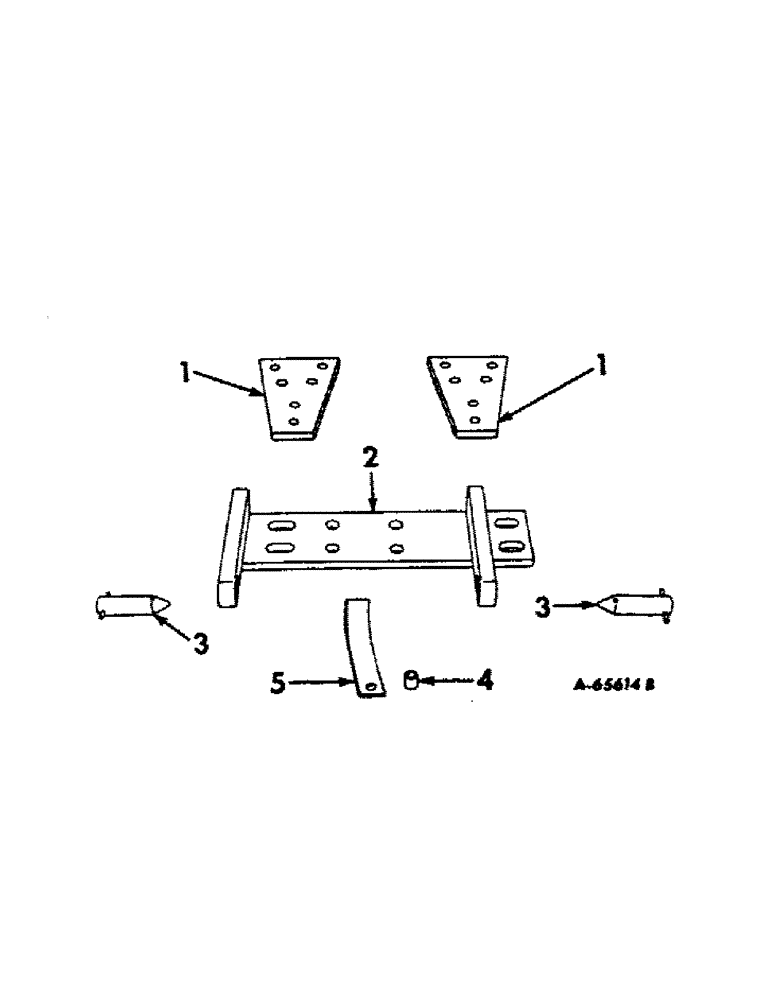

Запчасти Case IH 1000 (K-12) - HITCH PARTS

1

465275R2

PLATE, drawbar mounting, for fixed drawbar mounting only

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4 x 2-3/4 type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

5шт.

280954

NUT,3/4"-10, G5

5шт.

2

465256R11

PLATE ASSY, mounting

1шт.

3

465258R1

PIN

attaching

2шт.

21832R1

LOCK PIN,1/4" x 2", Slotted

Pin, 1/4" x 2", Slotted

2шт.

22925R1

PIN, 5/32 x 2 znp slt spring

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

4

453542R2

SPACER

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

2шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

5

467218R1

SPRING, leaf

1шт.
