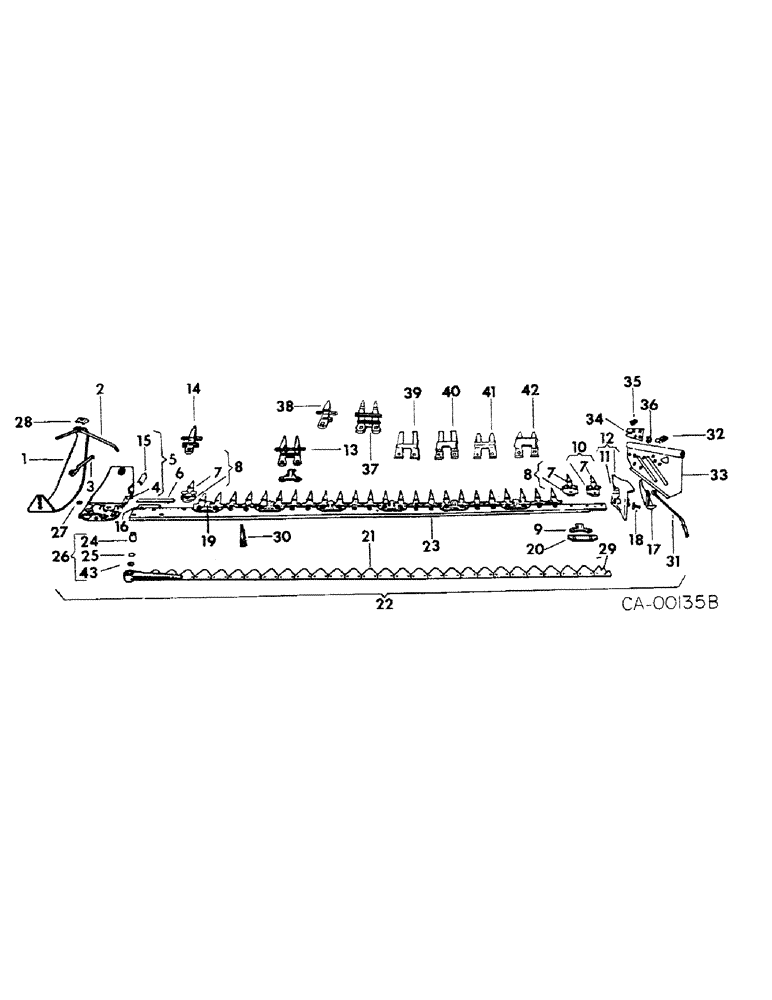

Запчасти Case IH 1000 (K-10) - CUTTER BAR

1

458966R1

SOLE

inner shoe, divider type

1шт.

1

462743R1

SOLE

inner shoe, stub type

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z sq-nk crg

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

2

458967R1

ROD

inner shoe upper grass

1шт.

2

462744R1

ROD

inner shoe upper grass, stub type

1шт.

3

461281R1

ROD

inner shoe lower grass

1шт.

4

458965R1

PLATE

LEDGER PLATE, inner shoe

1шт.

990804R91

RIVET, 3/16S x 1-1/8 54 deg csk-hd, one pound package

2шт.

5

486934R91

SHOE

ASSY, inner

1шт.

143868C1

BOLT,Hex, 5/8" - 11 x 2", Gr 5, Nylon Pellet

W/NYLON PELLET INSERT, 5/8-11 x 2 hex-hd

1шт.

27434R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 phc p/t type 8

2шт.

486707R1

WASHER

.656 x 1.25 x .104 hardened

3шт.

6

458942R1

BAR

SPACER, cutter bar, 1/8 in.

1шт.

7

455634R1

PLATE

LEDGER PLATE, plain serrated, 25 for ft. 33 for 9 ft.

1шт.

407039R91

RIVET,Countersunk, 4.76mm OD x 25.4mm L

3/16 x 1 74 deg csk-hd tubular, one pound package

1шт.

486544R1

RIVET

special 1-1/4 in. long 54 degrees csk-hd

1шт.

7

457608R1

CUTTER BAR

LEDGER PLATE, cr-pltd serrated, 25 for 7 ft. only

1шт.

407039R91

RIVET,Countersunk, 4.76mm OD x 25.4mm L

3/16 x 1 74 deg csk-hd tubular, one pound package

1шт.

8

MC2041Z

GUARD

GUARD W/PLAIN SERRATED LEDGER PLATE, 455634R1, heavy, 24 for 7 ft., 32 for 9 ft.

1шт.

8

457743R92

GUARD

W/CR-PLTD SERRATED LEDGER PLATE, 457608R1, heavy, 24 for 7 ft. only

1шт.

9

544274R1

CLIP

HOLDER, low arch knife, 6 for 7 ft., 8 for 9 ft., 12 for 7 ft. with single guard

1шт.

10

MC2043Z

GUARD

W/PLAIN SERRATED LEDGER PLATE, 455634R1, heavy outer

1шт.

10

457745R92

GUARD

W/CR-PLTD SERRATED LEDGER PLATE, 457608R1, heavy outer

1шт.

11

MA330

LARGE PLATE

LEDGER PLATE, outer shoe serrated

1шт.

990720R91

RIVET, 3/16 x 11/16 - 54 degree csk-hd, one pound package

1шт.

990817R91

RIVET

3/16 x 1 in. - 54 degree csk-hd, one pound package

1шт.

12

MF729AX

SHOE

W/LEDGER PLATE, outer

1шт.

M805X

BOLT AND NUT

BOLT W/NUT, outer shoe

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

7/16 pln type 5

2шт.

13

483500R3

GUARD

forged steel double knife, 12 for 7 ft., 17 for 9 ft.

1шт.

REF: #13 - 483500R3 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1

1шт.

14

472717R2

GUARD

single steel stub, 27 for 7 ft., 3 for 7 ft. w/double guard end and 3 for 9 ft.

1шт.

15

486708R1

SHIELD

inner shoe

1шт.

15016R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/8" , Gr 2

BOLT, 7/16 x 1-1/4 sq-nk crg

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

1шт.

Q5028

WASHER

15/32 x 1 x 11 ga

1шт.

16

488411R1

SHIM

spacer, or as required

4шт.

17

M259X

SOLE

W/BRACKET, outer shoe

1шт.

18

D266X

BOLT AND NUT

W/NUT, outer shoe sole

1шт.

102637

NUT,1/2"-13, G5

1шт.

19

611759R1

KNIFE CLIP

HOLDER, high arch knife

1шт.

20

MC468

PLATE ASSY.

PLATE, wearing, 7 for 7 ft. 9 for 9 ft., 13 for 7 ft. with single guard

1шт.

21

826723C1

KNIFE SECTION

SECTION, plain underserrated, 27 for 7 ft., 35 for 9 ft., replaces ME333

1шт.

990817R91

RIVET

no. 5-1/2 x 9/16 in. small oval-hd, 47 for 7 ft., 63 for 9 ft., one pound package

1шт.

21

457606R2

KNIFE SECTION

SECTION, cr-pltd underserrated, 27 for 7 ft. only

1шт.

991014R91

KIT

RIVET, no. 5-1/2 x 9/16 cd-pltd small oval-hd, one pound package

47шт.

21

826725C1

KNIFE SECTION

SECTION, smooth, 28 for 7 ft., 26 for 9 ft., replaces MB333

1шт.

990817R91

RIVET

no. 5-1/2 x 9/16 in. small oval-hd, 49 for 7 ft., 65 for 9 ft., one pound package

1шт.

21

826724C1

KNIFE SECTION

SECTION, smooth, heavy, 27 for 7 ft., 35 for 9 ft.

1шт.

991059R91

RIVET

no. 6 x 5/8 in., small oval-hd, 47 for 7 ft., 63 for 9 ft., two pound package

1шт.

21

826722C1

KNIFE SECTION

SECTION, underserrated, heavy, 27 for 7 ft., 35 for 9 ft.

1шт.

991059R91

RIVET

no. 6 x 5/8 in. small oval-hd, 47 for 7 ft., 63 for 9 ft., two pound package

1шт.

21

457604R2

ASSEMBLY

SECTION, smooth cr-pltd, regular, 27 for 7 ft., 35 for 9 ft.

1шт.

21

457605R2

KNIFE SECTION

SECTION, smooth heavy, cr-pltd, 27 for 7 ft., 35 for 9 ft.

1шт.

21

457607R2

KNIFE SECTION

SECTION, underserrated heavy, cr-pltd, 27 for 7 ft., 35 for 9 ft.

1шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, 47 for 7 ft., 63 for 9 ft., two pound package

1шт.

22

472088R91

KNIFE ASSY

KNIFE W/SMOOTH SECTIONS, cr-pltd, 7 ft.

1шт.

22

472089R91

KNIFE

W/SMOOTH SECTIONS, cr-pltd, 9 ft.

1шт.

22

472090R91

KNIFE

W/SMOOTH, heavy, sections cr-pltd, 9 ft.

1шт.

22

472091R91

KNIFE

W/UNDERSERRATED, heavy, sections cr-pltd, 9 ft.

1шт.

22

467749R91

KNIFE

W/UNDERSERRATED SECTIONS, heavy, cr-pltd, 7 ft.

1шт.

22

463180R92

KNIFE

W/PLAIN UNDERSERRATED SECTIONS, 9 ft.

1шт.

22

458968R92

KNIFE ASSY

KNIFE W/PLAIN UNDERSERRATED SECTIONS, 7 ft.

1шт.

22

460937R92

KNIFE

W/CR-PLTD UNDERSERRATED SECTIONS, 7 ft.

1шт.

22

462380R92

KNIFE ASSY

KNIFE W/UNDERSERRATED, heavy, sections, 7 ft.

1шт.

22

463159R92

KNIFE

W/UNDERSERRATED, heavy, sections, 9 ft.

1шт.

22

462381R92

KNIFE

W/SMOOTH PLAIN, heavy, sections, 7 ft.

1шт.

22

463182R92

KNIFE

W/SMOOTH PLAIN, heavy, sections, 9 ft.

1шт.

23

458974R1

BAR

cutter, 7 ft.

1шт.

23

1265863C1

BAR

cutter, 9 ft., w/instruction

1шт.

M805X

BOLT AND NUT

BOLT W/NUT, short guard, 13 for 7 ft., 17 for 9 ft.

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT, long guard, 14 for 7 ft., 18 for 9 ft.

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex., 1 per bolt

1шт.

24

458971R1

BRONZE BUSHING,25.43mm ID x 28.63mm OD x 35.18mm L

BUSHING, knife head

1шт.

25

458972R1

PLUG

knife head

1шт.

26

56692C91

PITMAN

HEAD ASSY, knife, replaces 462378R11 and 458969R11

1шт.

14768R1

RIVET, 5-1/2 x 1 small ov-hd Oval Hd, .211" x 1"

9шт.

27

458941R1

SHIM

inner shoe

1шт.

28

461383R1

CLAMP

CLIP, grass rod

1шт.

29

467455R11

VALVE

SECTION W/RIVETS, smooth heavy triplet end, cr-pltd

1шт.

29

467456R11

KNIFE SECTION

SECTION W/RIVETS, underserrated heavy triplet end, cr-pltd

1шт.

29

467457R11

KNIFE SECTION

SECTION W/RIVETS, smooth regular triplet end, cr-pltd

1шт.

29

467458R11

KNIFE SECTION

SECTION W/RIVETS, underserrated regular triplet end, cr-pltd

1шт.

MB133

RIVET

no. 5-1/2 x 5/8 in. oval-hd cd-pltd, one pound package

2шт.

30

469975R3

GAUGE

guard lip

1шт.

31

489536R1

ROD

grass deflector

1шт.

143245R1

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

1шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

1шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 C-Z hex. lock

1шт.

32

489537R1

CLAMP

grass rod

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

33

489535R1

DEFLECTOR

grass

1шт.

34

489538R1

SUPPORT

grass deflector

1шт.

605449R1

BOLT

3/8 x 3/4 sq-nk crg

4шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 C-Z hex. lock

4шт.

35

M1015

SPRING

grass rod tension

1шт.

18942R1

BOLT,1/2" - 13 x 3", Gr 2

1/2 x 3 C-Z sq-hd mach

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

231-1448

NUT,1/2"-13, GB

1/2-13 znp nylon insert

1шт.

36

489486R1

STRIP

DAMPENER, grass rod

1шт.

37

58600C1

GUARD ASSY.

GUARD, strut, 12 for 7 ft. w/double forged guard, 17 for 9 ft. w/double forged guard

1шт.

38

486452R2

SHIELD

GUARD, inner, 9 ft. w/forged guards only

1шт.

39

58601C1

CLIP

low arch strut, 11 for 7 ft. w/double forged guard, 15 for 9 ft. w/double forged guard

1шт.

40

58602C1

CLIP

high arch strut, 1 for 7 ft. w/double forged guard, 2 for 9 ft. w/double forged guard

1шт.

41

101831C2

CLIP

HOLDER, regular knife, 11 for 7 ft. bar

1шт.

42

101832C2

CLIP

HOLDER, hi-arch knife, 2 for 7 ft. bar

1шт.

43

544553R1

SEALING WASHER

seal

1шт.
