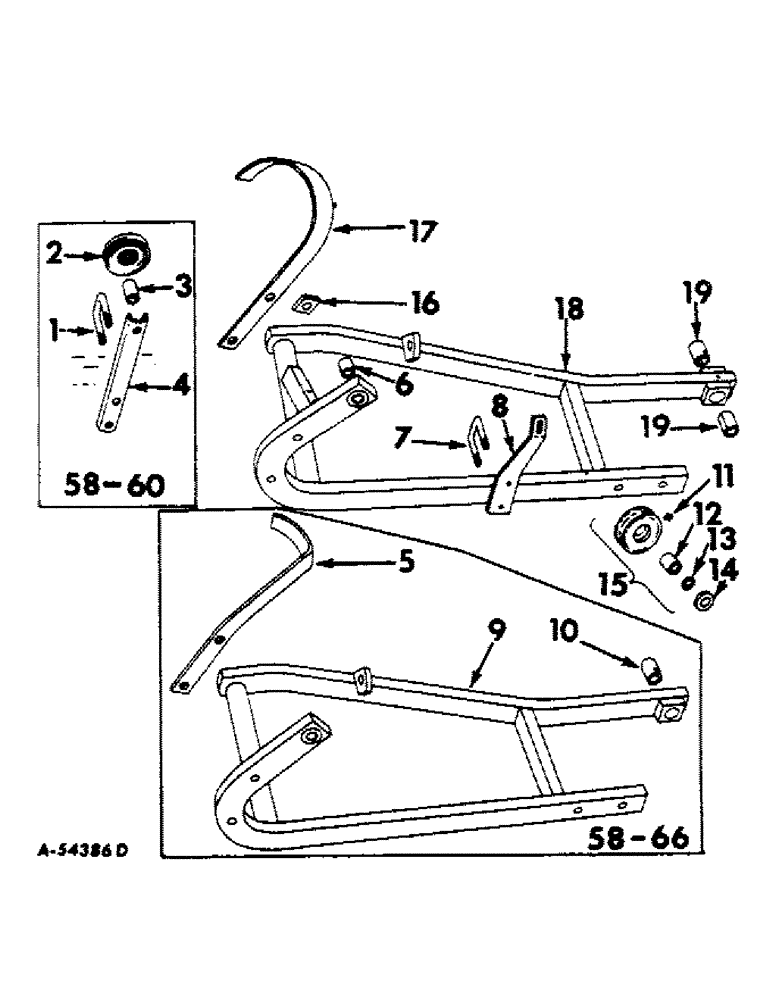

Запчасти Case IH 100 (A-03) - CUTTER BAR SUPPORT, HINGE COUPLING AND IDLER PULLEY

1

B42041

U-BOLT, drive belt idler bracket, 1958-1960

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

458994R91

PULLEY ASSY.

PULLEY ASSEMBLY, drive belt idler, 1958-1960

1шт.

17603R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 pln type 1

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

BA1478

BEARING

SPACER, drive belt idler pipe, 1958-1960

1шт.

4

BRACKET, idler, 1958-1960, discontinued for service

1шт.

5

458976R2

SUPPORT, cutter bar

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2 x 2-3/4 in. cap

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2 x 3-1/2 in. cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

2шт.

6

458901R1

BUSHING

gag and lift lever pivot

1шт.

7

651811R1

BOLT,U, 1/2" - 13 x 2 1/4"

U-BOLT, drive belt idler bracket, 1961 and since

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

464901R2

BRACKET, drive belt idler, 1961 and since

1шт.

17576R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 in. mach

1шт.

114504

NUT, 1/2 in. jam

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga

2шт.

9

458893R92

COUPLING

hinge

1шт.

10

458900R1

SPACER

BUSHING, hinge pin

1шт.

11

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 in. self-tapping lubrication, 1961 and since

1шт.

12

464898R1

BUSHING

BEARING, idler, 1961 and since

1шт.

13

464900R1

THRUST WASHER

thrust, 1961 and since

2шт.

14

464899R1

CUP WASHER

cupped, 1961 and since

2шт.

15

464893R91

ASSEMBLY

IDLER UNIT ASSEMBLY, 1961 and since

1шт.

16

P23245

SPACER

1шт.

17

NOT USED IN THIS APPLICATION

1шт.

18

NOT USED IN THIS APPLICATION

1шт.

19

NOT USED IN THIS APPLICATION

1шт.
