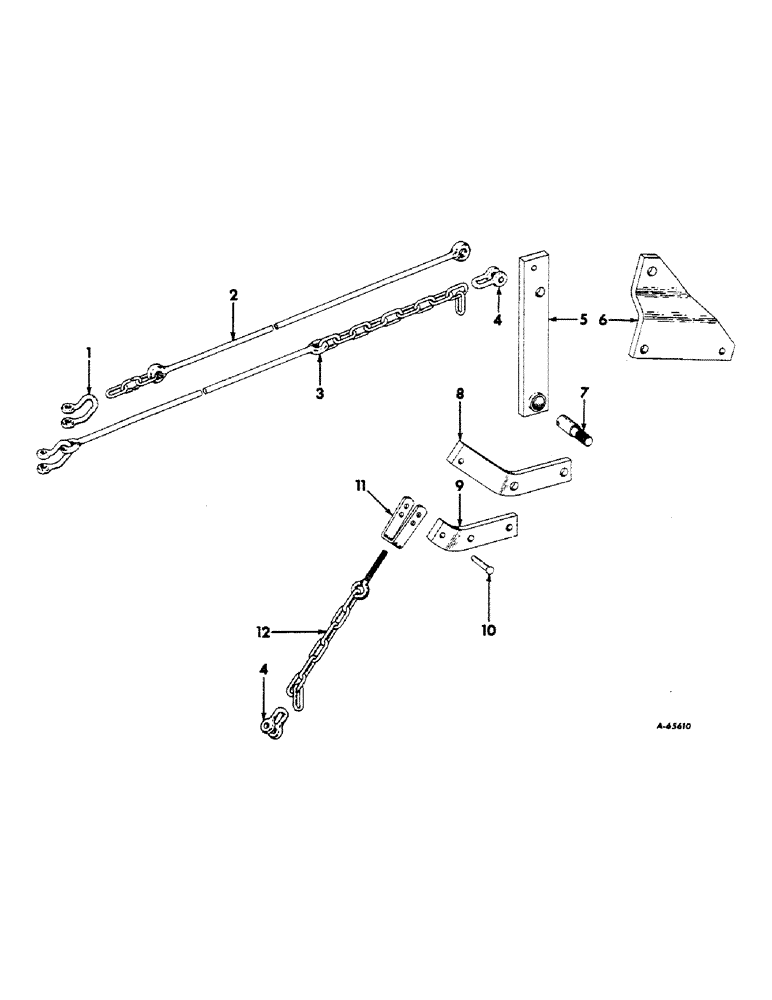

Запчасти Case IH 100 (A-27) - LIFTING ROD
№
Артикул
Название
Примечание
Количество
1
465195R1
CLEVIS, lift, unit B
1шт.
PG141
PIN
1/2 x 2 std hd dld
1шт.
13068R1
PIN,3/16" x 1"
Split (Cotter), , self-opening 3/16" x 1"
1шт.
2
465197R91
ROD, lifting, unit B
1шт.
3
465193R91
ROD, lifting, unit A
1шт.
PG141
PIN
1/2 x 2 in. dld-std-hd
1шт.
13068R1
PIN,3/16" x 1"
Split (Cotter), , self-opening 3/16" x 1"
1шт.
4
455369R2
CLEVIS
lifting chain support, 2 for unit A, unit B
1шт.
NA141
AXLE PIN,1/2" x 1 7/8"
PIN, 1/2 x 1-7/8 in. dld-std-hd
1шт.
13068R1
PIN,3/16" x 1"
Split (Cotter), , self-opening 3/16" x 1"
1шт.
5
465189R11
ARM, lift, unit A
1шт.
6
465192R1
BRACKET, cylinder mounting, unit A
1шт.
17525R1
BOLT
5/8 x 2 in. mach
1шт.
271611
BOLT,Hex, 3/4" - 10 x 2", Gr 5
SCREW, 3/4 x 2 in. cap
1шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
1шт.
102639
NUT,5/8"-11, G5
1шт.
7
465191R1
STUD, lift arm pivot, unit A
1шт.
220083
NUT,1"-8, G5
1 in.
1шт.
13139R1
PIN, 1/4 x 1-3/4 in. self-opening cotter
1шт.
121326
WASHER,1"
LOCK, 1"
1шт.
3857
WASHER, 1-9/32 x 2-1/2 in. x 16 ga
2шт.
8
465198R1
BRACKET, hold-up chain, unit B
1шт.
171609
SCREW, 3/4 x 1-3/4 in. cap
2шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
9
465196R1
BRACKET, hold-up chain, unit A
1шт.
17578R1
BOLT (SPREADER),Hex, 5/8"-11 x 2 1/2", G2
BOLT W/NUT, 5/8 x 2-1/2 in. mach
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
10
NA141
AXLE PIN,1/2" x 1 7/8"
PIN, 1/2 x 1-7/8 in. dld-std-hd
1шт.
130068R1
PIN, 3/16 x 1 in. self-opening cotter
1шт.
11
M22609
CLEVIS
lifting connection
1шт.
PG141
PIN
1/2 x 1-7/8 in. dld-std-hd
1шт.
13068R1
PIN,3/16" x 1"
Split (Cotter), , self-opening 3/16" x 1"
1шт.
12
461229R91
CHAIN W/EYEBOLT, support
1шт.
105608
NUT
1/2 sq type A
1шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, , Unit A, used on bolts on tractor bracket 3/4"
6шт.
615168R1
WASHER
25/32 x 1-1/2 in. x 11 ga, unit A, used on bolts on tractor bracket
6шт.
Выбрано товаров: 37
