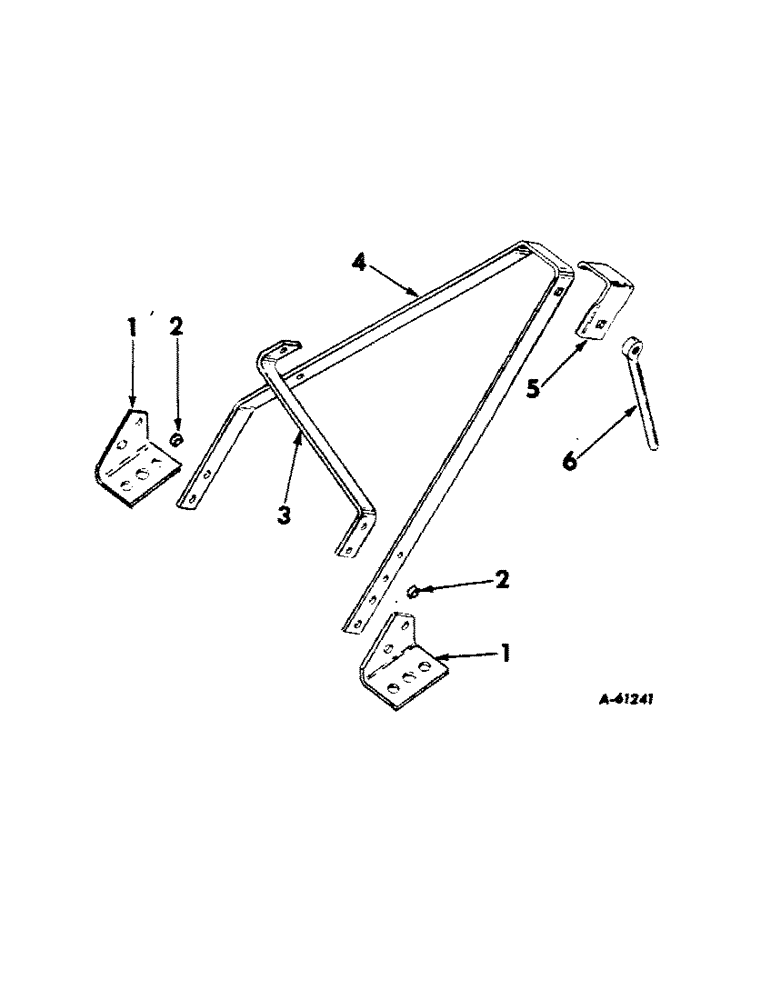

Запчасти Case IH 100 (A-26) - TRANSPORT, FOR 9 FT. CUTTER BAR

1

463186R2

SUPPORT

BRACKET, transport stand

2шт.

350515R1

WASHER

21/32 x 1 in. x 16 ga

2шт.

2

950019R1

SPACER

transport stand

2шт.

3

463187R1

SUPPORT

BRACE, transport stand

1шт.

4

463185R1

STAND

transport

1шт.

NLS

NO LONGER SERVICED

3шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, 1/2 x 1-3/8 in. cap

2шт.

15444R1

BOLT, 1/2 x 1-1/2 in. step

1шт.

9635082

NUT,5/16" - 18, Gr 5

3/8 in.

3шт.

114505

JAM NUT,Jam, 1/2"-13, G5

4шт.

33778A

PIN, 1/2 x 7/8 in. dld-std-hd 1/2" x 7/8"

1шт.

586591R1

COTTER PIN

PIN, quick attachable

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

16038R1

WASHER

17/32 x 1 in. x 11 ga

2шт.

5

463188R1

SUPPORT

CLIP, transport stand

1шт.

6

463189R1

ROD

HANDLE, support

1шт.
