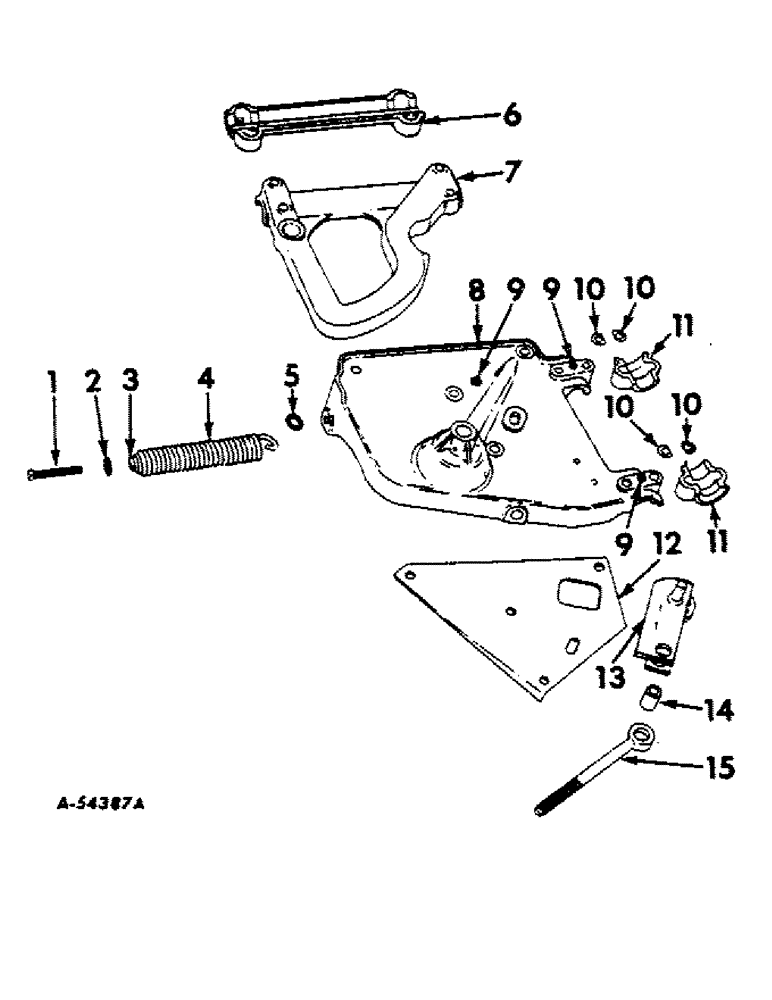

Запчасти Case IH 100 (A-02) - PIVOT FRAME, BREAKAWAY ARM AND LATCH SUPPORT PLATE

1

570640R1

BOLT (SPREADER),Adj, Hex, 1/2" - 13 x 4", Full Thd

BOLT, 1/2 x 4 in. special mach, spring adjusting

1шт.

102637

NUT,1/2"-13, G5

1шт.

2

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

3

M1425

PLUG

spring

1шт.

4

PO199A

SPRING

breakaway latch, 25 coils

1шт.

5

PO12898

WASHER

29/32 x 1-1/2 x 11 ga, used on 458902R91

2шт.

6

458892R1

CAP, breakaway arm

1шт.

102639

NUT,5/8"-11, G5

4шт.

271573

BRACKET

SCREW, 5/8 x 4-3/4 in. cap

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

458891R2

ARM

breakaway

1шт.

8

458888R2

FRAME

pivot

1шт.

17629R1

BOLT,Hex, 5/8" - 11 x 3"

5/8 x 3 in. mach

4шт.

17651R1

BOLT,Hex, 5/8" - 11 x 3 1/4"

BOOLT, 5/8 x 3-1/4 in. mach

1шт.

102639

NUT,5/8"-11, G5

5шт.

271571

SEALING RING COLLAR

5/8 x 4-1/4 in. cap

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

9шт.

575810R1

WASHER

21/32 x 1-1/2 x 11 ga, use on bolt 5/8 x 3-1/4 in.

3шт.

9

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

3шт.

10

458890R1

SHIM

pivot frame, or as required

32шт.

11

458889R1

CAP

pivot frame

2шт.

12

458906R2

PLATE

latch support

1шт.

13

462764R93

PULLEY

ROLLER, breakaway latch, replaces 458902R91

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

21714R1

WASHER

.906 x 1.500 x .105

2шт.

14

459396R2

BUSHING

latch strap pivot

1шт.

15

458907R1

BOLT

EYEBOLT, lead adjustment

1шт.

220081

NUT

3/4 hex.

2шт.
