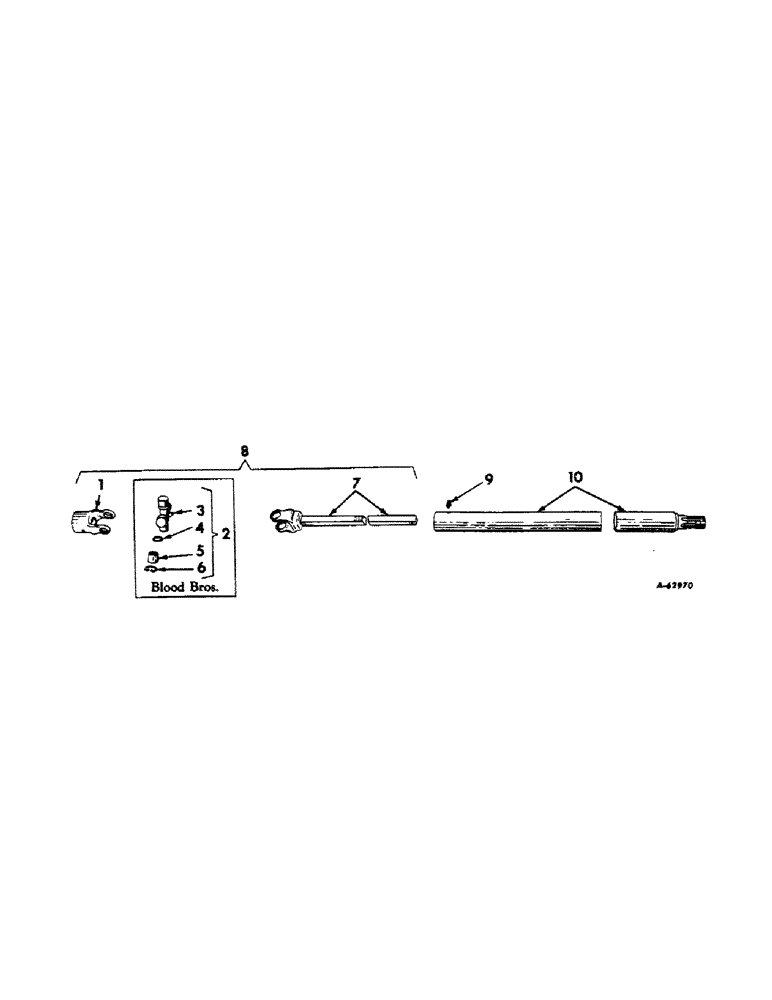

Запчасти Case IH 100 (A-25) - POWER DRIVE ATTACHMENT

1

462845R1

YOKE

rear, 1-1/8 in. spline

1шт.

Q1302

HEADED PIN,5/16" x 2 1/4"

PIN, 5/16 x 2-1/4 in. dld-std-hd

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

2

659262R91

U-JOINT SPIDER

CENTER CROSS ASSEMBLY

1шт.

3

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-65 degree elbow lubrication

1шт.

4

661656R1

OIL SEAL, cork

4шт.

5

661655R91

BEARING ASSY,0.59375" ID x 1.0625" OD x 0.4375"

ASSEMBLY, needle

4шт.

6

661657R1

RING

SNAP RING

1шт.

7

461369R1

YOKE W/SHAFT

1шт.

8

464960R91

JOINT ASSEMBLY, rear single universal

1шт.

9

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4 in. straight lubrication

1шт.

10

464961R91

SHAFT, tubular drive

1шт.
