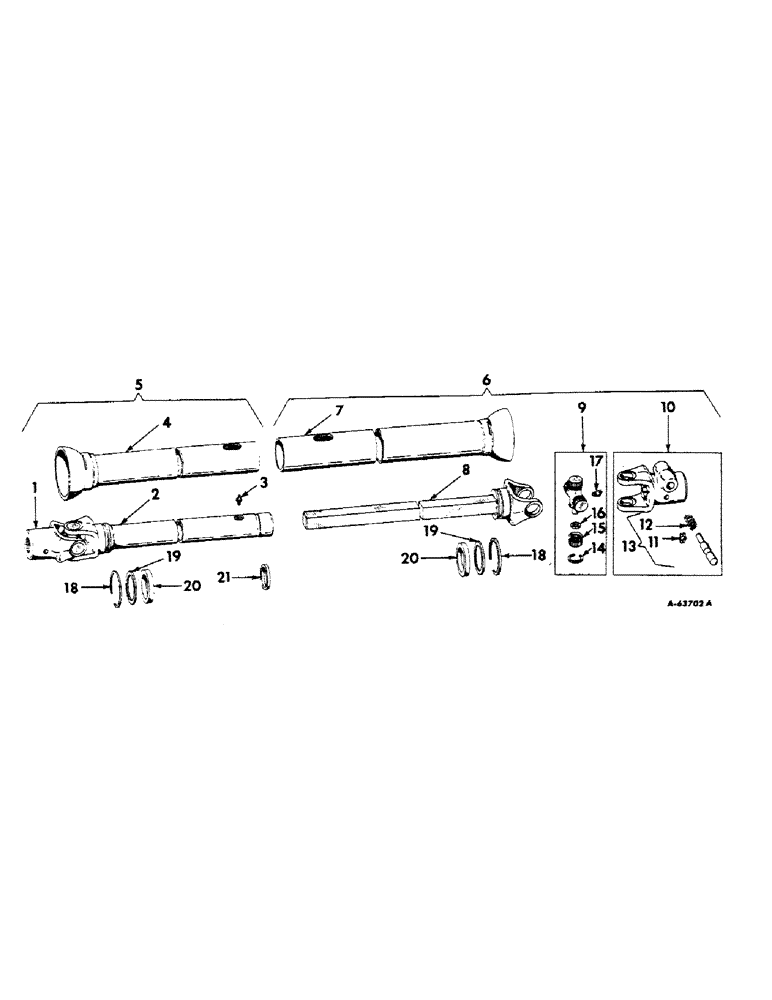

Запчасти Case IH 100 (A-24) - POWER DRIVE ATTACHMENT

1

460902R1

YOKE

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-UNF jam

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, 1/2 x 1-3/16 in. sq-hd cup-pt set

1шт.

2

464918R91

TUBE

YOKE W/SLEEVE ASSEMBLY, tube

1шт.

3

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4 in. straight lubrication

1шт.

4

464919R1

SHIELD

inner

1шт.

5

464917R91

JOINT ASSEMBLY, rear half of double universal, implement end

1шт.

6

464914R92

JOINT ASSEMBLY, front half of double universal, tractor end

1шт.

7

464916R1

SHIELD

outer

1шт.

8

464915R1

YOKE

W/SHAFT

1шт.

9

659262R91

U-JOINT SPIDER

CENTER CROSS ASSEMBLY

1шт.

10

487083R91

YOKE

ASSEMBLY, quick detachable, 1-3/8 in. spline, for tractors w/540 RPM-PTO, will work for 459463R91

1шт.

10

613431R91

YOKE ASSEMBLY, quick detachable, 1-3/8 in. spline, for tractors w/1000 RPM-PTO

1шт.

11

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, locking pin

1шт.

12

455347R1

VALVE SPRING

SPRING, locking pin, for tractors w/540 RPM-PTO

1шт.

12

587479R1

SPRING

locking pin, for tractors w/1000 RPM-PTO

1шт.

13

455346R21

PIN

W/SPRING AND X-WASHER, locking, for tractors w/540 RPM-PTO

1шт.

13

631976R91

PIN

W/SPRING AND X-WASHER, locking, for tractors w/ 1000 RPM-PTO

1шт.

14

661657R1

RING

SNAP RING

8шт.

15

661655R91

BEARING ASSY,0.59375" ID x 1.0625" OD x 0.4375"

ASSEMBLY, needle

8шт.

16

661656R1

OIL SEAL, cork

8шт.

17

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in., 65 degree elbow lubrication

2шт.

18

613436R1

CLAMP

RING, shield retaining

2шт.

19

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.

20

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

2шт.

21

613439R1

BRACKET

SUPPORT, nylon

1шт.
