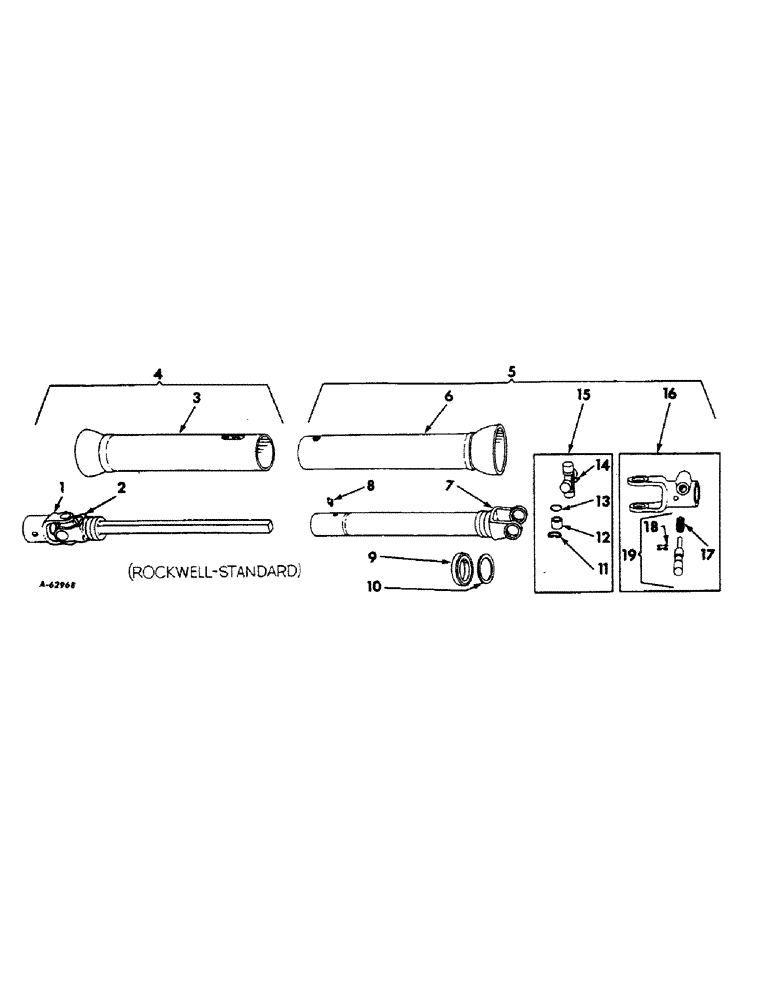

Запчасти Case IH 100 (A-22) - POWER DRIVE ATTACHMENT, 1958, 1962

1

462845R1

YOKE

rear, 1-1/8 in. splined

1шт.

Q1302

HEADED PIN,5/16" x 2 1/4"

PIN, 5/16 x 2-1/4 in. dld-std-hd

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

2

462846R1

YOKE W/SHAFT

1шт.

3

462847R1

SHIELD, inner rear

1шт.

4

462842R91

JOINT ASSEMBLY, rear half of double universal

1шт.

5

462841R91

JOINT ASSEMBLY, front half of double universal

1шт.

6

462844R1

SHIELD, outer front

1шт.

7

462843R1

YOKE W/TUBE

1шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 in., UNF straight lubrication

1шт.

9

461346R1

BEARING

nylon

2шт.

10

662589R1

THRUST WASHER

thrust

2шт.

11

661657R1

RING

SNAP RING

8шт.

12

661655R91

BEARING ASSY,0.59375" ID x 1.0625" OD x 0.4375"

ASSEMBLY, needle

4шт.

13

661656R1

OIL SEAL, cork

8шт.

14

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8 in., 30 degree elbow lubrication

2шт.

15

659262R91

U-JOINT SPIDER

CENTER CROSS ASSEMBLY

2шт.

16

459463R91

YOKE

ASSEMBLY, quick detachable, 1-3/8 in. spline

1шт.

17

455347R1

VALVE SPRING

SPRING, locking pin

1шт.

18

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, locking pin

1шт.

19

455346R21

PIN

W/SPRING AND X-WASHER, locking

1шт.
