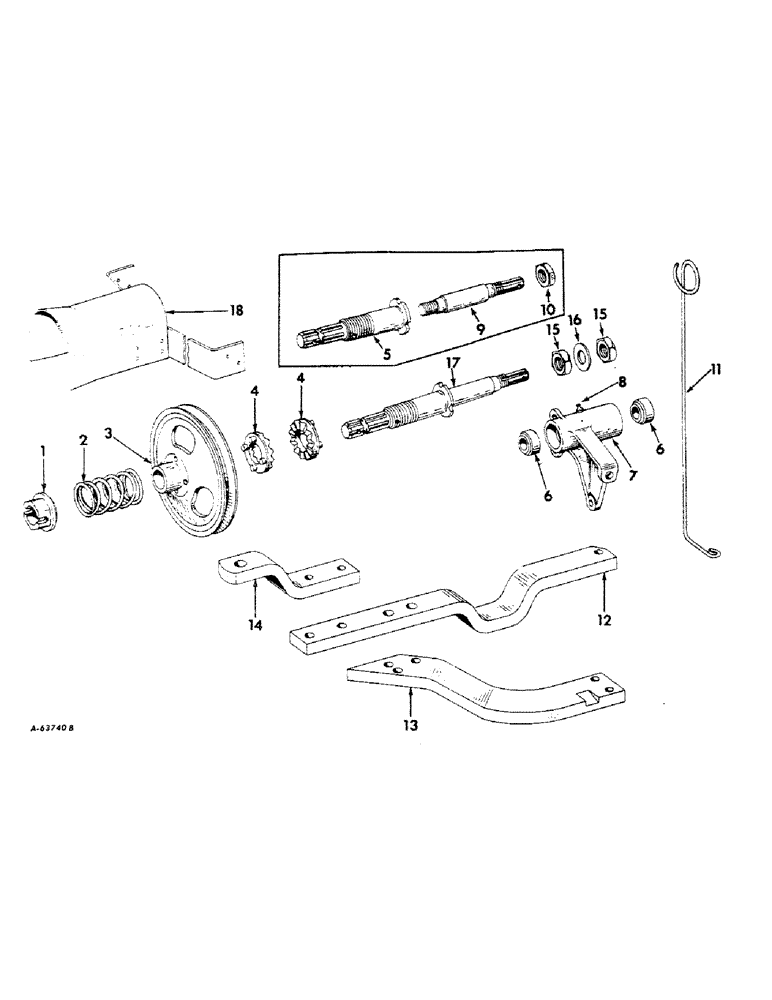

Запчасти Case IH 100 (A-20) - HITCH PARTS ATTACHMENTS

1

M2574

NUT

slip clutch

1шт.

2

M32816

SPRING

slip clutch

1шт.

3

M2571

PULLEY

drive slip clutch type, for tractors w/540 RPM-PTO

1шт.

3

473527R1

PULLEY, drive slip clutch type, for tractors w/1000 RPM-PTO

1шт.

4

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

2шт.

5

462839R11

SHAFT ASSEMBLY, drive extension, 1958, 1962, order shaft 471945R11, washer 471946R1 and two nut 133613H

1шт.

455183R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

1шт.

6

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL AND CUP, roller cone

2шт.

7

462836R2

HOUSING

drive shaft

1шт.

Q399

WASHER

11/32 x 1 in. x 16 ga

2шт.

8

13019R1

FITTING

1/8 in. straight vented lubrication

1шт.

9

462837R1

SHAFT, drive, 1958-1962, order shaft 471945R11, washer 471946R1 and two nut 133613H

1шт.

PO27165

WASHER, 1-9/32 x 1-23/32 x 1/8 in.

1шт.

466000R1

WASHER, 1.156 x 1.750 x 3/16 in.

1шт.

10

462838R1

NUT, stake, 1958-1962

1шт.

11

464962R1

SUPPORT

hydraulic hose

1шт.

17815R1

BOLT W/NUT, 5/8 x 5 in. mach

1шт.

10620P

WASHER

21/32 x 1-1/2 in. x 16 ga

1шт.

12

464958R1

DRAWBAR

1шт.

144423H

LOCK NUT,5/8" - 18, GC

NUT, LOCK, , Stop 5/8"-18, GC

1шт.

271757

SPARE PART

SCREW, 5/8-UNF x 4-1/4 C-Z cap

1шт.

13

462835R1

SUPPORT, drawbar

1шт.

102639

NUT,5/8"-11, G5

2шт.

144424H

LOCK NUT,3/4"-16, GB

NUT, 3/4-UNF C-Z stop

1шт.

271797

BOLT

SCREW, 3/4-UNF x 3 in. C-Z cap

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

SCREW, 5/8 x 5 in. C-Z cap, Course Threads

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

464959R1

BRACKET, drawbar

1шт.

144423H

LOCK NUT,5/8" - 18, GC

NUT, LOCK, , Stop 5/8"-18, GC

2шт.

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

SCREW, 5/8-UNF x 3 in. C-Z cap

2шт.

15

133613H

NUT

1-1/4-12 worm, 1963 and since

2шт.

16

471946R1

WASHER

special, 1963 and since

1шт.

17

471945R11

SHAFT

ASSY, drive, 1963 and since, for tractors w/540 RPM-PTO

1шт.

17

473526R11

SHAFT, drive, for tractors w/1000 RPM-PTO

1шт.

455183R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

1шт.

18

465260R11

SHIELD ASSY, hay conditioner drive, for tractors w/540 RPM-PTO

1шт.

18

473532R91

SHIELD ASSY, hay conditioner drive, for tractors w/1000 RPM-PTO

1шт.

SCREW, 1/4 x 3/8 in. C-Z cap

4шт.

WASHER, 1/4 in. C-Z lock

4шт.
