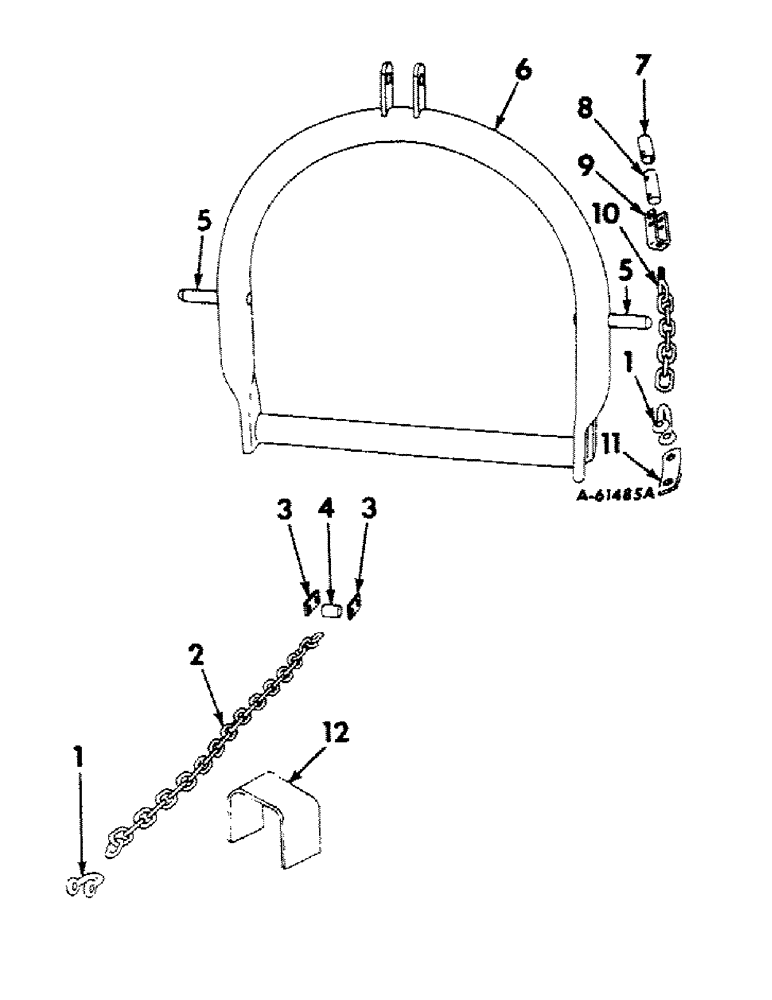

Запчасти Case IH 100 (A-18) - THREE POINT FAST-HITCH

1

455369R2

CLEVIS

lifting chain support

2шт.

NA141

AXLE PIN,1/2" x 1 7/8"

PIN, 1/2 x 1-7/8 in. dld-std-hd

1шт.

PG141

PIN

1/2 x 2 in. dld-std-hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

2

462746R1

CHAIN, drawbar support, 26 links straight coil

1шт.

3

459044R1

BAR

STRAP, lifting chain

2шт.

17576R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 in. mach

1шт.

NA141

AXLE PIN,1/2" x 1 7/8"

PIN, 1/2 x 1-7/8 in. dld-std-hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

459064R1

SPACER

lifting chain strap

1шт.

5

460857R1

PIN

coupling

2шт.

6

462745R91

DRAWBAR ASSEMBLY

1шт.

7

459043R1

SPACER

SLEEVE, stud support

1шт.

8

459042R1

PIN

STUD, support

1шт.

520175R1

CLIP

PIN, quick attachable cotter

1шт.

9

M22609

CLEVIS

lifting connection

1шт.

PG141

PIN

1/2 x 2 dld-std-hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

461229R91

CHAIN ASSEMBLY, support, 7 links high tensile straight

1шт.

105608

NUT

1/2 in. sq

2шт.

11

461223R1

STRAP, support chain

1шт.

17771R1

BOLT

3/4 x 4-1/2 in. mach

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

220081

NUT

3/4-10 hex.

1шт.

12

458983R1

SHIELD, rear knuckle drive

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 hex-hd mach

1шт.

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
